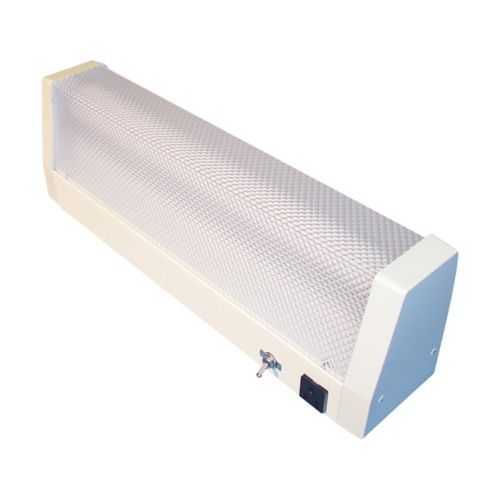

Eaton FN217L Berth/Mirror Light - NEC/CEC, 2-lamp, 17W
Part Number: FN217L
Quick Summary
The Eaton FN217L Berth/Mirror Light delivers reliable interior illumination for marine applications. Engineers often face tight spaces and retrofit challenges on vessels, making quick, dependable lighting essential. This fixture aligns with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, supporting regulatory compliance and safe operation aboard ships. With a wall-mount design, two-lamp 17W T8 configuration and lamp included, it simplifies installation and ensures consistent shipboard performance, while its aluminum housing and acrylic lens resist harsh marine environments. This combination delivers operational efficiency, reduced maintenance, and flexible use across berths and mirror areas.
Product Information
Extended Description
FN217L Eaton: Eaton Crouse-Hinds series Pauluhn FN marine interior, 50/60 Hz, Acrylic lens, T8, Aluminum, Wall mount, 2-lamp, Lamp included, Berth/mirror type, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn FN marine interior
Catalog Number
FN217L
UPC
662276444430
Product Length/Depth
24.75 in
Product Height
6 in
Product Width
4.25 in
Product Weight
5.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth/mirror
Number of lamps
2-lamp
Wattage
17W
Light type
T8
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Special features
Lamp included
Crouse-Hinds series Pauluhn FN Marine Interior Berth and Mirror Lights catalog page
Eaton Specification Sheet - FN217L
Two-lamp, 17W T8 configuration is designed for efficiency and reliable performance. The reduced wattage delivers energy savings and lower heat load in confined marine spaces, improving overall system efficiency. It is ideal for berth and mirror lighting on vessels where long duty cycles are common. Universal input range of 120-277 Vac at 50/60 Hz reduces inventory and simplifies integration with existing shipboard electrical systems. The broad voltage tolerance minimizes rewiring or ballast changes during retrofits, cutting installation costs. This makes FN217L a practical choice for mixed-power fleets and yard retrofits. Aluminum housing with an acrylic lens provides corrosion resistance and durability in demanding marine environments. This combination resists salt spray, vibrations, and temperature swings, extending service life and reducing maintenance intervals. The wall-mount design supports flexible installation around berths, mirrors, and cabin décor. Lamp included reduces downtime during upgrades and replacements, while simple wall mounting speeds installation and minimizes vessel downtime. The robust Berth/Mirror type lighting is well suited for crew spaces and compact interiors, ensuring consistent illumination without bulky fixtures. NEC/CEC compliance and suitability for Ordinary/Non-Hazardous Locations deliver regulatory alignment and safe operation in crew areas, helping with audits and long-term reliability of shipboard lighting programs.
Get a Quick Quote for a Eaton FN217L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FN217L?
Enquire Now
FAQs
FN217L is a wall-mount fixture with a two-lamp 17W T8 configuration designed for marine interiors. Ensure proper wall space near berths or mirrors, provide clean 120-277 Vac supply, and secure the aluminum housing to a sturdy mounting surface. The included lamp reduces downtime, but verify distance to mounting area for adequate ventilation and easy maintenance access.
FN217L meets NEC/CEC standards and is specified for Ordinary/Non-Hazardous Locations. This ensures regulatory compliance for shipboard installations and safe operation in crew areas. Always confirm local regulations and vessel class requirements when planning a retrofit or new installation.
Key specs include 2-lamp configuration, 17W total power, T8 light type, 120-277 Vac voltage, 50/60 Hz frequency, acrylic lens, and aluminum housing. The light is designed for wall mounting and ships with the lamp included, delivering efficient marine interior lighting with broad electrical compatibility.
Yes. FN217L is purpose-built for berth and mirror lighting in marine interiors. Its compact 24.75 in length, 4.25 in width, and 6 in height optimize space while providing ample illumination. The rugged aluminum housing and acrylic lens withstand marine conditions, making it ideal for confined cabin areas.
The lamp-included design reduces installation downtime and simplifies maintenance planning. Its 17W energy profile lowers operating costs compared with higher-wattage fixtures, while the durable housing minimizes corrosion-related maintenance in salt-air environments. These factors collectively improve lifecycle ROI for shipboard lighting programs.
