Eaton FN220 Berth Light - Ordinary Non-Hazardous
Part Number: FN220
Quick Summary

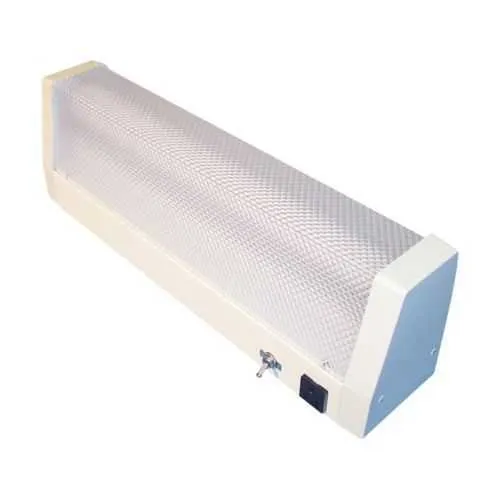

FN220 is a marine interior berth/mirror light that provides reliable illumination for ship berths. Engineers often struggle with space constraints, corrosion risk, and wiring reliability in confined marine interiors. This fixture aligns with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, offering a rugged aluminum housing and acrylic lens. With a wall-mount design and a two-lamp, 20W, 120 VAC, 60 Hz configuration, it reduces maintenance downtime and supports compliant, shipboard lighting programs. In addition, it complements standard berthing areas and mirror lighting, delivering consistent performance in demanding environments.
Product Information
Extended Description
FN220 Eaton: Eaton Crouse-Hinds series Pauluhn FN marine interior, 60 Hz, Acrylic lens, T12, Aluminum, Wall mount, 2-lamp, Berth/mirror type, 120 Vac, 20W
Product Name
Eaton Crouse-Hinds series Pauluhn FN marine interior
Catalog Number
FN220
UPC
662276395565
Product Length/Depth
24.75 in
Product Height
6 in
Product Width
4.25 in
Product Weight
7.29 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Berth/mirror
Number of lamps
2-lamp
Wattage
20W
Light type
T12
Mounting Method
Wall
Material
Aluminum
Lens material
Acrylic
Voltage rating
120 Vac
Frequency rating
60 Hz
Eaton Crouse-Hinds FN220 3D drawing
Crouse-Hinds series Pauluhn FN Marine Interior Berth and Mirror Lights catalog page
Eaton Specification Sheet - FN220
Feature: Marine interior Berth/Mirror lighting construction. Benefit: Delivers durable, corrosion-resistant performance in harsh shipboard environments, reducing replacement cycles and downtime. Application: Ideal for berth and mirror zones on vessels, where reliable lighting supports safety and inspection routines. Feature: Wall-mount mounting method. Benefit: Simplifies installation in confined crew spaces, enabling faster commissioning and easier retrofits. Application: Shipboard corridors, cabins, and bunk areas requiring secure, space-conscious mounting. Feature: 2-lamp, 20W configuration. Benefit: Balanced illumination with manageable energy use, lowering ongoing power costs while maintaining light quality. Application: Interior lighting schemes in ordinary locations that demand dependable brightness without overconsumption. Feature: Voltage and frequency compatibility. Benefit: 120 VAC, 60 Hz operation aligns with common marine electrical systems, reducing integration risk. Application: Fresh or refurbished vessels using standard North American power supplies. Feature: Lens and housing materials. Benefit: Acrylic lens and aluminum body resist moisture and impact, preserving light output and longevity. Application: Harsh marine interiors where moisture ingress and vibration are concerns. Feature: NEC/CEC compliance and area classification. Benefit: Ensures regulatory conformity and safe operation in Ordinary/Non-Hazardous locations, supporting commissioning and audits. Application: Compliance-driven projects in passenger and crew areas aboard commercial or work vessels.
Get a Quick Quote for a Eaton FN220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FN220?
Enquire Now
FAQs
FN220 uses a wall-mounting configuration designed for berth and mirror areas in marine interiors. Installation is straightforward for crew spaces; ensure a suitable wall surface, proper enclosure access, and a 120 VAC, 60 Hz supply. This approach minimizes disruption during retrofit projects and enables rapid commissioning in new builds.
FN220 operates at 120 VAC and 60 Hz with two 20W lamps configured as a 2-lamp, T12 arrangement. The fixture provides 40W total lamp power with an acrylic lens and aluminum housing. It is compatible with standard shipboard electrical systems and supports regular maintenance cycles with accessible lamp components.
Yes, FN220 is designed for marine interiors and is classified for Ordinary/Non-Hazardous Locations. It complies with NEC/CEC standards, offering a durable aluminum enclosure and acrylic lens to withstand shipboard conditions, vibrations, and humidity, while maintaining safe operation in non-hazardous areas.
With a two-lamp 20W configuration and a robust aluminum housing, FN220 favors low-maintenance operation. Plan for periodic lamp replacement, inspect for corrosion on the enclosure, and verify mounting integrity after rough sea conditions. The design supports quick lamp access and straightforward servicing to minimize downtime.
FN220 delivers predictable energy use (40W total) and durable construction that reduces maintenance frequency and replacement costs in harsh marine environments. Its NEC/CEC compliance and ordinary location rating simplify regulatory audits, helping fleets stay compliant while reducing downtime and maintenance labor over the asset lifecycle.
