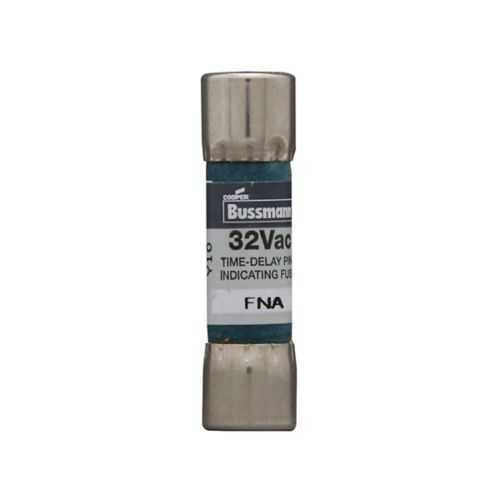

Eaton FNA-30 Fuse - 1kAIC
Part Number: FNA-30
Quick Summary
The Eaton FNA fuse provides reliable overcurrent protection for inductive and electronic load circuits in industrial control panels. Engineers often contend with nuisance trips and downtime when safeguarding motors, drives, and sensors in compact control enclosures, especially during startup surges. This device is CE Marked, supporting compliance with European safety standards, and is designed as a time-delay, dual-element fuse to tolerate brief surges while preserving protection. With a 30 A rating and a 1 kAIC interrupt rating at 32 Vac, it delivers dependable protection without compromising performance. The compact form factor and silver-plated pins simplify installation and panel design, enabling streamlined maintenance budgeting and improved overall equipment reliability.
Product Information
Extended Description
FNA-30 Eaton: Eaton Bussmann series FNA fuse, Time-delay fuse, Inductive load circuits, Electronic circuits, 30 A, Dual, Non-indicating, 1 kAIC at 32 Vac, Silver-plated pin, Standard, 32 V
Product Name
Eaton Bussmann series FNA fuse
Catalog Number
FNA-30
UPC
051712713696
EAN
5027590427302
Product Length/Depth
0.81 in
Product Height
1.52 in
Product Width
0.4 in
Product Weight
0.3 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
30 A
Interrupt rating
1 kAIC at 32 Vac
Voltage rating
32 V
Material
Silver-plated pin
Number of elements
Dual
Packaging type
Standard
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FNA-30
FNA-30~FUSETRON DUAL-ELEMENT INDICATING
Datasheet - FNQ-30
Time-delay capability with a dual-element design lets the FNA-30 tolerate startup surges and cycling without sacrificing protection for downstream circuitry. Business impact: fewer nuisance trips, reduced maintenance interruptions, and extended equipment life across manufacturing lines. Application: ideal for inductive and electronic loads in industrial control panels, motor starters, and power supplies where startup transients are common. The fuse also provides robust short-circuit protection with a 30 A rating and 1 kAIC interrupt capability at 32 Vac, enabling safe operation of low-voltage circuits while preserving process uptime. This translates to lower spare-part consumption and predictable protection in control environments. Silver-plated pins ensure reliable conductivity in vibration-prone installations, while the dual-element construction supports repeated overload cycling without premature failure. Packaging remains Standard, and the non-indicating body reduces visual signaling complexity during panel commissioning. These features collectively support easier maintenance, faster replacements, and consistent protection in Bussmann series ecosystems. CE Marked compliance further reinforces safety and regulatory alignment in European facilities, enhancing vendor credibility and simplifying audits. Overall, this fuse delivers a compact, reliable, and cost-effective solution for motor drivers, relays, and distributed control systems in modern factories.
Get a Quick Quote for a Eaton FNA-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNA-30?
Enquire Now
FAQs
Yes. The FNA-30 is specified for 32 V operation and features a dual-element, time-delay design that tolerates short surges typical of inductive loads. Its 30 A rating with a 1 kAIC interrupt capability provides robust protection while maintaining circuit continuity during normal operation, making it suitable for motor drives, relays, and control panels.
The device offers a 30 A amperage rating, a 32 V voltage rating, and an interrupt rating of 1 kAIC at 32 Vac. It uses a time-delay, dual-element construction to manage startup inrush and cycling, with silver-plated pins for reliable connections in vibration-prone installations. It is CE Marked for European safety compliance.
Yes. The FNA-30 is designed for inductive loads and motor starters where startup surges are common. Its time-delay feature reduces nuisance trips, while its 1 kAIC rating provides solid short-circuit protection. The compact form factor and standard packaging facilitate retrofits and panel upgrades in existing systems.
The FNA-30 carries CE Marking, indicating compliance with European safety standards. This helps meet regulatory expectations for electrical protection components used in EU facilities and supports smoother audits and certifications when installing protection devices in European panels.
By reducing nuisance trips and enabling longer, more reliable cycling, the FNA-30 lowers downtime and maintenance costs. Its standard packaging simplifies stocking and replacements, while durable materials and a compact footprint improve installation efficiency, contributing to a lower total cost of ownership for panel assemblies and automation projects.
