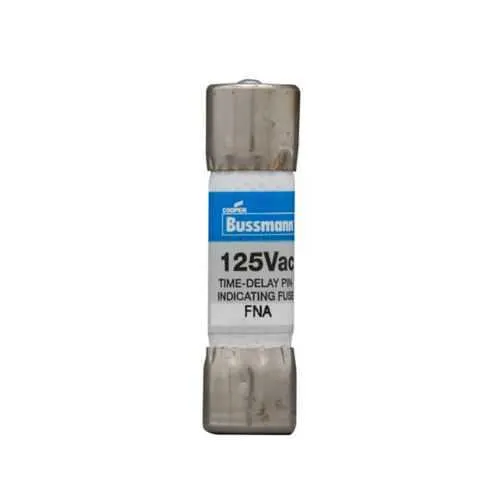

Eaton FNA-5 Fuse - 200 kAIC at 250 Vac
Part Number: FNA-5
Quick Summary
The Eaton FNA-5 fuse is a time-delay protection device for inductive and electronic circuits in industrial control panels. It addresses nuisance trips and cycling that plague motor starters and solenoid circuits, delivering reliable protection without sacrificing performance. CE Marked for EU safety compliance, the dual-element design supports robust overload handling and cycling, with high interrupt ratings of 200 kAIC at 250 Vac and 10 kAIC at 125 Vac. For OEMs and integrators, this compact, ferrule-end fuse delivers consistent protection in European and global installations, while offering a clear path to compliant electrical protection in automation environments.
Product Information
Extended Description
FNA-5 Eaton: Eaton Bussmann series FNA fuse, Time-delay fuse, Inductive load circuits, Electronic circuits, 5 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac, 200 kAIC at 250 Vac, Silver-plated pin, Standard, 250 V
Product Name
Eaton Bussmann series FNA fuse
Catalog Number
FNA-5
UPC
051712713580
EAN
5027590019989
Product Length/Depth
0.37 in
Product Height
1.46 in
Product Width
0.37 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
5 A
Interrupt rating
200 kAIC at 250 Vac 10 kAIC at 125 Vac
Voltage rating
250 V
Material
Silver-plated pin
Number of elements
Dual
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FNA-5
FNA-5~FUSETRON DUAL-ELEMENT INDICATING
Datasheet - FNQ-30
Feature: Time-delay, dual-element design. Business Impact: Reduces nuisance trips on inductive loads and minimizes voltage dips during startup. Application: Suitable for motor starters, solenoids, and electronic control circuits in automation panels. Feature: 5 A current rating. Business Impact: Precise protection that prevents fuse nuisance while guarding critical components. Application: Control circuits and small motor control applications. Feature: High interrupt ratings (200 kAIC at 250 Vac; 10 kAIC at 125 Vac). Business Impact: Enhanced fault-current protection for feeders and high-inrush lines, reducing component damage. Application: Industrial power distribution and machine protection. Feature: Ferrule-end connections with silver-plated pins. Business Impact: Quick, reliable wiring and durable contact resistance in harsh environments. Application: Panel wiring with standard ferrule terminations. Feature: Non-indicating, standard packaging. Business Impact: Simplified panel layout and maintenance with minimal indicator clutter while preserving clear fault tracing. Application: Factory automation and control cabinets. Feature: Special features—Superior overload and cycling capabilities. Business Impact: Longer fuse life under cycling loads and improved process uptime. Application: Continuous-duty environments with frequent load changes. Feature: Compliances CE Marked. Business Impact: Streamlined procurement for EU regulations and international compliance. Application: European installations and multinational facilities.
