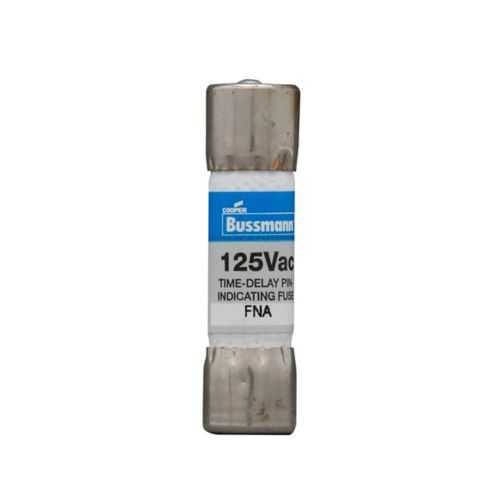

Eaton FNA-7 Fuse - 10 kAIC at 125 Vac CE Marked
Part Number: FNA-7
Quick Summary
The Eaton FNA-7 fuse is a time-delay protection device designed for inductive and electronic circuits in industrial control panels. It helps minimize nuisance trips and downtime during motor start-ups and rapid cycling, improving overall equipment reliability. CE Marked compliance and the FNA family’s proven overload and cycling capabilities support safe, compliant operation in European and global installations. This fuse design offers seamless compatibility with Bussmann series products and standard ferrule-end terminations, delivering reliable protection while simplifying wiring and field service. In short, it combines robust protection with straightforward installation for demanding automation environments.
Product Information
Extended Description
FNA-7 Eaton: Eaton Bussmann series FNA fuse, Time-delay fuse, Inductive load circuits, Electronic circuits, 7 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac, Silver-plated pin, Standard, 125 V
Product Name
Eaton Bussmann series FNA fuse
Catalog Number
FNA-7
UPC
051712713627
EAN
5027590060134
Product Length/Depth
0.37 in
Product Height
1.46 in
Product Width
0.37 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
7 A
Interrupt rating
10 kAIC at 125 Vac
Voltage rating
125 V
Material
Silver-plated pin
Number of elements
Dual
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FNA-7
FNA-7~FUSETRON DUAL-ELEMENT INDICATING
Datasheet - FNQ-30
Feature: Time-delay design protects inductive loads during motor start-ups and cycling. Business Impact: Reduces nuisance trips, extending equipment life and lowering maintenance costs. Application: Control panels, conveyor drives, and relays where inrush is common. Feature: Dual-element construction with a 10 kAIC interrupt rating at 125 V. Business Impact: High surge tolerance enables safer shutdowns during short-circuit events, minimizing collateral damage. Application: Systems with motors and inductive loads in harsh industrial environments. Feature: 7 A amperage rating with 125 V supply and ferrule end x ferrule end connections. Business Impact: Clear, robust protection for medium-current circuits; easy installation with reliable ferrule-term connections. Application: Panel boards, power distribution blocks, and equipment chassis. Feature: Silver-plated pins and standard packaging. Business Impact: Improved conductivity, resistance to wear, and faster field assembly with stockable, standard parts. Application: New builds and retrofit projects where time-to-market matters. Feature: Non-indicating fuse indicator. Business Impact: Reduces panel clutter and cost, while allowing external diagnostics or remote monitoring setups to determine status. Application: Environments requiring clean layouts or integrated monitoring solutions. Feature: Special features include superior overload and cycling capabilities. Business Impact: Enhanced reliability under fluctuating loads and frequent switching, supporting longer equipment life and predictable performance. Application: Heavy-duty industrial controls and automation systems.
Get a Quick Quote for a Eaton FNA-7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNA-7?
Enquire Now
FAQs
Install the FNA-7 with ferrule-end terminations for a secure, vibration-resistant connection. Verify 125 V operating supply and 7 A rating, then insert into the appropriate slot or fuse holder. Tighten ferrule terminals to specification, and use standard wiring practices. For monitoring, consider external indicators since the device is non-indicating.
The FNA-7 features a time-delay, dual-element design that tolerates motor inrush and rapid cycling without nuisance trips. Its 10 kAIC interrupt rating at 125 V provides robust short-circuit protection, while the 7 A rating suits medium-current inductive circuits found in control panels and equipment starters.
Yes. The 7 A rating, 125 V operation, and time-delay characteristic make it well-suited for motor starters and small motors in control panels. The high interrupt rating helps withstand inductive surges, reducing counter-trips, while Ferrule-end connections streamline panel wiring and retrofit projects.
The FNA-7 is CE Marked, indicating conformity with European safety standards. Additional certification details and compliance data are available in Eaton’s datasheets and the Bussmann catalog, which include the full range of electrical protection and circuit-control features for this fuse family.
Because the fuse is non-indicating, plan for periodic electrical field checks or remote monitoring to verify status. The time-delay dual-element design reduces nuisance trips, lowering maintenance costs and downtime. Standard ferrule-term connections simplify replacements, supporting lower total cost of ownership in ongoing protection of automation assets.
