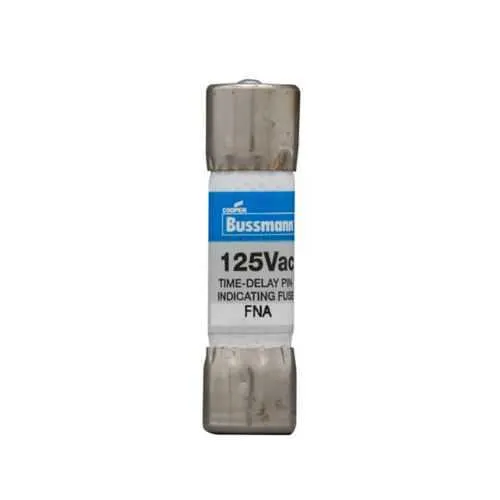

Eaton FNA-8 Fuse - 10 kAIC at 125 Vac - Dual-Element
Part Number: FNA-8
Quick Summary
Eaton Bussmann series FNA fuse provides time-delay protection for inductive and electronic circuits in industrial controls. To design reliable panels, engineers need a fuse that withstands inrush without sacrificing protection during fault conditions. This device delivers dual-element construction with an 8 A rating and 10 kAIC interrupt capability at 125 V, supporting both motor start-up and electronic load scenarios. The fuse features ferrule-end connections and silver-plated pins for secure wiring and low contact resistance. CE Marked compliance confirms EU safety and performance standards, while rugged packaging and standard sizing simplify stocking and replacement. By selecting this fuse, manufacturers can reduce nuisance trips, improve uptime, and lower maintenance costs across automation and electrical protection applications.
Product Information
Extended Description
FNA-8 Eaton: Eaton Bussmann series FNA fuse, Time-delay fuse, Inductive load circuits, Electronic circuits, 8 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac, Silver-plated pin, Standard, 125 V
Product Name
Eaton Bussmann series FNA fuse
Catalog Number
FNA-8
UPC
051712713634
EAN
5027590060141
Product Length/Depth
0.37 in
Product Height
1.46 in
Product Width
0.37 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
8 A
Interrupt rating
10 kAIC at 125 Vac
Voltage rating
125 V
Material
Silver-plated pin
Number of elements
Dual
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Superior overload and cycling capabilities
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FNA-8
FNA-8~FUSETRON DUAL-ELEMENT INDICATING
Datasheet - FNQ-30
Feature → Business Impact → Application: Time-delay, dual-element design handles inrush currents in inductive loads without compromising protection for surges, reducing nuisance trips and downtime in control panels. This translates to improved line balance and longer equipment life in conveyor systems and machine centers. Feature → Business Impact → Application: 8 A rating with a 10 kAIC interrupt rating at 125 V provides robust protection for both motors and electronic circuits, enabling safe startup and reliable cycling in automation equipment. Feature → Business Impact → Application: Ferrule-end connections and silver-plated pins offer low-contact resistance and straightforward field installation, reducing wiring errors and installation time in panel assemblies and OEM equipment. Feature → Business Impact → Application: CE Marked compliance ensures regulatory alignment for EU machinery and international projects, supporting purchase approvals and supplier qualification. Feature → Business Impact → Application: Non-indicating, standard packaging with dual-element superiority delivers predictable performance, easy replacement, and minimized lifecycle costs in spare parts inventories.
Get a Quick Quote for a Eaton FNA-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNA-8?
Enquire Now
FAQs
Install the FNA-8 with ferrule-end x ferrule-end connections using wires sized for 8 A at 125 V. Ensure proper seating of the silver-plated pins for low contact resistance, and verify the circuit is de-energized before replacement. The non-indicating design simplifies visual inspection, while the ferrule ends reduce wiring strain and improve connector longevity in panel assemblies.
The FNA-8 is an 8 A time-delay, dual-element fuse with a 10 kAIC interrupt rating at 125 Vac. It is suitable for inductive loads and electronic circuits, including motor start-up and panel control applications where inrush is common. Its 125 V rating and CE compliance make it appropriate for European and international machinery and automation projects.
Yes. The time-delay (dual-element) design accommodates inrush currents typical of motors and other inductive loads without nuisance tripping, while still providing fast protection during faults. With an 8 A rating and 10 kAIC interrupt capability at 125 V, it guards both motor starters and sensitive electronic loads in control panels and automation equipment.
The FNA-8 is CE Marked, indicating compliance with EU safety standards. This helps with regulatory approvals and customer qualification processes in Europe and other markets that recognize CE compliance for electrical protection components.
The time-delay, dual-element construction reduces nuisance trips during startup and cycling, lowering unplanned downtime. Its robust 10 kAIC interrupt rating at 125 V supports reliable protection for motors and electronics, improving equipment uptime and extending the mean time between failures. Standard packaging and ferrule-end connections also reduce maintenance time and inventory complexity.
