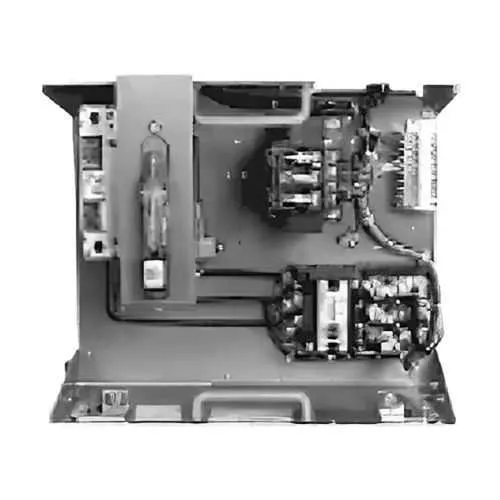

Eaton FNF1A14 Motor Control Center - UL Listed
Part Number: FNF1A14
Quick Summary
Eaton FNF1A14 Motor Control Center is a single feeder MCC designed for compact, dependable motor control in industrial panels. This model addresses the common challenge of balancing panel density with safe access to control gear. UL Listed certification supports compliant integration in many markets, while the 15 A trip rating and HFD circuit breaker provide clear protection against overload events. The compact 14-inch unit size, combined with a rotary handle mechanism, delivers faster commissioning and safer operator interaction. For panel builders and maintenance teams, this MCC offers predictable installation, reliable operation, and straightforward serviceability, aligning with long-term cost-of-ownership goals and scalable automation strategies.
Product Information
Extended Description
FNF1A14 Eaton: Eaton 9800 series motor control center, 9800 Series Single feeder Motor Control Center 15A trip rating, HFD circuit breaker, Single feeder, Rotary handle mechanism, 14-inch unit size
Product Name
Eaton 9800 series motor control center
Catalog Number
FNF1A14
UPC
786685436630
Product Length/Depth
22 in
Product Height
16 in
Product Width
25 in
Product Weight
27 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Circuit breaker type
HFD
Feed type
Single feeder
Operation
Rotary handle
Size
14 in
Trip rating
15 A
Feature → Business Impact → Application: The 15 A trip rating with an HFD circuit breaker delivers precise protection for small motor loads, reducing nuisance trips and safeguarding critical equipment in manufacturing cells. This translates to improved uptime and lower repair costs during high-demand seasonality, especially in line-start or pilot applications requiring rapid protection responses. Application-wise, the FNF1A14 fits single-feeder MCC configurations in compact panels where space is at a premium, supporting panel builders in tight installations without sacrificing protection or control accuracy. Feature → Business Impact → Application: Rotary handle operation enables quick, OSHA-friendly disengagement during maintenance cycles, streamlining lockout-tagout workflows and minimizing exposure time for technicians. In practice, this makes the unit ideal for machine tool drives and packaging lines where frequent service is needed. Feature → Business Impact → Application: The 14-inch unit size and 22-inch depth offer a balanced footprint for mid-pack control panels, improving heat dissipation and wiring organization while enabling easier retrofits in legacy MCC enclosures. Feature → Business Impact → Application: UL Listed certification and Eaton’s warranty policy provide risk reduction for procurement and compliance teams, supporting supplier qualification and reducing project risk in regulated environments. Feature → Business Impact → Application: The unit’s compatibility with single-feeder configurations simplifies installation in new builds and refurbishment projects, reducing engineering time and enabling faster line start-ups for OEMs and system integrators.
Get a Quick Quote for a Eaton FNF1A14
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNF1A14?
Enquire Now
FAQs
The FNF1A14 is a single feeder MCC configured for 14 inch unit size with dimensions of 22 in depth, 16 in height, and 25 in width. Ensure panel inner clearance and mounting rails accommodate the 27 lb unit, verify compatible bus connections for HFD breakers, and respect the rotary handle access for safe operation during maintenance. Check UPC and catalog information for ordering accuracy.
Key specifications include a 15 A trip rating and HFD circuit breaker type, designed for small-load motor control tasks. The unit supports single-feeder configurations and uses a rotary handle for quick disengagement. For machine control use, verify panel duty cycles, ambient temperature, and wiring conduit allowances to ensure reliable protection and swift maintenance without compromising control integrity.
Yes, the 14 inch size and single feeder architecture support retrofit projects where space and wiring layouts allow. The rotary handle and compact footprint simplify disassembly during retrofits, while UL Listed certification provides a compliance baseline for modernized panels. Confirm compatibility with current MCC component spacing, conductor sizes, and protective device ratings before deployment.
The FNF1A14 is UL Listed, providing a recognized safety standard for electrical assemblies in industrial environments. Specific certifications beyond UL are not listed in the provided data, so verify regional compliance needs for CE, IP ratings, or SIL requirements if your project operates under those regimes. Documented UL compliance supports procurement and audit readiness.
The unit carries Eaton’s warranty policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This reduces lifecycle risk for maintenance budgeting. When evaluating ROI, consider reduced downtime due to protected motor loads, simpler serviceability from the rotary handle design, and the reliability of UL Listed components as part of the total cost of ownership.
