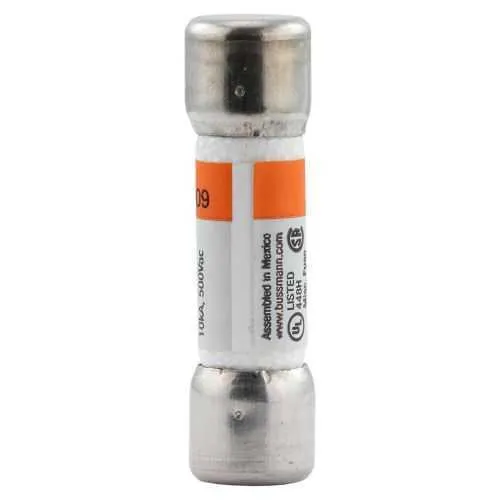

Eaton FNQ-1-6/10 Fuse - 10 kAIC at 500 Vac
Part Number: FNQ-1-6/10
Quick Summary
The Eaton FNQ-1-6/10 fuse provides time-delay protection for motor control circuits in industrial equipment. Inrush currents and nuisance trips can drive maintenance costs and downtime unless protection is paired with appropriate delay. CE marking and RoHS compliance support global deployments, while the 10 kAIC interrupt rating ensures fast fault clearing across 500 V systems. Together with its nickel-plated bronze endcaps and ferrule-end connections, it integrates with standard panels while delivering measurable reliability. Professionals appreciate the compact form factor, with a 1.5 in length and ferrule-end connections for quick field replacement and lower installation labor. For engineers designing motor starters, drives, and transformers, FNQ-1-6/10 provides a familiar, standards-based protection solution that reduces risk in critical applications. Overall, this fuse helps meet reliability targets and support uptime across international facilities.
Product Information
Extended Description
FNQ-1-6/10 Eaton: Eaton Bussmann series FNQ fuse, Time-delay, Motor control transformers, Circuits with in-rush currents, 1.6 A, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 500 Vac, Nickel-plated bronze endcap, Standard, 500 V
Product Name
Eaton Bussmann series FNQ fuse
Catalog Number
FNQ-1-6/10
UPC
051712786119
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.175 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
1.6 A
Interrupt rating
10 kAIC at 500 Vac
Voltage rating
500 V
Material
Nickel-plated bronze endcap
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non-indicating
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - FNQ-1-6/10
FNQ-1-6/10~FNQ-1-6-10~BUSS MIDGET FUSE
Feature: Time-delay protection operates with a deliberate delay that accommodates startup surges. Business Impact: Reduces nuisance trips while preserving protection. Application: Motor control circuits, pumps, and fans with expected inrush. Feature: High fault-margin electrical ratings—1.6 A, 500 V, and 10 kAIC. Business Impact: Safer startups and faster fault isolation, protecting downstream devices and reducing cascade faults. Application: Panelboards and industrial control circuits in environments with surge potentials. Feature: Ferrule-end x ferrule-end construction with nickel-plated bronze endcaps. Business Impact: Durable, corrosion-resistant contacts and easy field replacement, lowering maintenance costs. Application: Standard DIN/industrial panels and retrofit scenarios requiring reliable terminations. Feature: CE and RoHS compliance with standard packaging. Business Impact: Global usability and regulatory alignment reduce redesign costs and simplify supplier qualification. Application: OEMs and integrators deploying across multiple regions requiring compliant protection.
Get a Quick Quote for a Eaton FNQ-1-6/10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-1-6/10?
Enquire Now
FAQs
FNQ-1-6/10 is designed for motor control circuits, transformers, and other equipment that experience startup surges. It fits in standard protection panels using ferrule-end terminations, with a compact 1.5 in body length and standard packaging for easy retrofits. Engineers typically pair this fuse with contactors and overload devices to balance protection and uptime.
Interrupt rating of FNQ-1-6/10 is 10 kAIC at 500 Vac, providing ample margin for fault isolation in high-inrush applications. This specification ensures fast clearing of faults while protecting downstream devices such as drives and transformers, reducing the likelihood of cascading failures. In practice, the rating supports panel builders seeking robust protection in mid-size industrial systems.
Yes. The FNQ-1-6/10 is CE marked and RoHS compliant, aligning with European and global regulatory requirements. These certifications help ensure traceability, safe materials, and minimized hazardous substance exposure in assembled equipment. For OEMs and integrators, this reduces compliance risk when shipping to multi-region installations and simplifies supplier qualification processes globally.
It uses a controlled delay to tolerate brief startup surges while still interrupting sustained faults. In motor and transformer circuits, the delay prevents nuisance trips during normal acceleration, while the fuse remains responsive to actual fault conditions beyond the inrush. This balanced behavior helps maintain uptime and protects downstream devices.
Select ferrule-end terminations that match panel cables and use clean ferrule pins to avoid loose connections. Ensure proper mounting with standard packaging and verify the 500 V rating suits your system; keep breakers and fuses within the 1.6 A rating to avoid nuisance trips. Regular inspection of nickel-plated bronze endcaps helps prevent corrosion in harsh environments.
