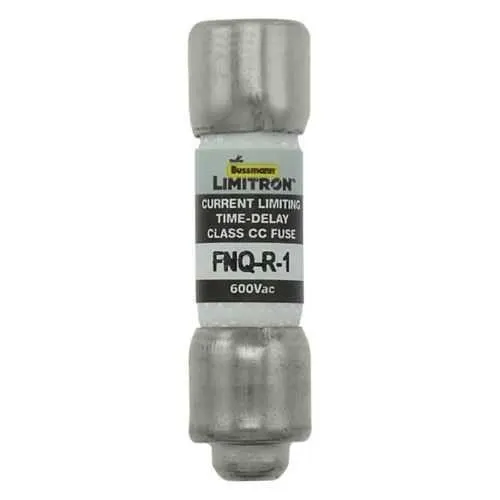

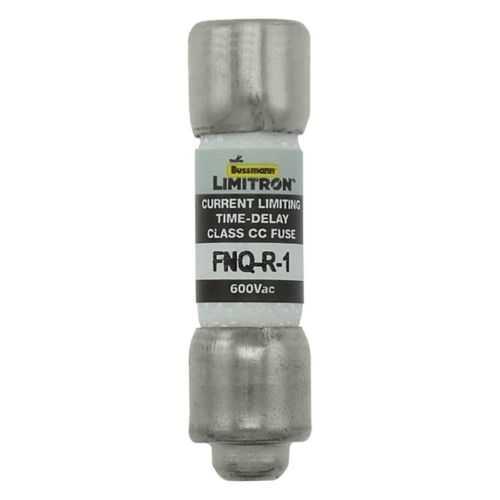

Eaton FNQ-R-1 Fuse - Class CC Time-Delay 600V CE RoHS
Part Number: FNQ-R-1
Quick Summary
The FNQ-R-1 fuse from Eaton protects small transformers and industrial control circuits with time-delay current-limiting performance. For engineers dealing with startup surges and nuisance trips, this device reduces unplanned downtime without compromising protection. It is CE marked and RoHS compliant, with a 200 kAIC interrupt rating at 600 V, ensuring robust performance in regulated environments. Its compact ferrule-end design simplifies panel installation and interchangeability across Eaton Bussmann series products. By combining a proven Class CC format with a rejection-style connection and reliable response characteristics, it supports cost-effective, compliant protection for line protection, small control transformers, and industrial control applications.
Product Information
Extended Description
FNQ-R-1 Eaton: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 1 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series FNQ-R fuse
Catalog Number
FNQ-R-1
UPC
051712147033
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Type
Current-limiting high inrush time-delay fuse
Special features
Rejection style
Application
Line protection, small control transformers, industrial control, branch circuits
Amperage Rating
1 A
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Voltage rating
600 V
Feature → Business Impact → Application: The FNQ-R-1 uses current-limiting, dual-element, time-delay fusion to reduce fault energy and arc exposure, delivering safer, more reliable protection. This translates to longer insulation life, fewer trips during inrush, and lower maintenance costs for machines and panels. Application-focused benefits include improved uptime in line protection, small control transformers, and branch circuits, particularly in environments with variable loads.Feature → Business Impact → Application: The rejection-style design minimizes mis-wiring during installation, supporting faster commissioning and fewer field errors in control cabinets. Application: Ideal for industrial control panels and modular switchgear where quick, correct fitment is critical.Feature → Business Impact → Application: The 1 A, 600 V rating and 200 kAIC interrupt capability deliver precise protection while tolerating startup surges, reducing nuisance trips without sacrificing safety. Application: Line protection and branch circuits in machinery, conveyors, and automation panels.Feature → Business Impact → Application: The compact 1.5 in length with ferrule-end connections enables easy replacement and service in crowded panels, improving maintenance efficiency. Application: OEM cabinet design and serviceable industrial control infrastructure.Feature → Business Impact → Application: CE and RoHS compliance ensure regulatory alignment and supply-chain peace of mind for global deployments, while the melamine tube construction supports durability in industrial environments. Application: Any standardized Eaton Bussmann series installation requiring reliable, compliant fusing.
Get a Quick Quote for a Eaton FNQ-R-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-R-1?
Enquire Now
FAQs
FNQ-R-1 uses ferrule end x ferrule end connections and a compact 1.5 in length with 0.41 in by 0.41 in cross-section, making it straightforward to fit into standard Eaton Bussmann series installations. The rejection-style design helps prevent mis-wiring, and its 12 sec at 200% overload response supports predictable protection during startup surges.
Key specs include a 1 A amperage rating, 600 V voltage rating, Class CC current-limiting construction, time-delay dual-element design, and a 200 kAIC interrupt rating. It is non-indicating and uses ferrule-end connections, with a 1.5 in length and standard packaging.
Yes. Its current-limiting, time-delay (dual-element) design tolerates startup surges and minimizes nuisance trips, which is critical for small control transformers and industrial control panels. The 600 V rating and 200 kAIC interrupt capacity provide robust protection for typical industrial circuits.
The FNQ-R-1 is CE Marked and RoHS Compliant, aligning with European regulatory requirements. This helps ensure compliance in regulated markets and supports global deployments in panel assemblies and control cabinets.
As a non-indicating fuse, replacement is straightforward during routine maintenance or after a fault event. The ferrule-end design allows quick replacement, and its compact dimensions fit crowded panels, reducing downtime during cabinet servicing.
