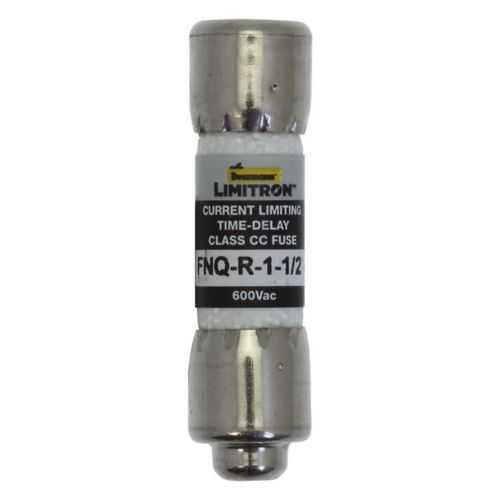

Eaton FNQ-R-1-1/2 Fuse - Class CC, 200 kAIC
Part Number: FNQ-R-1-1/2
Quick Summary
Eaton FNQ-R-1-1/2 fuse protects small control circuits with time-delay current limiting. Engineers frequently face nuisance trips during equipment startups due to inrush; this device offers selective fault protection without compromising startup reliability. CE marking and RoHS compliance accompany its robust 200 kAIC interrupt rating at 600 V, aligning with safety and regulatory requirements. Class CC construction and ferrule-end connections simplify mounting in standard control panels, reducing installation time and field errors. Featuring a rejection-style design, it helps prevent incorrect replacements while supporting predictable maintenance and procurement workflows. In practice, specifying this fuse translates to improved uptime and consistent protection for line transformers and branch circuits.
Product Information
Extended Description
FNQ-R-1-1/2 Eaton: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 1.5 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series FNQ-R fuse
Catalog Number
FNQ-R-1-1/2
UPC
051712147057
EAN
5027590449625
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.018 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Type
Current-limiting high inrush time-delay fuse
Special features
Rejection style
Application
Line protection, small control transformers, industrial control, branch circuits
Amperage Rating
1.5 A
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Voltage rating
600 V
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FNQ-R Class CC Fuse Data Sheet No. 1014
Feature: Time-delay, current-limiting design. Benefit: Reduces nuisance trips during inrush events while preserving fast fault interruption, improving equipment uptime and protecting transformers. Application: Line protection, small control transformers, industrial control panels. Feature: 200 kAIC interrupt rating at 600 V. Benefit: High fault tolerance for demanding industrial circuits, enabling safer shutdowns and easier downstream protection coordination. Application: Main feeders and branch circuits in industrial controls. Feature: 1.5 A, Class CC. Benefit: Precise protection for low-current control circuits with standard, compact fusing that fits common enclosure spaces. Application: Control transformers and panel devices requiring reliable protection without overfusing. Feature: Rejection-style, non-indicating fuse with ferrule-end connections. Benefit: Minimizes maintenance errors and simplifies replacement in crowded control cabinets, while ferrule ends ensure robust, vibration-tolerant connections. Application: Fielded in rugged environments where quick, error-free maintenance matters. Feature: Compliance and material specs. Benefit: CE Marked, RoHS compliant construction supports regulatory adherence and safer disposal; melamine tube provides stable thermal performance. Application: Industrial environments requiring certified components and predictable service life.
Get a Quick Quote for a Eaton FNQ-R-1-1/2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-R-1-1/2?
Enquire Now
FAQs
The FNQ-R-1-1/2 uses ferrule-end connections, supporting quick insertion into standard terminal blocks common in industrial control panels. With a 1.5 A rating and Class CC construction, it fits compact panel layouts while delivering reliable time-delay protection for small transformers and branch circuits. Ensure the enclosure is rated for 600 V and verify the line-side wiring adheres to applicable electrical codes.
Key specs include a 1.5 A amperage rating, Class CC fuse construction, 600 V voltage rating, 200 kAIC interrupt rating, time-delay current-limiting behavior, and a 12-second response at 200% overload. The device uses ferrule-end connections and is non-indicating, suitable for line protection and industrial control applications requiring controlled fault clearing without nuisance trips.
Yes. The fuse is specifically designed for line protection, small control transformers, industrial control circuits, and branch circuits. Its current-limiting, time-delay characteristics help manage transformer inrush while protecting downstream devices. The rejection-style feature reduces misreplacement risk in mission-critical panels, contributing to safer, more reliable operation in industrial environments.
The FNQ-R-1-1/2 is CE marked and RoHS compliant, ensuring compliance with European safety, health, and environmental standards. These certifications support regulatory approvals, safer material usage, and easier global procurement for projects requiring certified components in control panels and machinery.
The fuse’s high interrupt rating and time-delay behavior reduce downtime by preventing unnecessary outages during startup while still delivering fast fault clearance. Its standard ferrule-end design, non-indicating indicator, and rejection-style feature streamline replacements and maintenance workflows, lowering labor costs and improving overall system availability in industrial facilities.
