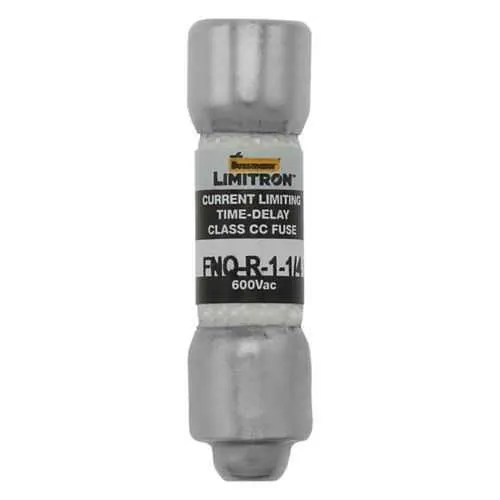

Eaton FNQ-R-1-1/4 Fuse - Class CC, 200 kAIC
Part Number: FNQ-R-1-1/4
Quick Summary
The Eaton FNQ-R-1-1/4 fuse is a time-delay, current-limiting protection device designed for line protection and small-control circuits. Finding a fuse that withstands inrush currents while guarding critical electrical panels in compact control environments can be challenging. Two key certifications—CE Mark and RoHS compliant—support regulatory alignment for regional and global deployments, while its 200 kAIC interrupt rating at 600 V adds robustness for fault scenarios. Beyond compliance, the FNQ-R’s Class CC construction, ferrule-end connections, and current-limiting behavior deliver reliable protection with a compact footprint, reducing panel size and maintenance needs. This makes it a strong fit for line protection, small transformers, and branch circuits in industrial control panels, delivering ongoing uptime and safety.
Product Information
Extended Description
FNQ-R-1-1/4 Eaton: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 1.25 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series FNQ-R fuse
Catalog Number
FNQ-R-1-1/4
UPC
051712496940
EAN
5027590407540
Product Length/Depth
0.41 in
Product Height
1.5 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Type
Current-limiting high inrush time-delay fuse
Special features
Rejection style
Application
Line protection, small control transformers, industrial control, branch circuits
Amperage Rating
1.25 A
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Voltage rating
600 V
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FNQ-R Class CC Fuse Data Sheet No. 1014
Feature: Time-delay, dual-element current-limiting design. Benefit: Manages inrush and startup surges without nuisance trips, improving equipment uptime and reducing maintenance intervals. Application: Line protection for small control transformers and industrial control circuits, especially where inrush is expected. Feature: Rejection style design. Benefit: Prevents incorrect fusing and misapplication, lowering panel fault chatter and service calls. Application: Retrofit and retrofits in legacy control panels requiring reliable fuse identification. Feature: High interrupt rating of 200 kAIC at 600 V. Benefit: Safe interruption of high-energy faults, protecting upstream breakers and wiring from damage. Application: Industrial feeders and branch circuits with demanding fault currents. Feature: Ferrule end x ferrule end connection. Benefit: Simple, secure installation with compatible terminal blocks, speeding assembly and reducing torque-related failures. Application: Mounting in standard control panels and enclosures. Feature: Amperage rating of 1.25 A and Class CC construction. Benefit: Precise protection for low-load circuits and small transformers, enabling tighter circuit protection budgets. Application: Small transformer lines and low-current branch circuits. Feature: Non-indicating fuse with melamine tube construction. Benefit: Durable, easy-to-manage protection that resists environmental factors in harsh facilities. Application: Industrial environments where simple replacement workflows are preferred.
Get a Quick Quote for a Eaton FNQ-R-1-1/4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-R-1-1/4?
Enquire Now
FAQs
What mounting and terminal requirements exist for FNQ-R-1-1/4 when using ferrule-end connections? Ensure compatible ferrule sizes, tighten to manufacturer torque, and verify clear labeling to prevent mis-wiring. The ferrule-end design simplifies panel installation and maintains secure contact in industrial environments.
The FNQ-R-1-1/4 fuse offers a 200 kAIC interrupt rating at 600 V with a response time of 12 seconds at 200% overcurrent. This combination provides strong fault protection while accommodating inrush conditions typical of small control transformers.
Yes. With a 1.25 A rating and current-limiting, time-delay characteristics, the FNQ-R-1-1/4 is well-suited for protecting line circuits feeding small control transformers and various branch circuits in industrial controls, balancing protection and equipment startup behavior.
The FNQ-R-1-1/4 is CE marked and RoHS compliant, ensuring regulatory alignment for European and global markets and supporting environmental and safety standards in industrial installations.
The current-limiting, time-delay design minimizes nuisance trips during startup, reduces unplanned outages, and simplifies replacement workflows with a compact, non-indicating fuse, contributing to lower maintenance costs and higher equipment uptime.
