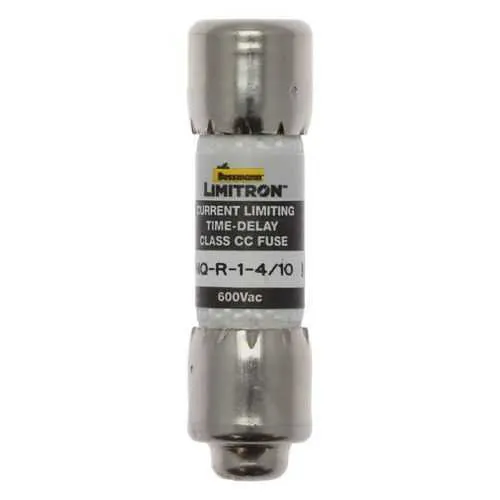

Eaton FNQ-R-1-4/10 Fuse - Class CC 600V 200 kAIC
Part Number: FNQ-R-1-4/10
Quick Summary
The Eaton FNQ-R fuse provides time-delay current-limiting protection for line protection and small control circuits in industrial panels. Engineers often grapple with inrush demands and nuisance trips, seeking reliable protection without compromising uptime. With CE marking and RoHS compliance, the FNQ-R meets European regulatory standards, while its Class CC, 600 V rating, and 200 kAIC interrupt rating support safe, scalable industrial deployment. In practice, the Bussmann FNQ-R becomes a versatile choice for line protection, small transformers, and branch circuits, delivering predictable protection and lower total cost of ownership.
Product Information
Extended Description
FNQ-R-1-4/10 Eaton: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 1.4 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series FNQ-R fuse
Catalog Number
FNQ-R-1-4/10
UPC
051712496957
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Type
Current-limiting high inrush time-delay fuse
Special features
Rejection style
Application
Line protection, small control transformers, industrial control, branch circuits
Amperage Rating
1.40A
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Voltage rating
600 V
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FNQ-R Class CC Fuse Data Sheet No. 1014
Feature: Time-delay current-limiting design offers controlled response to inrush. Impact: Protects conductors and components while minimizing nuisance trips. Application: Ideal for line protection, small control transformers, and industrial control panels. Feature: Rejection-style, non-indicating fuse prevents incorrect replacement and reduces panel downtime. Impact: Improves maintenance accuracy and reduces mis-wiring risks. Application: Widely used in distribution boards and control circuits where quick identification matters. Feature: Ferrule end x ferrule end connections support quick, reliable wiring. Impact: Simplifies installation and ensures solid contact under vibration in harsh environments. Application: Common in branch circuits and equipment enclosures. Feature: 600 V rating, 1.40 A amperage and 200 kAIC interrupt rating deliver robust protection for medium-scale panels. Impact: Enhances safety margins and enables scalable protection for industrial systems. Application: Industrial control, line protection, and transformer protection. Feature: Compact form factor with 1.5 in length and 0.41 in footprint fits tight panel spaces. Impact: Saves enclosure space and streamlines wiring harness design. Application: Small control cabinets, limited-space panels, and retrofits. Feature: Compliance and material choices, including CE marking, RoHS compliance, and melamine tube construction. Impact: Supports regulatory conformity and durable operation in demanding environments. Application: European installations and any facility pursuing sustainable design.
Get a Quick Quote for a Eaton FNQ-R-1-4/10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-R-1-4/10?
Enquire Now
FAQs
The FNQ-R-1-4/10 is designed for line protection and small control circuits in industrial panels. Its time-delay, current-limiting characteristics help manage moderate inrush currents typical of transformers and control devices, while its 200 kAIC interrupt rating provides a strong safety margin. It is well-suited for branch circuits and compact enclosures.
Yes. The FNQ-R-1-4/10 is a time-delay fuse that handles inrush more gracefully than fast-acting variants. With a 1.4 A rating and a 200 kAIC interrupt rating, it safeguards downstream equipment during startup surges without nuisance tripping, making it suitable for small control transformers and other devices with short, high-current pulses.
Yes. This fuse is CE marked and RoHS compliant, ensuring European regulatory acceptance and reduced hazardous substances in assemblies. Built on a Class CC design with a 600 V rating, it aligns with standard safety and environmental requirements for industrial protection devices.
Key ratings include 1.40 A amperage, 600 V voltage rating, 200 kAIC interrupt rating, and a 12-second response time at 200% for verification under fault conditions. This combination supports reliable protection of lines, branch circuits, and small transformers in industrial controls.
Install the FNQ-R-1-4/10 with ferrule-end connections into properly rated terminal blocks or harnesses. Ensure polarity and enclosure clearances meet panel standards, and verify the fuse is correctly seated to avoid looseness. Use the standard installation practices for Class CC fuses and refer to the data sheet for mounting guidance.
