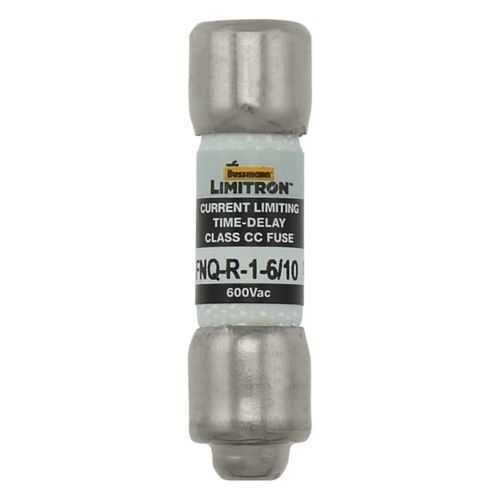

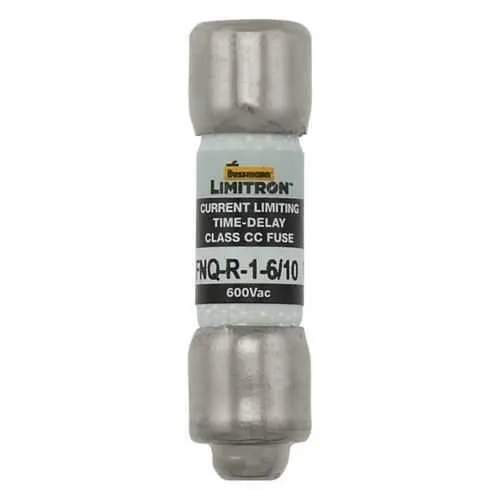

Eaton FNQ-R-1-6/10 Fuse - 200 kAIC
Part Number: FNQ-R-1-6/10
Quick Summary
The Eaton FNQ-R-1-6/10 fuse provides reliable time-delay current-limiting protection for low-voltage circuits. Engineers often struggle with inrush and nuisance trips when protecting small control transformers and branch circuits. This unit is CE marked and RoHS compliant, with a 600 V rating and a 200 kAIC interrupt capability to handle fault currents in industrial environments. As part of the Eaton Bussmann Series Class CC family, it offers quick replacement, standardized sizing, and cost-effective spares, while meeting reliability and regulatory needs. Designed for panel builders and OEMs, it simplifies procurement with a single, standard part across multiple projects. Opportunity to reduce downtime and spare parts through consistent performance and documented data sheets.
Product Information
Extended Description
FNQ-R-1-6/10 Eaton: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 1.6 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series FNQ-R fuse
Catalog Number
FNQ-R-1-6/10
UPC
051712496964
EAN
5027590449649
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.019 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Type
Current-limiting high inrush time-delay fuse
Special features
Rejection style
Application
Line protection, small control transformers, industrial control, branch circuits
Amperage Rating
1.6 A
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Voltage rating
600 V
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FNQ-R Class CC Fuse Data Sheet No. 1014
Feature: Time-delay, dual-element current-limiting design. Benefit: Delivers inrush tolerance for motors and transformers while maintaining circuit protection, reducing nuisance trips and improving uptime in line protection and industrial control applications. Application: Suitable for line protection, small control transformers, and branch circuits where steady fault interruption is critical. Feature: Rejection style design. Benefit: Prevents incorrect fuse installation, lowering panel assembly errors and service calls; ideal for standardized control panels and OEM assemblies. Application: Panel builders seeking reliable, repeatable protection with reduced maintenance. Feature: High interrupt rating of 200 kAIC at 600 V. Benefit: Superior fault interruption capability in high-current environments, safeguarding equipment and reducing arc-flash risk. Application: Industrial power distributions and heavy-duty control systems. Feature: Class CC, ferrule end connections. Benefit: Easy, secure replacement with common Bussmann components; supports fast field swaps and consistent wiring practices. Application: Modern control panels and modular machines. Feature: RoHS and CE compliance with specified performance. Benefit: Global eligibility for deployment, streamlined procurement, and regulatory confidence. Application: Export manufacturing, multi-site rollout, and compliance-driven projects.
Get a Quick Quote for a Eaton FNQ-R-1-6/10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-R-1-6/10?
Enquire Now
FAQs
FNQ-R-1-6/10 uses ferrule end x ferrule end connections and is designed for standard Class CC fuse holders found in Eaton Bussmann Series panels. It fits common control panel backplanes and provides a reliable, repeatable replacement path for modular industrial systems.
The device has a 1.6 A amperage rating, a 600 V voltage rating, and a 200 kAIC interrupt rating. It is a time-delay, dual-element current-limiting fuse with a 12-second response at 200% overload, and is classified as a Class CC fuse with a non-indicating fuse indicator.
Yes. Its time-delay capability accommodates inrush from small control transformers and motors, while its current-limiting nature protects downstream equipment. The rejection style and ferrule connections simplify panel assembly and maintenance in industrial control settings.
The fuse is CE marked and RoHS compliant, ensuring global regulatory compatibility for manufacturing facilities and export markets, while maintaining safety and environmental requirements.
Non-indicating fuse design reduces wiring complexity and maintenance checks. Its standardized Class CC form and 200 kAIC rating support coordinated protection across multiple machines, helping reduce downtime and spare-part inventory with a single, reliable component suitable for various line-protection applications.
