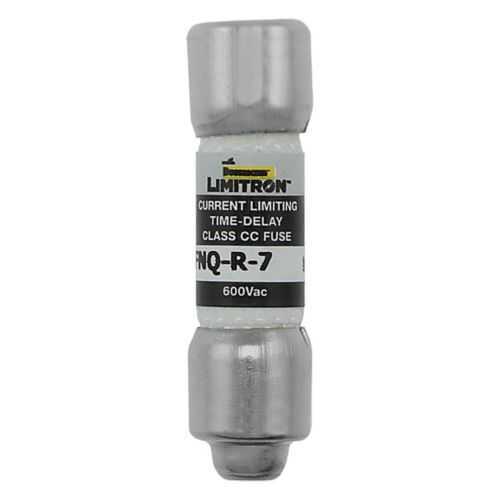

Eaton FNQ-R-7 Class CC Fuse - 200 kAIC Interrupt
Part Number: FNQ-R-7
Quick Summary
FNQ-R-7 is a Class CC time-delay fuse designed to protect industrial control circuits and small transformers. Engineers often struggle with nuisance tripping from inrush currents and the need for predictable interruption during faults. This device features RoHS compliance and CE marking, plus a 200 kAIC interrupt rating at 600 V to support safety and reliability in demanding environments. Its compact form and rejection-style design translate into easier installation and robust protection across line protection, small control transformers, and industrial control panels. By combining precise current limiting with durable construction, the FNQ-R-7 delivers meaningful business value through reduced downtime and safer, compliant electrical protection.
Product Information
Extended Description
FNQ-R-7 Eaton: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 7 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series FNQ-R fuse
Catalog Number
FNQ-R-7
UPC
051712558259
EAN
5027590449809
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.02 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Type
Current-limiting high inrush time-delay fuse
Special features
Rejection style
Application
Line protection, small control transformers, industrial control, branch circuits
Amperage Rating
7 A
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Response time
12 sec at 200%
Material
Melamine tube Nickel-plated brass endcap
Packaging type
Standard
Voltage rating
600 V
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FNQ-R Class CC Fuse Data Sheet No. 1014
Feature: Time-delay, dual-element current limiting fuse. Business Impact: Manages inrush in motors and transformers while preserving circuit continuity, reducing nuisance trips and improving equipment uptime. Application: Line protection and small control transformers in industrial control panels. Feature: Rejection style fuse. Business Impact: Prevents incorrect fuse installation in multi-fuse assemblies, lowering field reversal risk and maintenance time. Application: Industrial control panels and branch-circuit protection. Feature: 7 A amperage rating with 600 V voltage rating. Business Impact: Provides appropriate protection for low-to-moderate current circuits while tolerating short-lived surges, supporting safer, more reliable power delivery. Application: Control circuits and protected loads in automation systems. Feature: High interrupt rating of 200 kAIC. Business Impact: Enables safe interruption of high fault currents, reducing damage to upstream equipment and improving system resilience. Application: Panels exposed to high short-circuit currents in process lines. Feature: Compact dimensions (1.5 in length, 0.41 in width/height) and light weight (0.02 lb). Business Impact: Simplifies retrofit and replacement in crowded enclosures, enabling faster maintenance and standardized installations. Application: Bussmann-series compatible enclosures and modular protection schemes. Feature: RoHS compliant and CE marked with durable construction (melamine tube, nickel-plated brass endcaps). Business Impact: Ensures global regulatory compliance and long service life in harsh environments. Application: Global manufacturing facilities and cross-border procurement.
Get a Quick Quote for a Eaton FNQ-R-7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-R-7?
Enquire Now
FAQs
Install the FNQ-R-7 in a Bussmann-series compatible panel using standard fuse holders. Ensure correct orientation and that the rejection-style design aligns with the enclosure layout to avoid misinsertion. Verify 600 V rating and 7 A rating match the circuit requirements, and confirm the upstream protection coordination to prevent nuisance outages while preserving fault isolation.
The FNQ-R-7 is a 7 A, 600 V Class CC fuse with a 200 kAIC interrupt rating and a time-delay, dual-element design. These specs enable safe interruption of high fault currents, accommodate inrush in motors and transformers, and deliver reliable protection for line circuits and small control loads in industrial applications.
Yes. The FNQ-R-7 carries RoHS compliance and is CE marked, meeting European regulatory requirements. This makes it suitable for global manufacturing environments and simplifies cross-border procurement and distribution of protection devices in multinational facilities.
Ideal for line protection, small control transformers, industrial control circuits, and branch circuits. The device’s time-delay response and current-limiting features help manage inrush, protect downstream equipment, and support safe startup sequences in automation panels and process lines.
Refer to Eaton Bussmann resources: the Bussmann full-line catalogs and the FNQ-R Class CC data sheet No. 1014 provide detailed electrical ratings, installation guidelines, and dimensional data. Access the catalogs and the data sheet via Eaton’s support pages or the provided asset links in the product listing for precise specifications and application notes.
