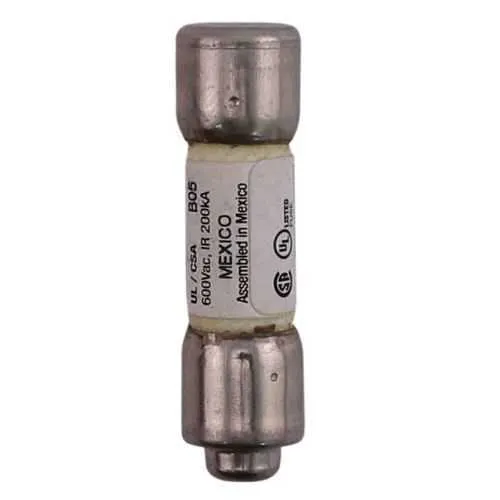

Eaton FNQ-R-9 Fuse - Class CC Time-Delay 200 kAIC
Part Number: FNQ-R-9
Quick Summary
The Eaton FNQ-R-9 fuse provides current-limiting, time-delay protection for line power and small control circuits in industrial controls. Engineers often struggle with nuisance trips during inrush and the challenge of selecting devices that don’t compromise fast fault clearance. The fuse is CE marked and RoHS compliant, aligning with European electrical safety and environmental standards. As part of the Bussmann Series, it delivers proven line protection for transformers, control panels, and branch circuits. With a 9 A rating at 600 V and a 200 kAIC interrupt rating, it helps reduce downtime and simplifies spare-parts budgeting for maintenance teams. This balance of performance and regulatory compliance translates to lower lifecycle costs and fewer field failures.
Product Information
Extended Description
FNQ-R-9 Eaton: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 9 A, rejection style fuse, interrupting rating of 200kA at 600Vac
Product Name
Eaton Bussmann series FNQ-R fuse
Catalog Number
FNQ-R-9
UPC
051712497084
EAN
5027590449830
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Type
Current-limiting high inrush time-delay fuse
Special features
Rejection style
Application
Line protection, small control transformers, industrial control, branch circuits
Amperage Rating
9 A
Class
Class CC
Interrupt rating
200 kAIC
Fuse indicator
Non-indicating
Connection
Ferrule end x ferrule end
Response time
12 sec at 200%
Material
Melamine tube
Packaging type
Standard
Voltage rating
600 V
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FNQ-R Class CC Fuse Data Sheet No. 1014
Feature: Time-delay, dual-element current-limiting design enables controlled inrush handling while maintaining fast fault clearance. Business Impact: Smoother startup of small control transformers reduces nuisance trips and extends transformer life. Application: Ideal for line protection and industrial control circuits where brief overloads occur. Feature: Rejection style construction prevents incorrect substitutions, improving panel reliability and maintenance accuracy. Business Impact: Reduces mis-matched fuses and field errors, lowering service time and repair costs. Application: Field service and retrofit projects where component compatibility matters. Feature: 200 kAIC interrupt rating provides robust short-circuit protection for feeders and branch circuits. Business Impact: Enables safer disconnections during high-energy faults, protecting equipment and personnel. Application: Main and branch circuit protection in demanding industrial environments. Feature: Compact form factor with ferrule end connections (1.5 in length, 0.41 in width, 0.41 in height) and melamine tube material. Business Impact: Easy installation in tight control panels and reliable terminal block mating, reducing assembly time. Application: Small control panels and compact industrial controllers. Feature: RoHS compliant and CE marked ensures regulatory alignment for European markets. Business Impact: Simplifies compliance documentation and supplier qualifications while preserving performance. Application: European line protection deployments across industrial controls. Feature: Non-indicating fuse with standard packaging supports predictable maintenance cycles and spare-part planning. Business Impact: Improves inventory control and reduces unexpected downtime. Application: Routine replacements in line protection and branch circuits. In practice, FNQ-R-9 complements Eaton Bussmann data and the FNQ-R family by delivering reliable, regulatory-aligned protection with consistent performance in harsh industrial environments.
Get a Quick Quote for a Eaton FNQ-R-9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FNQ-R-9?
Enquire Now
FAQs
FNQ-R-9 uses ferrule end-to-end connections and has a compact 1.5 inch length with 0.41 inch dimensions. Ensure compatible terminal blocks and secure ferrule crimping to maintain reliable electrical contact in standard control-panel assemblies.
The fuse is 9 A, rated for 600 V, with a 200 kAIC interrupt rating. It is a Class CC, current-limiting time-delay type with a rejection-style construction and ferrule-end connections for easy panel installation.
Yes. The FNQ-R-9 is RoHS compliant and CE marked, ensuring alignment with European safety and environmental regulations for electrical protection devices.
Best suited for line protection, small control transformers, industrial control panels, and branch circuits where inrush protection and selective fault clearance are important.
FNQ-R-9 is non-indicating, with standard packaging for stock management. Use the FNQ-R data sheet No. 1014 for replacement guidelines, and plan spare parts based on 9 A, 600 V, and the 200 kAIC capability to maintain system reliability.
