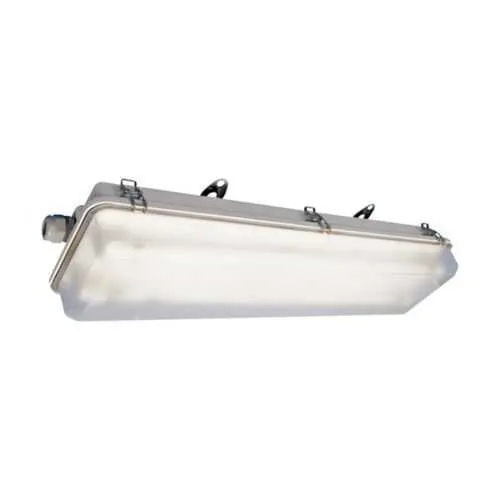

Eaton FPS220-H2 Linear Fluorescent Light Fixture - IP66
Part Number: FPS220-H2
Quick Summary
FPS220-H2 is a rugged linear fluorescent light fixture designed for industrial facilities. Facility teams struggle with moisture intrusion, dust, and downtime, so a sealed, through-feed design helps keep maintenance cycles predictable and lighting consistent. It delivers NEC/CEC compliance, NEMA 4X protection, and IP66 ingress resistance for ordinary locations, ensuring reliable operation in harsh environments. With a two-lamp, 120 VAC, 60 Hz configuration, it provides steady illumination while supporting energy efficiency and reduced lifecycle costs. Designed for Pauluhn Intrepid applications, this fixture offers long service life, easier serviceability, and better total cost of ownership for demanding manufacturing and processing settings.
Product Information
Extended Description
FPS220-H2 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture,3/4",NPT hubs,60 Hz,2 ft lamp,Matte polycarbonate lens,T12 bi-pin,Fiberglass-reinforced polyester,2-lamp,Through feed,120 Vac,20W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS220-H2
UPC
662276637382
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
8.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
2-lamp
Lamp length
2 ft
Light type
T12 bi-pin
Wattage
20W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry size
3/4"
Entry type
NPT hubs
Lens material
Matte polycarbonate
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS220-H2
Durable housing and lens translate into lower maintenance and fewer replacements in washdown and dust-prone areas, boosting plant uptime. Fiberglass-reinforced polyester and matte polycarbonate lens resist temperature swings and corrosion, so you can install FPS220-H2 in chemical and outdoor-adjacent facilities with confidence. Feature → Business Impact → Application: through-feed wiring and 3/4" NPT hubs simplify daisy-chaining across long runs, reducing installation labor and time on site in warehouses and production floors. The 2-lamp, 20W footprint at 120 VAC (60 Hz) delivers dependable light with a compact profile, lowering energy usage while maintaining required illumination levels in process lines and assembly cells. Feature → Business Impact → Application: IP66 and NEMA 4X certifications mitigate regulatory risk and support compliance audits in ordinary, non-hazardous locations like food processing, packaging, and automotive assembly. The matte lens minimizes glare for workers and supports easier cleaning schedules, improving safety and productivity. Feature → Business Impact → Application: T12 bi-pin lamps and a rugged Pauluhn Intrepid design align with existing maintenance programs, enabling quick part replacement and reduced downtime during preventive maintenance rounds.
Get a Quick Quote for a Eaton FPS220-H2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS220-H2?
Enquire Now
FAQs
The FPS220-H2 is designed for ordinary/non-hazardous locations and uses IP66 protection plus a NEMA 4X rating to withstand dust, moisture, and routine washdowns. It’s ideal for warehouses, manufacturing floors, and processing plants where durable illumination is required without special explosion protection.
FPS220-H2 operates at 120 VAC, 60 Hz and is a 2-lamp fixture with 2 ft lamp length. It uses T12 bi-pin lamps and consumes about 20W per fixture. The through-feed design and 3/4" NPT hubs support easy wiring and daisy-chaining in longer runs.
Through-feed wiring enables continuous electrical runs across multiple fixtures, reducing junction points and labor during installation. The 3/4" NPT hubs simplify conduit connections, speeding up field setup and later maintenance while supporting scalable lighting in large facilities.
FPS220-H2 complies with NEC/CEC standards, features a NEMA 4X enclosure, and IP66 ingress protection for ordinary locations. This combination supports regulatory compliance, safe operation in wet environments, and reliable performance in non-hazardous industrial spaces.
Durable fiberglass-reinforced polyester housing and a matte polycarbonate lens resist harsh conditions, reducing replacement frequency. The 2-lamp, 20W design lowers energy costs, while the robust construction minimizes downtime during routine maintenance, delivering a favorable total cost of ownership for plant lighting programs.
