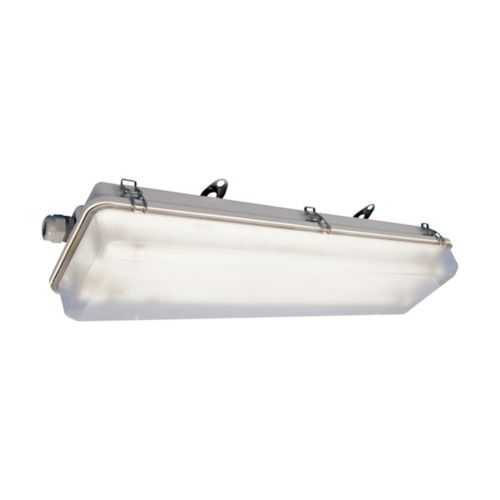

Eaton FPS224 Linear Fluorescent Light Fixture - IP66
Part Number: FPS224
Quick Summary
FPS224 is a two-lamp linear fluorescent fixture that delivers reliable industrial lighting for challenging facilities. Maintenance and wiring in harsh environments often challenge uptime; FPS224 addresses durability, easy access, and field wiring efficiency. It meets NEC/CEC standards, NEMA 4X enclosure protection, and IP66 ingress protection, supporting safe operation in rugged settings. Designed for through-feed installations and versatile voltage (120–277 Vac), FPS224 reduces time-to-light and lowers lifecycle costs. Field maintenance is simplified by a matte polycarbonate lens and the one non-metallic gland plus end plug arrangement. With 2-lamp, 24W design, it balances efficiency with output suitable for general industrial spaces. This combination supports compliance while accelerating project timelines and reducing total cost of ownership.
Product Information
Extended Description
FPS224 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent,One non-metallic cable gland and one end plugged,2 ft,Matte polycarb lens,T5HO mini bi-pin,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,24W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS224
UPC
662276395831
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
2-lamp
Lamp length
2 ft
Light type
T5HO mini bi-pin
Wattage
24W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FPS224 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS224
Feature: Rugged fiberglass-reinforced polyester housing. Business Impact: Delivers superior mechanical strength and chemical resistance, extending service life in damp, dusty environments and reducing field repairs. Application: ideal for factory floors, washdown zones, and outdoor-adjacent spaces where equipment is exposed to moisture and temperature swings. Feature: IP66 and NEMA 4X protection. Business Impact: Ensures effective ingress protection against water, dust, and impacts, supporting uptime and compliance in harsh industrial settings. Application: Ordinary/Non-Hazardous Locations across manufacturing, processing, and packaging lines. Feature: Matte polycarbonate lens. Business Impact: Provides impact resistance and uniform light distribution, lowering maintenance and ensuring consistent visibility in long-running operations. Application: 2 ft lamp length configurations where lens clarity matters. Feature: Through-feed entry with one non-metallic gland and end plug. Business Impact: Simplifies field wiring, reduces installation time, and minimizes costly rework in retrofit projects. Application: through-feed installations in grid ceilings or overhead runs. Feature: 24W total wattage across two lamps with 120-277 VAC operation and 50/60 Hz. Business Impact: Balances energy efficiency with adequate lumen output, lowering energy costs and simplifying electrical design. Application: general industrial spaces needing reliable mid-range brightness. Feature: 2-lamp, T5HO mini bi-pin lamps. Business Impact: Uses compact lamp technology, enabling flexible mounting in constrained ceilings and faster bulb replacement. Application: mid-size industrial luminaires in Pauluhn Intrepid series. Industry insight: The FPS224 aligns with Eaton's Pauluhn Intrepid suite and supports long-term maintenance planning through standard parts and accessories.
Get a Quick Quote for a Eaton FPS224
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS224?
Enquire Now
FAQs
FPS224 is designed for through-feed installations with a single non-metallic cable gland and one end plug. Mount the fixture in the intended ceiling grid or support structure, route power through the gland to a 120-277 VAC supply, and secure the lens for easy maintenance. This configuration minimizes field modifications and speeds commissioning in industrial spaces.
FPS224 is rated to NEC/CEC standards, has a NEMA 4X enclosure, and IP66 ingress protection. These certifications indicate compliance with electrical safety codes, rugged enclosure protection against moisture and dust, and suitability for non-hazardous industrial locations, which helps ensure safe operation and boilerplate readiness for regulated facilities.
Yes. The IP66 rating, combined with NEMA 4X protection, makes FPS224 resistant to water jets and dust ingress, enabling reliable operation in wet washdown areas, dusty production lines, and other challenging environments commonly found in manufacturing and processing facilities.
FPS224 operates at 120-277 VAC and 50/60 Hz, with a total wattage of 24W. It is a 2-lamp fixture using T5HO mini bi-pin lamps. The design supports through-feed wiring and a 2-foot lamp length, providing balanced illumination for mid-size industrial spaces without excessive energy use.
FPS224 uses a matte polycarbonate lens, a rugged fiberglass-reinforced polyester housing, and a simple gland/end-plug wiring setup. These features reduce maintenance downtime, simplify bulb replacement, and lower total cost of ownership by promoting longer service intervals and straightforward field servicing in harsh environments.
