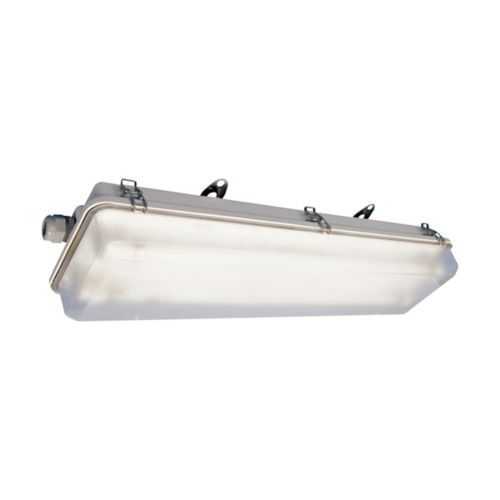

Eaton FPS232 Fluorescent Light - IP66 NEMA 4X
Part Number: FPS232
Quick Summary
The Eaton FPS232 Fluorescent Light is a rugged linear fixture designed for industrial facilities and harsh locations. Many plants struggle with fragile luminaires that fail in moisture, dust, or vibration, driving costly downtime. This FPS232 offers NEC/CEC compliance and robust protection with IP66 ingress and NEMA 4X enclosure, enhancing safety and uptime. Its 32 W, two-lamp design across 4 ft with 120–277 VAC operation supports energy efficiency and flexible installation across facilities. Designed for ordinary/non-hazardous locations, it pairs a matte polycarbonate lens and fiberglass-reinforced polyester housing for durability. User-friendly through-feed wiring simplifies upgrades and reduces installation time in new builds or retrofits.
Product Information
Extended Description
FPS232 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,4 ft,Matte polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS232
UPC
662276395862
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T8 bi-pin
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FPS232 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS232
Feature: Fiberglass-reinforced polyester housing provides excellent durability and chemical resistance. Benefit: Reduces maintenance costs and replacement cycles in corrosive or rugged environments, improving facility uptime. Application: Warehouses, manufacturing floors, outdoor industrial spaces where exposure to moisture and dust is common. Long-tail keywords: fiberglass reinforced polyester housing, rugged industrial lighting, durable fluorescent fixture. Feature: IP66 and NEMA 4X enclosure deliver weatherproof and vandal-resistant protection. Benefit: Ensures reliable operation in harsh environments and supports code-compliant installations. Application: Non-hazardous areas in processing plants and load bays. Long-tail keywords: IP66 rugged lighting, NEMA 4X enclosure, weatherproof industrial fixture. Feature: Through-feed wiring with one non-metallic gland and one end plug simplifies installation. Benefit: Faster retrofits and scalable long-run configurations with fewer field wiring challenges. Application: New builds and retrofit projects requiring efficient electrical hookup. Long-tail keywords: through-feed lighting, 120-277 VAC compatibility, easy wiring. Feature: 2-lamp 32 W configuration with 4 ft lamp length and T8 bi-pin lamps. Benefit: Energy efficiency and reliable, uniform illumination with straightforward ballast management. Application: High-luminosity spaces like assembly lines and storage areas. Long-tail keywords: 2-lamp fluorescent fixture, T8 bi-pin, 32W total, 4 ft lamp length. Feature: Matte polycarbonate lens provides diffused, hard-wearing illumination. Benefit: Reduced glare and extended lens life in busy facilities. Application: Manufacturing and logistics environments needing clear visibility. Long-tail keywords: matte polycarbonate lens, glare reduction, diffusion for industrial lighting. Feature: Area classification Ordinary/Non-Hazardous Locations and ingress protection IP66. Benefit: Regulatory alignment and dependable protection for non-hazardous industrial sites. Application: Warehouses, workshops, and processing rooms. Long-tail keywords: ordinary locations lighting, industrial IP66 protection, non-hazardous area fixture.
Get a Quick Quote for a Eaton FPS232
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS232?
Enquire Now
FAQs
FPS232 uses a through-feed configuration with one non-metallic cable gland and one end plugged, simplifying field wiring. The unit supports 120–277 VAC and 50/60 Hz, with a 4 ft, 52.8 in body and 2-lamp 32 W layout. The fiberglass-reinforced polyester housing and matte polycarbonate lens resist dirt, impact, and corrosion, easing mounting and maintenance in harsh environments.
FPS232 is a 2-lamp fluorescent fixture designed for 120–277 VAC operation at 50/60 Hz, delivering 32 W total. It uses T8 bi-pin lamps with a 4 ft lamp length and a matte polycarbonate lens. The unit's weight is 17 lb, with a 52.8 in length, enabling long-run installations and straightforward ballast compatibility.
Yes, FPS232 is rated IP66 and NEMA 4X, with an ordinary/non-hazardous area classification. Its fiberglass-reinforced polyester housing and rugged lens provide vandal and weather resistance, making it suitable for warehouses, manufacturing floors, and outdoor facilities in non-hazardous locations.
FPS232 complies with NEC/CEC standards and carries NEMA 4X and IP66 ratings, suitable for ordinary/non-hazardous locations. This combination ensures electrical code compliance, environmental protection, and safe operation in manufacturing, warehousing, and similar settings.
Designed for durability, FPS232 reduces maintenance frequency with a robust fiberglass-reinforced polyester housing, matte lens diffusion, and a two-lamp configuration that extends intervals between replacements. The 120–277 VAC range and through-feed wiring simplify upgrades and retrofits, lowering lifecycle costs while delivering consistent illumination in critical production areas.
