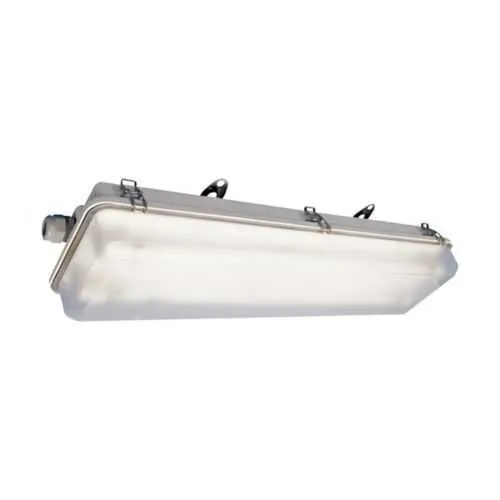

Eaton FPS232H2 Linear Fluorescent Light Fixture - IP66
Part Number: FPS232H2
Quick Summary
Eaton FPS232H2 linear fluorescent light fixture delivers reliable, high-quality illumination for industrial spaces such as manufacturing floors, warehouses, and utility rooms. Facility teams often face corrosive atmospheres, tight ceilings, and frequent vibrations that complicate long-life lighting. The FPS232H2 meets these challenges with a fiberglass-reinforced polyester housing, IP66 rating, and NEMA 4X protection, ensuring dependable operation in harsh conditions. Certified for ordinary/non-hazardous locations and aligned with NEC/CEC standards, this through-feed fixture reduces maintenance and simplifies compliance. By supporting 120-277 Vac power, 50/60 Hz, and a 4 ft, two-lamp 32W lamp configuration, it delivers efficient illumination with minimal energy waste, while enabling straightforward retrofits with existing through-feed circuits.
Product Information
Extended Description
FPS232H2 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture,3/4" NPT hubs,50/60 Hz,4 ft lamp,Fluorescent,Matte polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS232H2
UPC
662276496958
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T8 bi-pin
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry size
3/4"
Entry type
NPT hubs
Lens material
Matte polycarbonate
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS232H2
Feature → Business Impact → Application: Rugged housing built from fiberglass-reinforced polyester provides excellent resistance to harsh industrial environments, reducing corrosion-related downtime and extending service life in wash-down and dusty areas. This through-feed design with 3/4" NPT hubs streamlines mounting and wiring, cutting installation time and labour costs for new builds or retrofits in manufacturing plants. The 52.8 in length, 7.63 in width, and 5 in height deliver broad, uniform coverage for long aisleways and open-floor spaces, while a matte polycarbonate lens protects against impact and scratching in high-traffic facilities. The 2-lamp, 32W configuration at 120–277 Vac and 50/60 Hz delivers energy-efficient lighting with dependable performance across a wide power range, supporting cost control and reduced energy bills. Compatibility with standard T8 bi-pin lamps simplifies lamp replacement and inventory management, lowering maintenance complexity and downtime. By meeting NEC/CEC standards and IP66/NEMA 4X ratings, the FPS232H2 provides compliant illumination for ordinary/non-hazardous locations and non-restrictive industrial environments, minimizing regulatory risk during audits. Early-life reliability, weather resistance, and through-feed installation collectively reduce total cost of ownership and improve facility uptime.
Get a Quick Quote for a Eaton FPS232H2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS232H2?
Enquire Now
FAQs
FPS232H2 is designed for through-feed mounting with 3/4 inch NPT hubs, enabling streamlined wiring and conduit routing. Plan for a 52.8 inch housing length and a 120-277 Vac supply across 50/60 Hz, ensuring the feed is accessible from the fixture’s entry points. Proper support brackets and sealants should be used to maintain IP66/NEMA 4X integrity in wash-down areas.
Yes. FPS232H2 is specified for 120-277 Vac operation over a broad 50/60 Hz frequency range, enabling compatibility with most industrial power systems without the need for transformers or ballast changes. This flexibility reduces installation complexity and supports energy-efficient operation with standard fluorescent ballast configurations.
FPS232H2 is intended for Ordinary/Non-Hazardous Locations per its area classification. It carries NEC/CEC standards alignment, plus IP66 ingress protection and a NEMA 4X enclosure rating, confirming suitability for wet, dusty, and rugged industrial environments while meeting regulatory requirements.
The fixture uses a fiberglass-reinforced polyester housing and matte polycarbonate lens to resist routine wear and tear, extending service life in challenging spaces. With a through-feed design and standard 2-lamp, 32W T8 bi-pin lamp configuration, lamp replacement is straightforward, inventory is simplified, and downtime is minimized, delivering lower total cost of ownership over the system’s life.
FPS232H2 dimensions are 52.8 inches in length, 7.63 inches in width, and 5 inches in height, with an approximate weight of 17 pounds. These specs support stable mounting, predictable clearance in ceiling spaces, and compatibility with standard industrial mounting hardware.
