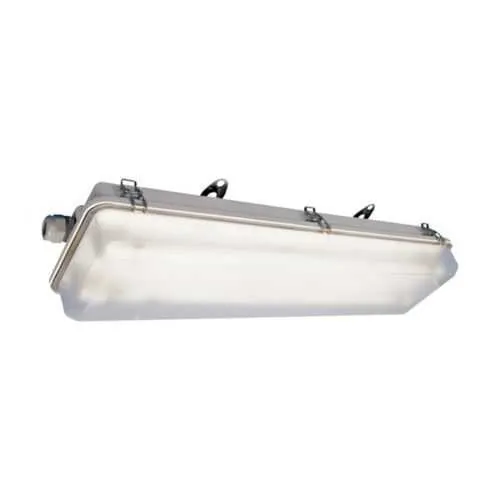

Eaton FPS240EM2 Linear Fluorescent Light - IP66
Part Number: FPS240EM2
Quick Summary
FPS240EM2 is an industrial linear fluorescent light fixture delivering reliable illumination for through-feed, non-hazardous locations. Users often struggle with equipment that fails in wet or dusty environments, causing unplanned downtime. This unit carries NEC/CEC compliance, NEMA 4X protection, and IP66 ingress protection, ensuring performance and safety in harsh facilities. In practice, it pairs a rugged housing with an emergency back-up option and through-feed installation to lower maintenance costs and extend service life for industrial lighting programs.
Product Information
Extended Description
FPS240EM2 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent,1 non-metallic cable gland,1 end plugged,60 Hz,4 ft,Matte polycarb lens,T12 bi-pin,FRP,2-lamp,battery back-up,one lamp,277V max,Through feed,120 Vac,40W/34W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS240EM2
UPC
662276396036
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T12 bi-pin
Wattage
40W/34W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS240EM2
Through-feed design and a 52.8 in length enable continuous lighting along production lines, reducing fixture gaps and improving visibility across work zones. The IP66/NEMA 4X enclosure provides robust water, dust, and impact resistance, delivering reliable operation in dusty warehouses and damp environments. With 2-lamp, 4 ft configuration and 120 VAC at 60 Hz, it aligns with standard electrical infrastructure, enabling straightforward retrofits and consistent performance across facilities. The option for emergency battery back-up ballast supports one-lamp operation at up to 277V, ensuring critical lighting during outages and improving safety compliance. The fiberglass-reinforced polyester housing and matte polycarbonate lens offer long service life, resistance to environmental wear, and clear illumination, reducing maintenance cycles and replacement costs. Compatibility with Pauluhn Intrepid systems and through-feed installations simplifies integration into existing lighting plans and pro provides a scalable solution for growing facilities.
Get a Quick Quote for a Eaton FPS240EM2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS240EM2?
Enquire Now
FAQs
Install the FPS240EM2 using the specified one non-metallic cable gland and one end plug. Mount along a 4 ft section to maintain continuous illumination and connect to standard 120 VAC, 60 Hz power. Ensure the housing remains intact to preserve IP66 protection and track the through-feed wiring route for reliable power distribution.
FPS240EM2 carries a NEMA 4X rating and IP66 ingress protection, suitable for ordinary/non-hazardous locations. It complies with NEC/CEC standards and is designed for durable operation in non-hazardous industrial environments, making it a compliant choice for facilities seeking rugged, code-worthy lighting solutions.
Yes, the model offers an emergency battery back-up ballast option supporting one lamp with a maximum of 277V. In power loss scenarios, the back-up ballast maintains essential illumination, helping meet safety and code requirements while minimizing downtime and enabling safer egress and workflow continuity.
The fixture uses a fiberglass-reinforced polyester (FRP) housing and a matte polycarbonate lens. These materials provide high impact resistance, corrosion protection, and clear, steady illumination in demanding environments, contributing to longer service life and reduced maintenance in industrial settings.
FPS240EM2 excels in ordinary/non-hazardous industrial locations such as manufacturing floors and warehouses. Its through-feed capability, rugged IP66/NEMA 4X enclosure, and emergency back-up option make it ideal for long runs, harsh environments, and installations where reliable, maintenance-light lighting is essential for productivity and safety.
