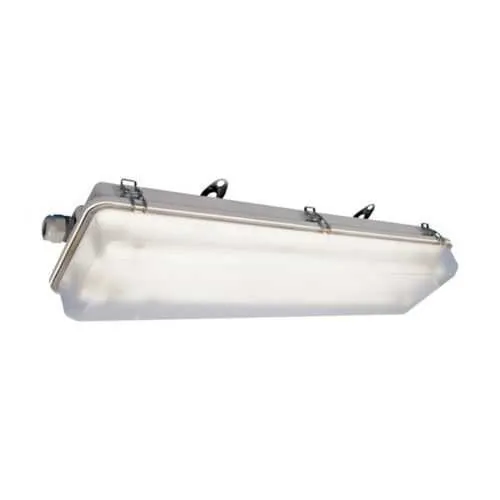

Eaton FPS260LXCT Linear Fluorescent Light Fixture - IP66
Part Number: FPS260LXCT
Quick Summary
The Eaton FPS260LXCT linear fluorescent light fixture delivers robust, high‑efficiency illumination for industrial floors and rugged locations. Facilities frequently encounter maintenance downtime and installation delays when upgrading aged fixtures in harsh environments, making reliability critical. Built for ordinary/non-hazardous locations, this fixture carries IP66 ingress protection and a NEMA 4X enclosure with a fiberglass-reinforced polyester housing, ensuring weather resistance and corrosion tolerance. The through-feed wiring and 4 ft, two-lamp 48W configuration support fast, scalable installations with fewer field connections. With NEC/CEC compliance and included installation literature, it helps maintenance teams meet safety standards while delivering predictable lifecycle costs and improved uptime for production lines and warehouses.
Product Information
Extended Description
FPS260LXCT Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluor,One non-metallic cable gland,one end plugged,4 ft,Clear polycarb lens,T12HO RDC,Fiberglass-reinforced polyester,2-lamp,Lamps,multi-point terminal block,Through feed,120-277 Vac,48W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS260LXCT
UPC
662276874091
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T12HO RDC
Wattage
48W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Clear polycarbonate
Special features
Lamps included, multi-point terminal block
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS260LXCT
Feature: Rugged enclosure with IP66 ingress protection and NEMA 4X rating, paired with a fiberglass-reinforced polyester housing. Business Impact: Delivers corrosion resistance and washdown compatibility, reducing replacement cycles in harsh environments. Application: Ideal for outdoor locations, docks, and chemical plant perimeters where dust, moisture, and temperature swings are common. Feature: Clear polycarbonate lens and 2‑lamp 48W configuration (T12HO RDC). Business Impact: Provides durable, impact‑resistant illumination with consistent lumen output, lowering maintenance calls and energy waste. Application: Factory floors and loading bays requiring reliable, uniform brightness across long runs. Feature: Through-feed wiring with one non-metallic cable gland and one end plug. Business Impact: Speeds installation, reduces field wiring errors, and simplifies retrofit projects. Application: New installs and upgrades in constrained ceilings or existing FPS mounting footprints. Feature: 120–277 VAC, 50/60 Hz operation and plug‑in compatibility. Business Impact: Flexible power sourcing, easier stocking, and compatibility with mixed electrical systems. Application: Broad facility footprints with varying supply conditions. Feature: NEC/CEC compliance and ordinary/non-hazardous area classification; Lamps included and multi‑point terminal block. Business Impact: Regulatory confidence, safer commissioning, and reduced total cost of ownership through simplified maintenance. Application: General industrial facilities seeking reliable, code-compliant lighting with straightforward servicing.
Get a Quick Quote for a Eaton FPS260LXCT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS260LXCT?
Enquire Now
FAQs
FPS260LXCT supports through-feed wiring with a single non-metallic cable gland and one end plug, designed for 4 ft runs and standard mounting patterns. It integrates into existing Pauluhn Intrepid frames and accepts typical through-feed configurations, enabling fast retrofits or new builds without extensive rewiring. Installation docs from Eaton provide step-by-step guidance for mounting, wiring, and lens orientation to ensure optimal performance and safety.
Key protections include IP66 ingress protection and a NEMA 4X enclosure, paired with a fiberglass‑reinforced polyester housing. This combination delivers superior resistance to dust, water exposure, and corrosion, making the fixture appropriate for washdown areas, outdoor entrances, and harsh industrial spaces where reliability is critical and maintenance cycles must be minimized.
The two-lamp 48W setup provides balanced, high‑quality illumination with lower heat output compared with higher‑wattage single-lamp solutions. This improves energy efficiency, reduces ballast heat in enclosed spaces, and preserves lumen maintenance over time. With T12HO RDC lamps, facilities achieve consistent lighting across 4‑ft spans, supporting safer operations and easier adherence to workplace illumination standards.
Yes, FPS260LXCT adheres to NEC/CEC standards and is classified for ordinary/non-hazardous locations. Its IP66 and NEMA 4X protections further reinforce compliance by delivering robust environmental protection. This makes it a compliant choice for general industrial facilities, warehouses, and assembly lines where safety, uptime, and regulatory alignment are essential.
With a rugged fiberglass-reinforced housing and clear polycarbonate lens, FPS260LXCT is built for long service life in demanding environments. The fixture ships with lamps included and features a through-feed design that reduces field wiring points, lowering maintenance calls. Its robust protection and standardized NEC/CEC compliance contribute to lower total cost of ownership through extended intervals between replacements and simpler service routines.
