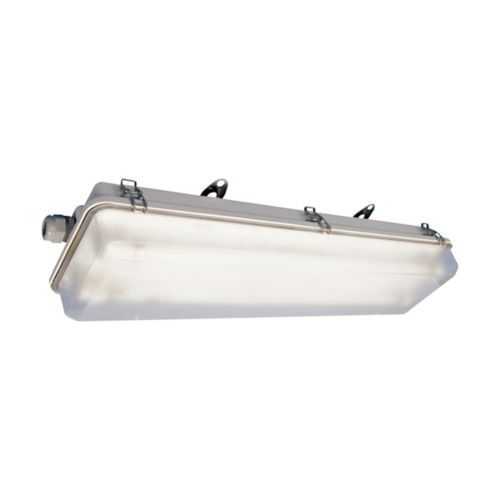

Eaton FPS317EM2RV-1 Linear Fixture - IP66 Rated
Part Number: FPS317EM2RV-1
Quick Summary
FPS317EM2RV-1 is a robust linear fluorescence light fixture designed for industrial facilities. When uptime and reliability matter, inconsistent lighting and corroded enclosures can stall maintenance and slow productivity. This unit carries IP66 and NEMA 4X ratings for harsh environments and NEC/CEC compliance, delivering durable protection and code conformance. Coupled with its through-feed design and emergency battery-backup ballast, it supports efficient installations and safer operations for facilities running 120–277 VAC, making it a practical choice for industrial lighting solutions that prioritize reliability and maintenance efficiency.
Product Information
Extended Description
FPS317EM2RV-1 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluor,1 non-metallic cable gland,1 end plugged,2 ft,Matte polycarb lens,T8 bi-pin,FRP,3-lamp,battery back-up,one lamp,277V max,red filter tube,Through feed,120-277 Vac,17W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS317EM2RV-1
UPC
662276396272
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
3-lamp
Lamp length
2 ft
Light type
T8 bi-pin
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, red filter tube with separate ballast (one lamp)
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS317EM2RV-1
Feature → Business Impact → Application: The FPS317EM2RV-1 uses a 3-lamp, 2 ft lamp length with 17W per lamp and a T8 bi-pin configuration, delivering reliable illumination while controlling energy costs in large work bays and production lines. This translates to measurable productivity gains and predictable lighting performance in industrial facilities, where consistent output minimizes downtime. The IP66 and NEMA 4X rated fiberglass-reinforced polyester housing provides rugged protection against dust, water, and corrosion, ensuring long life in washdown or dusty environments and reducing replacement cycles for facility managers. The matte polycarbonate lens guards against impacts while maintaining clear visibility, supporting safer operation in high-traffic areas and maintenance corridors. An emergency battery-backup ballast and a dedicated red filter tube offer safety-critical illumination during power loss, reducing exposure risk during outages and streamlining emergency planning. Through-feed wiring with one non-metallic gland and one end plug simplifies installation, minimizes field splices, and improves retrofit confidence for existing Pauluhn Intrepid FPS systems. Overall, the combination of rugged enclosure, energy-efficient lamps, and emergency features aligns with maintenance-friendly industrial lighting strategies that seek lower total cost of ownership and improved compliance in non-hazardous locations.
Get a Quick Quote for a Eaton FPS317EM2RV-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS317EM2RV-1?
Enquire Now
FAQs
FPS317EM2RV-1 supports a through-feed entry type with one non-metallic cable gland and one end plug, which minimizes field splices and simplifies wiring. For installation, align the fixture in the desired run, connect to 120–277 VAC power at 50/60 Hz, and secure the housing to the mounting surface. This design reduces installation time and provides a clean, reliable electrical connection suitable for Pauluhn Intrepid FPS series retrofits and new builds.
The fixture operates on 120–277 VAC at 50/60 Hz and delivers 17W per lamp across a 3-lamp configuration, with a 2 ft lamp length. It is designed for applications requiring 277V max, while supporting standard facility voltages, ensuring compatibility with mixed electrical environments. The emergency ballast feature adds resilience for uptime, which is critical in manufacturing and distribution settings.
Yes, FPS317EM2RV-1 is specified for Ordinary/Non-Hazardous Locations and meets NEC/CEC standards. It carries IP66 ingress protection and a NEMA 4X enclosure rating, providing robust protection in dusty or wet conditions. These certifications help ensure compliance with typical industrial facility codes while offering durable performance in non-hazardous environments.
Yes, this model features an emergency battery-backup ballast that supports one lamp operation during power outages, along with a dedicated red filter tube for signaling. This capability is essential for maintaining visibility during outages and supports safety protocols in critical work areas, reducing downtime and improving emergency readiness.
The rugged fiberglass-reinforced polyester housing, IP66/NEMA 4X protection, and matte polycarbonate lens minimize corrosion, moisture ingress, and impact damage, lowering replacement cycles. The through-feed wiring reduces field wiring labor, while the emergency ballast decreases downtime during outages. Together, these features translate to lower maintenance costs and a favorable return on investment for industrial facilities.
