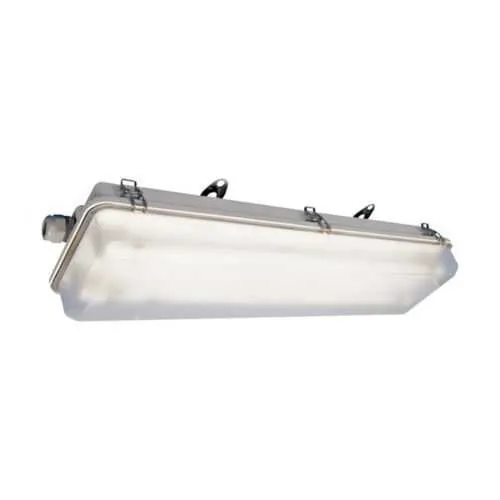

Eaton FPS320 Linear Fluorescent Light Fixture - IP66 NEMA 4X
Part Number: FPS320
Quick Summary
The Eaton FPS320 Linear Fluorescent Light Fixture delivers reliable illumination for industrial facilities. This through-feed fixture supports 3-lamp operation with a 2 ft lamp length, offering consistent brightness in long runs. Operators often face corrosion, moisture, and vibration in harsh environments; the FPS320 addresses these through a fiberglass-reinforced polyester housing and a matte polycarbonate lens. With IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC compliance, it is suitable for ordinary/non-hazardous locations while resisting dust, water jets, and corrosion. By pairing robust construction with simple wiring and captive components, this fixture reduces maintenance downtime and extends service life. The model also aligns with through-feed installation workflows and industry-standard T12 bi-pin lamps, supporting reliable, scalable lighting strategy for facilities.
Product Information
Extended Description
FPS320 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,60 Hz,2 ft,Matte polycarbonate lens,T12 bi-pin,Fiberglass-reinforced polyester,3-lamp,Through feed,120 Vac,20W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS320
UPC
662276396302
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
3-lamp
Lamp length
2 ft
Light type
T12 bi-pin
Wattage
20W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FPS320 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS320
Feature: Three-lamp, 2-ft lamp length configuration provides extensive coverage with minimal segments. Business impact: Reduces fixture count in long runs, lowering installation time and total cost of ownership. Application: Warehouses and production lines where continuous, uniform light is essential. Feature: IP66 ingress protection and a NEMA 4X enclosure protect against dust, moisture, and corrosive environments. Business impact: Fewer maintenance events and longer service life in washdown or damp areas. Application: Clean rooms, wash-down zones, and outdoor-adjacent spaces in industrial plants. Feature: Fiberglass-reinforced polyester housing resists corrosion and is non-metallic to minimize electrical fault pathways. Business impact: Lower maintenance costs and improved reliability in harsh chemical or humid settings. Application: Chemical processing, water treatment, and outdoor facilities. Feature: Through-feed wiring with one non-metallic cable gland and one end plug for straightforward field terminations. Business impact: Faster installation, reduced labor, easier retrofits and scalability. Application: Retrofit projects and new builds with standardized electrical booting. Feature: Matte polycarbonate lens offers durable, impact-resistant illumination with clear visibility. Business impact: Maintains light output and reduces lens replacement cycles. Application: High-traffic manufacturing floors and loading docks.
Get a Quick Quote for a Eaton FPS320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS320?
Enquire Now
FAQs
Plan the through-feed wiring with a single non-metallic cable gland and an end plug, then mount using standard supports sized for a 28.8 in by 7.63 in fixture. Ensure seals around the lens and housing to maintain IP66 integrity, connect to a 120 VAC supply, and verify NEC/CEC compliance before energizing.
FPS320 uses three 2-ft fluorescent lamps at 20 W each, totaling 60 W. It runs on 120 VAC, 60 Hz, with a T12 bi-pin lamp type. The fixture features a fiberglass-reinforced polyester housing with a matte polycarbonate lens and through-feed wiring, weighing about 9 lb and designed for rugged industrial environments.
Yes, FPS320 is intended for ordinary/non-hazardous locations and complies with NEC/CEC standards, with IP66 ingress protection and a NEMA 4X enclosure for dust, water, and corrosion resistance. The non-metallic cable gland reduces corrosion risk in damp environments, making it suitable for utility rooms, warehouses, and similar facilities.
IP66 and NEMA 4X ensure enclosure integrity against washdowns, dust, and moisture, reducing corrosion and component wear. Maintenance benefits include fewer gasket replacements and longer service life. Field servicing is straightforward due to through-feed wiring and end-plug entry; maintain proper seals to preserve protection during routine servicing.
Although initial cost may be higher than basic fixtures, FPS320 delivers long-term savings through durability in harsh environments, reduced downtime, and lower maintenance labor. The 60 W total draw supports efficient lighting plans for warehouses, plants, and process lines, delivering predictable lifecycle performance and lowered operating expenses over time.
