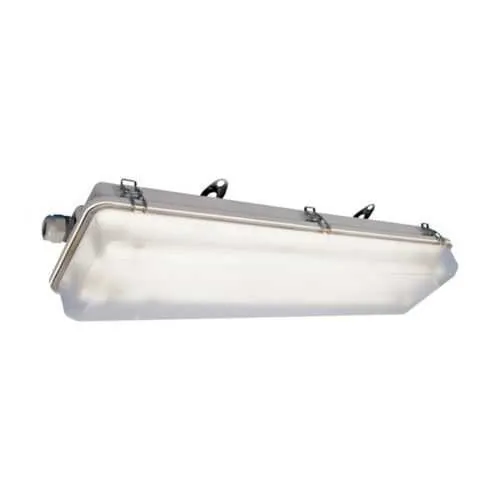

Eaton FPS320LRV-1 Fluorescent Light Fixture - IP66/NEMA 4X
Part Number: FPS320LRV-1
Quick Summary
Eaton FPS320LRV-1 Fluorescent light fixture delivers robust illumination for industrial environments. The unit is designed to endure harsh conditions while delivering dependable 2 ft, 3-lamp output to keep production lines moving. In many facilities, wiring and maintenance bottlenecks slow projects; this fixture addresses that with through-feed wiring and a ready-to-install configuration. It carries critical protections including IP66, NEMA 4X, and NEC/CEC compliance, supporting safe operation in ordinary locations. With a fiberglass-reinforced polyester housing, matte polycarbonate lens, and lamps included, it also reduces downtime and total cost of ownership while aligning with your facility’s reliability goals and energy-management strategies.
Product Information
Extended Description
FPS320LRV-1 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent,One non-metallic cable gland,one end plugged,60 Hz,2 ft,Matte polycarb lens,T12 bi-pin,Fiberglass-reinforced polyester,3-lamp,Lamps,red filter tube,Through feed,120 Vac,20W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS320LRV-1
UPC
662276874107
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
3-lamp
Lamp length
2 ft
Light type
T12 bi-pin
Wattage
20W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Special features
Lamps included, red filter tube with separate ballast (one lamp)
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS320LRV-1
Fiberglass-reinforced polyester housing provides excellent chemical and mechanical resistance, delivering durable performance in demanding environments and lowering replacement costs for corrosive or abrasive processes. This translates to fewer unscheduled outages and extended equipment life in paint booths, washdown areas, or outdoor industrial spaces where exposure to moisture and chemicals is common. The IP66 and NEMA 4X ratings offer proven ingress protection and rugged enclosure integrity, meaning maintenance teams spend less time chasing leaks or corrosion while compliance with NEC/CEC standards remains straightforward and verifiable.
Get a Quick Quote for a Eaton FPS320LRV-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS320LRV-1?
Enquire Now
FAQs
FPS320LRV-1 supports through-feed wiring with a single non-metallic cable gland plus one end plugged configuration, simplifying in-field wiring and enabling you to daisy-chain fixtures to extend illumination across large areas. This reduces installation time and minimizes terminal connections, which is particularly beneficial in long corridors, production lines, or washdown zones where quick, scalable mounting is critical.
FPS320LRV-1 is rated for Ordinary/Non-Hazardous Locations with IP66 and NEMA 4X protection, making it well-suited for dusty or wet areas. It is not certified for hazardous (classified) locations, so facilities processing flammable materials or requiring explosion-proof enclosures should select a more specialized fixture. For standard industrial environments, this unit provides robust protection and compliance with NEC/CEC requirements.
The fixture operates at 120 VAC, 60 Hz and is a 2 ft, 3-lamp configuration with 20 W per lamp. It uses a T12 bi-pin lamp type and includes lamps in the package. The design supports a separate ballast option for one lamp and includes a red filter tube, enabling optional signaling lighting while maintaining a compact, efficient footprint for mid-sized workspaces.
FPS320LRV-1 carries NEC/CEC standards conformance, is rated NEMA 4X, and has IP66 ingress protection. The area classification is Ordinary/Non-Hazardous Locations, making it compliant for typical industrial facilities. These certifications ensure reliability, safety, and consistent performance across harsh environments such as manufacturing floors, storage, and wet areas.
With lamps included and a through-feed wiring design, FPS320LRV-1 reduces installation time and stocking of separate components, accelerating project timelines and minimizing downtime. The rugged housing and high ingress protection translate to lower replacement frequency and extended service life, delivering lower lifecycle costs, improved uptime, and more predictable maintenance planning for facilities relying on continuous operations.
