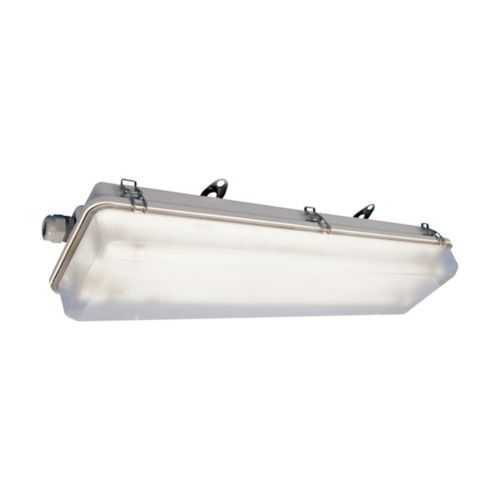

Eaton FPS332EMT2XCT Linear Fluorescent Light Fixture - IP66
Part Number: FPS332EMT2XCT
Quick Summary
Eaton FPS332EMT2XCT is a rugged linear fluorescent light fixture for industrial area illumination. Maintenance downtime and recurring lamp failures drain productivity in harsh environments; this fixture minimizes outages with durable FRP housing and a robust ballast. It carries key certifications—IP66 ingress protection, NEMA 4X enclosure rating, and NEC/CEC compliance—supporting safe operation in ordinary and non-hazardous locations. With through-feed wiring, a 52.8 inch length, and an emergency back-up option, it offers installation flexibility and predictable uptime for retrofit and new installations. Engineers appreciate the clear polycarbonate lens, 32W lamp capacity, and compatibility with 120-277 Vac power, enabling reliable performance across industrial facilities.
Product Information
Extended Description
FPS332EMT2XCT Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent,1 non-metallic cable gland,1 end plugged,4 ft,Clear polycarb lens,T8 bi-pin,FRP,3-lamp,battery,1 lamp,277V max,test switch,multi-point term block,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear fluorescent light fixture
Catalog Number
FPS332EMT2XCT
UPC
662276504547
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.63 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
Fiberglass-reinforced polyester
Number of lamps
3-lamp
Lamp length
4 ft
Light type
T8 bi-pin
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Clear polycarbonate
Special features
Emergency battery back-up ballast, one lamp, 277V maximum, test switch, multi-point terminal block
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FPS332EMT2XCT
Feature: Rugged housing and epoxy-free FRP construction provide excellent chemical resistance and impact durability. Business Impact: Lower maintenance costs and longer service intervals in harsh manufacturing environments. Application: Ideal for chemical plants, washdown zones, and outdoor-rated corridors where exposure to moisture and contaminants is common. Feature: Through-feed design and one non-metallic cable gland plus one end plug simplify installation and future expansion. Business Impact: Reduced wiring time and easier field upgrades, shortening project timelines. Application: Retrofit projects and new builds in production facilities requiring scalable wiring routes. Feature: 52.8 in length, 7.63 in width, 5 in height with 17 lb weight; FRP housing supports long-term durability and straightforward mounting. Business Impact: Space-efficient layout with predictable fit in existing housings and ceiling grids. Application: Large-area lighting layouts in warehouses and assembly lines. Feature: 3-lamp, 32W T8 bi-pin lamps; 120-277 Vac, 50/60 Hz; clear polycarbonate lens. Business Impact: Balanced energy use with strong lamp performance and clear light transmission; easy to source replacement lamps. Application: General illumination across non-hazardous industrial spaces. Feature: IP66 ingress protection and NEMA 4X enclosure; NEC/CEC compliance; ordinary/non-hazardous area classification. Business Impact: Enhanced safety, moisture protection, and regulatory alignment for industrial sites. Application: Environments with dust, humidity, or washdown exposure. Feature: Emergency battery back-up ballast and test switch for reliability during power outages. Business Impact: Continuity of operation and compliant emergency lighting coverage, reducing downtime risk. Application: Critical process areas and egress paths in manufacturing plants. Feature: Through-feed, 277V maximum and robust terminal block; clear polycarbonate lens ensures consistent light quality. Business Impact: Flexible power options and durable optics that minimize maintenance needs. Application: Multi-zone lighting schemes on factory floors and logistics centers.
Get a Quick Quote for a Eaton FPS332EMT2XCT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FPS332EMT2XCT?
Enquire Now
FAQs
FPS332EMT2XCT supports through-feed wiring and includes a single non-metallic cable gland plus an end plug, enabling straightforward integration into Pauluhn Intrepid layouts. Its FRP housing and 52.8 in length fit common industrial ceiling grids, while the 3-lamp, 32W configuration aligns with typical maintenance schedules and retrofit upgrades. This makes it a reliable choice for expanding or upgrading existing linear fluorescent systems without extensive rework.
The fixture operates at 120-277 Vac with a 50/60 Hz frequency, using 32W lamps across a 3-lamp array. Its T8 bi-pin lamp type and clear polycarbonate lens optimize light output and durability. These specs translate to energy-efficient operation, broad compatibility with standard building power, and predictable lumen maintenance, reducing maintenance costs and energy waste in industrial environments.
This luminaire excels in ordinary/non-hazardous locations such as manufacturing floors, warehouses, maintenance corridors, and assembly lines. The IP66 ingress protection, NEMA 4X enclosure, and rugged FRP housing provide reliable protection against dust, moisture, and impacts, making it a robust choice for washdown areas and spaces with challenging exposure without requiring specialized hazardous-location ratings.
FPS332EMT2XCT aligns with NEC/CEC standards and carries IP66 ingress protection along with a NEMA 4X rating, signaling strong environmental protection and electrical safety compliance. Its ordinary/non-hazardous area classification simplifies regulatory approval for most commercial and industrial facilities, supporting safer installations and streamlined procurement in non-hazardous zones.
The fixture includes an emergency battery back-up ballast and a test switch, ensuring reliable operation during power interruptions and improving safety compliance. Its durable FRP housing and polycarbonate lens reduce maintenance frequency, while the through-feed design accelerates installation and future expansions. Together, these features provide lower lifecycle costs and faster payback in continuous-operation facilities.
