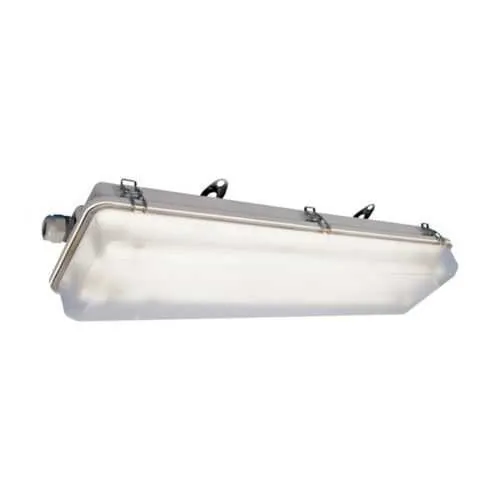

Eaton FPS354H2EMT2 Light Fixture - IP66/NEMA 4X

The FPS354H2EMT2 combines a fiberglass-reinforced polyester housing with a matte polycarbonate lens to deliver a durable, 4 ft, 3-lamp lighting solution. This feature translates to improved impact resistance, chemical compatibility, and extended service life in demanding environments, reducing replacement costs and downtime. In manufacturing floors and warehouse aisles, the robust chassis supports reliable operation under wash-down, dust, and vibration conditions. Through-feed capability with 3/4 inch NPT hubs and entry options enables a clean, scalable installation across long runs. The design supports daisy-chaining and simplified field wiring, which lowers labor time at commissioning and minimizes wiring errors. For projects with tight schedules, this compatibility accelerates deployment while maintaining code-compliant connections. Flexible power design spans 120–277 VAC at 50/60 Hz, giving installers a single solution for multi-volt facilities and repurposing spares across sites. The 54 W lumen package delivers ample lighting for product lines without excessive energy use, contributing to lower operating costs and better heat management. With T5HO mini bi-pin lamps, maintenance cycles can be scheduled predictably. Seal and protection: IP66 ingress protection and NEMA 4X enclosure safeguard against dust, water jets, and corrosive environments in ordinary locations. The optional emergency battery back-up ballast (277 V max, test switch) ensures critical areas remain illuminated during power outages, supporting safety compliance and safer egress, especially in loading docks, mechanical rooms, and process areas. The 52.8 inch length, 7.63 inch width, 5 inch height profile aligns with common mounting footprints, easing retrofits and new builds.
