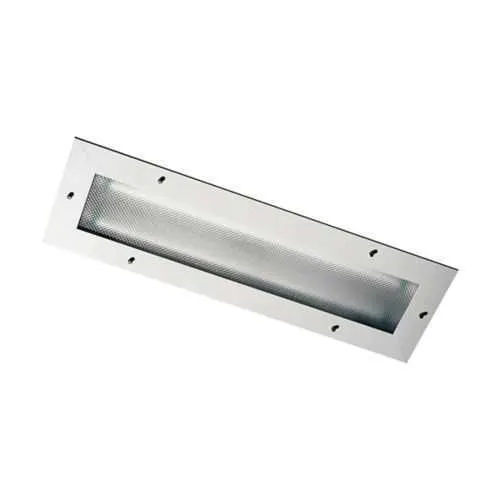

Eaton FR232J Marine Interior FR Lighting - 2-lamp T8 NEC/CEC
Part Number: FR232J
Quick Summary
FR232J marine interior lighting from Eaton provides robust 2-lamp T8 illumination for shipboard interiors. This fixture addresses the common challenge of reliable, maintenance-friendly lighting in tight, corrosive environments where downtime is costly. It carries NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations, delivering predictable performance in standard marine conditions. The aluminum housing with an acrylic lens resists corrosion while maintaining bright, even light. Designed for recessed ceiling installation, FR232J helps reduce install time and inventory complexity, supporting vessel retrofits and new builds with a single, versatile solution. With universal 120–277 Vac input and 50/60 Hz operation, it simplifies electrical design and stock management for marine projects.
Product Information
Extended Description
FR232J Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FR marine interior, 50/60 Hz, 4 ft, Acrylic lens, T8, Aluminum, Recessed ceiling mount, 2-lamp, 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FR marine interior
Catalog Number
FR232J
UPC
662276396760
Product Length/Depth
53.13 in
Product Height
4.94 in
Product Width
9.13 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T8
Number of lamps
2-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Aluminum
Lens material
Acrylic
Crouse-Hinds series FR Marine Interior Recessed Lights catalog page
IF LBL1495 - FR Fluorescent Luminaires
Eaton Specification Sheet - FR232J
Feature → Business Impact → Application. The FR232J uses a 4 ft, 2-lamp, 32 W, T8 configuration, delivering efficient illumination with a compact footprint that reduces wiring depth and panel impact on crowded vessel ceilings; this translates to lower installation time and reduced material costs on shipboard retrofits. The aluminum housing paired with an acrylic lens offers robust corrosion resistance and durable light diffusion, extending service life in humid, salt-air environments while maintaining easy cleaning and maintenance access in engine rooms and galleys. With a recessed ceiling mounting method and a 53.13 in length, the fixture delivers a clean, professional look that minimizes protrusions in tight marine interiors, enabling safer passageways and streamlined headroom. Universal 120–277 Vac voltage and 50/60 Hz compatibility simplify electrical design, reducing parts variance and enabling a single SKU for multiple vessels. NEC/CEC compliance and Ordinary/Non-Hazardous Location suitability address regulatory requirements, improving audit readiness and minimizing retrofit risk. The 14 lb weight and precise dimensions support logistics planning and on-site handling during installation, eliminating surprises and delays on fleet-wide projects.
Get a Quick Quote for a Eaton FR232J
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FR232J?
Enquire Now
FAQs
FR232J is designed for recessed ceiling mounting with a 4 ft length, 53.13 in overall run, and 14 lb weight. For shipboard installations, use standard ceiling cutouts sized to match the housing, ensure appropriate wiring within the 120–277 Vac, 50/60 Hz range, and follow NEC/CEC guidelines. The fixture ships ready for recessed mounting to minimize protrusion and improve safety in walkways.
FR232J operates at 120–277 Vac with a 50/60 Hz frequency rating, delivering 32 W total across two 4 ft T8 lamps. It is engineered for universal voltage input to simplify electrical design on mixed fleets, reducing the need for multiple part numbers and enabling a single SKU to cover multiple vessel applications.
Yes. FR232J carries NEC/CEC standards and is specified for Ordinary/Non-Hazardous Locations, making it appropriate for general shipboard interiors such as crew spaces, corridors, and non-hazardous compartments. This alignment reduces compliance risk during audits and supports smoother approvals in regulated maritime environments.
The aluminum housing and acrylic lens provide robust corrosion resistance in salt-air environments, while the recessed design protects internal components from impact and moisture. Its 2-lamp, 32 W configuration offers energy efficiency and reduced replacement frequency compared with higher-wattage alternatives, lowering operating costs and maintenance cycles on fleets.
FR232J measures 53.13 in in length, 4.94 in high, and 9.13 in wide, with a shipping weight of about 14 lb. Such dimensions aid logistics planning for palletization and on-deck installation. The fixed 4 ft lamp length and 2-lamp configuration simplify parts stocking and cross-compatibility with existing FR interior lighting inventories.
