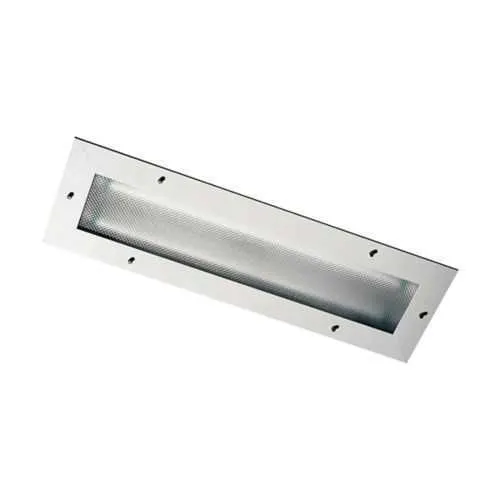

Eaton FR332J Marine Interior Recessed Light - NEC/CEC
Part Number: FR332J
Quick Summary
The Eaton FR332J marine interior recessed light provides reliable 4 ft, 3-lamp illumination for shipboard interiors. In crowded engine rooms and cabins, ballast compatibility and corrosion resistance often drive maintenance costs; FR332J addresses these pain points with rugged, serviceable design. It is NEC/CEC compliant for Ordinary/Non-Hazardous locations and supports 50/60 Hz operation, aligning with marine standards and international regulations. The recessed ceiling mount, aluminum housing, and acrylic lens deliver durable marine lighting that can be deployed across fleets, reducing installation time and lifecycle costs. Designed for 53.13 in length and 4.94 in height, it integrates seamlessly with 120-277 Vac power systems and 32 W total consumption. This makes it ideal for galleys, crew quarters, and corridors where space is tight and uptime is critical.
Product Information
Extended Description
FR332J Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FR marine interior, 50/60 Hz, 4 ft, Acrylic lens, T8, Aluminum, Recessed ceiling mount, 3-lamp, 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FR marine interior
Catalog Number
FR332J
UPC
662276396913
Product Length/Depth
53.13 in
Product Height
4.94 in
Product Width
14.25 in
Product Weight
22 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T8
Number of lamps
3-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Aluminum
Lens material
Acrylic
Crouse-Hinds series FR Marine Interior Recessed Lights catalog page
IF LBL1495 - FR Fluorescent Luminaires
Eaton Specification Sheet - FR332J
Feature: 4 ft length with 3-lamp configuration and 32 W total consumption. Business Impact: Enables long runs of uniform illumination with energy efficiency and predictable ballast requirements, reducing operating costs. Application: Ideal for shipboard corridors and bulkhead runs where continuous lighting improves safety and workflow. Feature: Aluminum housing and acrylic lens provide corrosion resistance and impact durability. Business Impact: Extends service life in salt-air marine environments, lowering maintenance intervals and replacement parts. Application: Suitable for cabins, galleys, and weather-exposed interior spaces. Feature: Recessed ceiling mounting creates a low-profile, space-efficient installation. Business Impact: Simplifies integration into standard shipboard ceilings, cuts installation time, and minimizes overhead obstruction. Application: Fleet-wide retrofits and new-build interiors with tight clearances. Feature: 50/60 Hz operation and universal 120-277 VAC compatibility. Business Impact: Flexible power compatibility reduces the need for voltage conversion, improving reliability and uptime. Application: Marine power systems across various vessels without custom ballast changes. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Business Impact: Regulatory compliance lowers inspection risk and accelerates commissioning. Application: Vessel interiors that require standard electrical safety compliance, such as mess halls and crew quarters. Feature: Dimensional and weight specifications—53.13 in length, 14.25 in width, 4.94 in height; 22 lb weight. Business Impact: Enables precise space planning and safe overhead mounting with predictable load. Application: Ceiling-grid installations in galleys, cabins, and passageways across fleets.
Get a Quick Quote for a Eaton FR332J
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FR332J?
Enquire Now
FAQs
The FR332J is certified under NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations. This ensures compliance with maritime electrical safety requirements while allowing reliable operation in shipboard interiors where standard lighting is required. The fixture is designed for 50/60 Hz operation, supporting typical marine power systems without special ballast adaptations.
Yes. The FR332J is specified for 120-277 VAC with a 50/60 Hz frequency rating, enabling flexible integration across vessels with varying electrical configurations. The 32 W total power consumption across its 3 lamps provides energy efficiency for long voyages and fleet-wide deployments, reducing total cost of ownership while maintaining consistent illumination levels.
The FR332J uses recessed ceiling mounting with overall dimensions of 53.13 inches in length, 14.25 inches in width, and 4.94 inches in height. It weighs about 22 pounds. These specs support predictable layout planning for shipboard ceilings, enabling straightforward retrofits and new-build installations with standard ceiling grids.
Ideal for interior shipboard spaces such as cabins, galleys, corridors, and crew quarters, the FR332J provides reliable 4 ft T8 illumination across multiple lamps. Its rugged aluminum housing and acrylic lens withstand humid, salt-air environments, while the recessed design minimizes profile and optimizes space for shared passages and living areas.
The 32 W 3-lamp configuration delivers efficient lighting with low energy consumption, contributing to reduced fuel and electrical costs on ships. Its durable housing and lens minimize corrosion-related maintenance, while the recessed design facilitates faster installs and fewer components exposed to the marine atmosphere. Documentation including LBL1495 instructions supports streamlined commissioning and long-term reliability.
