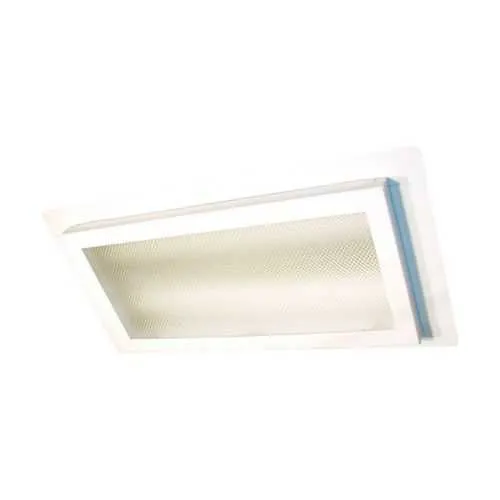

Eaton FRD214 Marine Interior Recessed Luminaire - NEC/CEC
Part Number: FRD214
Quick Summary
Eaton FRD214 Marine Interior Recessed Luminaire provides efficient fluorescent lighting for marine interior spaces. Engineered for spaces with tight ceilings and corrosive environments, this 2-lamp fixture minimizes intrusion while delivering reliable, long-lasting illumination. It aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous locations, thanks to a galvanized steel housing and an acrylic lens that resist marine exposure. For fleet operators and contractors, the FRD214 delivers energy efficiency, straightforward installation, and scalable performance across vessels, supporting reliable crew comfort and compliance-driven maintenance programs.
Product Information
Extended Description
FRD214 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 2 ft, Acrylic lens, T5, Galvanized steel, Recessed ceiling mount, 2-lamp, 120-277 Vac, 14W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD214
UPC
662276459854
Product Length/Depth
27 in
Product Height
3.75 in
Product Width
10.81 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T5
Number of lamps
2-lamp
Wattage
14W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Eaton Crouse-Hinds FRD214 3D drawing
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD214
The 2-lamp, 14W T5 configuration reduces energy consumption while maintaining adequate lumen output, enabling lower operating costs over long deployments and simplifying lighting planning for duty zones on board. A recessed ceiling mount paired with a galvanized steel housing and an acrylic lens provides robust protection against salt spray and impact, minimizing maintenance downtime and extending service intervals in harsh marine environments. The fixture supports universal 120-277 VAC operation at 50/60 Hz, reducing the need for regional transformers and enabling streamlined procurement for multi-region fleets. Compliance with NEC/CEC standards and suitability for Ordinary/Non-Hazardous locations reduces regulatory risk in cabins, corridors, and general interiors, while a compact 27 in length and 14 lb weight simplifies retrofit and layout planning. The FRD214 also supports straightforward installation with readily available catalogs and CAD resources for efficient project execution.
Get a Quick Quote for a Eaton FRD214
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD214?
Enquire Now
FAQs
FRD214 operates on 120-277 VAC and supports 50/60 Hz, covering most regional shipboard power setups. This universal voltage means fewer transformers and simpler integration with existing lighting circuits. The 2-lamp, 14W configuration provides adequate illumination with low energy draw, reducing generator and battery load during long voyages.
The luminaire measures 27 inches long, 10.81 inches wide, and 3.75 inches high, with a weight of 14 pounds. It uses a 2-foot lamp length and a 2-lamp configuration, designed for recessed ceiling installation. These dimensions support compact ceiling layouts while delivering two-lamp brightness, facilitating retrofit planning on existing vessels.
Yes. FRD214 is rated for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards, making it appropriate for cabins, corridors, and general interiors aboard vessels. Its galvanized steel housing and acrylic lens add corrosion resistance, while the recessed mount maintains clean sightlines and reduces obstruction in tight spaces.
Choose a recessed ceiling mounting for the FRD214; ensure the cutout matches the fixture footprint and use appropriate mounting hardware. The galvanized steel housing provides corrosion resistance, and the acrylic lens protects against impacts. The fixture supports 120-277 VAC supply and a 50/60 Hz service, simplifying commissioning and reducing wiring complexity on multi-deck ships.
The 14W two-lamp design delivers adequate illumination at a low energy cost, reducing ongoing power consumption on long deployments. Easy procurement is supported by universal voltage, NEC/CEC compliance, and straightforward installation. Its durable build, with galvanized steel and acrylic lens, minimizes maintenance cycles and replacement downtime, offering a compelling total cost of ownership for fleet lighting.
