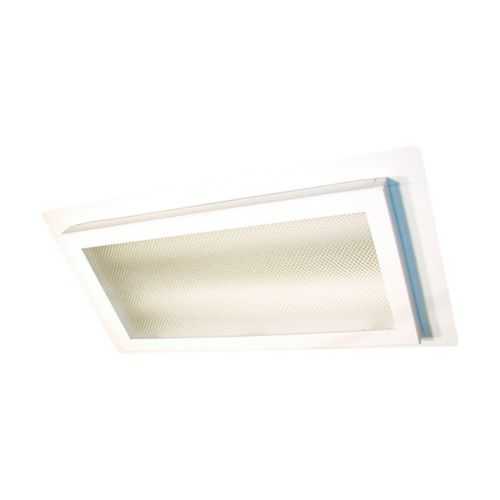

Eaton FRD217 Lighting & Emergency Systems - T8 2-lamp
Part Number: FRD217
Quick Summary
FRD217 lighting & emergency system provides reliable, two-lamp interior illumination for marine environments. Engineers face challenges selecting fixtures that fit tight ceilings, resist corrosion, and tolerate broad mains voltages. Built for ordinary/non-hazardous locations, it meets NEC/CEC standards and operates at 50/60 Hz across 120–277 V. Recessed ceiling mounting, galvanized steel housing, and an acrylic lens combine durability with easy maintenance, while the 2 ft lamp length aligns with modular marine layouts. With 17 watts per lamp, the two-lamp FRD217 delivers energy-efficient performance suitable for long vessel deployments without frequent replacements. This combination supports lower operating costs and improved reliability across fleet deployments.
Product Information
Extended Description
FRD217 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Galvanized steel, Recessed ceiling mount, 2-lamp, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD217
UPC
662276396982
Product Length/Depth
27 in
Product Height
3.75 in
Product Width
10.81 in
Product Weight
11 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Eaton Crouse-Hinds FRD217 3D drawing
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD217
Feature: Dual-lamp 2 ft fluorescent configuration aligns with standard vessel modular layouts. Benefit: Delivers balanced illumination while keeping energy use low, reducing life-cycle costs. Application: Marine interior cabins and corridors where ceiling height and spacing are constrained. Feature: Wide voltage range 120-277 Vac and 50/60 Hz compatibility. Benefit: Simplifies procurement and minimizes transformer needs across diverse shipboard power systems. Application: Retrofit projects and new builds spanning different regional electrical standards. Feature: Recessed ceiling mounting. Benefit: Keeps fixtures flush with overheads, maximizing headroom and improving safety in walkways. Application: Galley, passageways, and accommodation decks. Feature: Galvanized steel housing with acrylic lens. Benefit: Delivers corrosion resistance and moisture protection essential for marine environments with low maintenance. Application: Interior hull spaces exposed to humidity. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Benefit: Ensures regulatory alignment and safer operations on vessels. Application: Regulatory-compliant lighting for marine interiors.
Get a Quick Quote for a Eaton FRD217
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD217?
Enquire Now
FAQs
FRD217 uses a recessed ceiling mounting method designed for tight spaces common in marine interiors. The galvanized steel housing and acrylic lens are built for corrosion resistance, and installation aligns with standard 2 ft lamp fixtures, simplifying retrofits on vessels with limited headroom.
FRD217 is classified for Ordinary/Non-Hazardous Locations and conforms to NEC/CEC standards. This combination supports regulatory compliance on marine vessels and reduces risk when selecting interior lighting for cabins, corridors, and galleys.
Yes. FRD217 operates over 120-277 Vac with a 50/60 Hz frequency rating, enabling seamless use on vessels with differing electrical distributions, minimizing the need for voltage conversion or transformers.
FRD217 features a 2 ft lamp length and a 27 in overall fixture length, designed to fit common FRD interior layouts. Its recessed mounting and modular 2-lamp design support consistent spacing across continuous plank or cabin lighting schemes.
With galvanised steel housing and an acrylic lens, FRD217 offers durable protection against marine humidity and corrosion. The 17W per lamp, 2-lamp configuration helps reduce replacement frequency and maintenance labor, contributing to lower total cost of ownership on vessel deployments.
