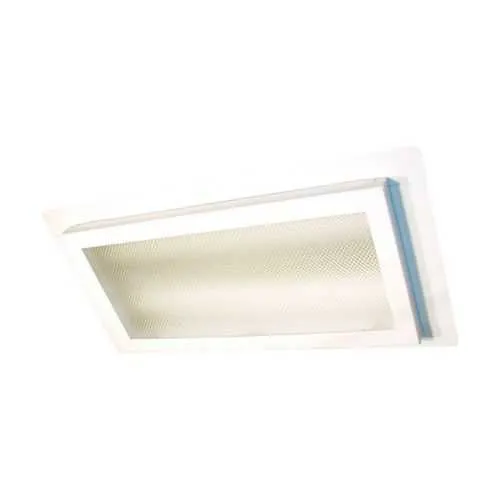

Eaton FRD217EMT2RV-1 Marine Interior FRD Light - NEC/CEC
Part Number: FRD217EMT2RV-1
Quick Summary
Eaton FRD217EMT2RV-1 Marine Interior light delivers energy-efficient illumination for vessel interiors. In marine retrofit projects, engineers grapple with compact spaces, corrosion exposure, and ballast maintenance that drives downtime. The fixture meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, providing a compliant foundation for safer, more reliable operation. Its recessed ceiling design minimizes protrusions, while the emergency back-up ballast and acrylic lens reduce service calls and extend uptime in critical crew areas. With a 120–277 VAC range and a 2-lamp, 17W configuration, it streamlines procurement and installation for marine facilities while delivering predictable energy performance.
Product Information
Extended Description
FRD217EMT2RV-1 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Galvanized steel, Recess ceil mt, 2-lamp, Emer battery, 1 lamp, 277V max., test switch, red filter tube sep ballast (1 lamp), 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD217EMT2RV-1
UPC
662276397002
Product Length/Depth
27 in
Product Height
3.75 in
Product Width
10.81 in
Product Weight
11 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch, red filter tube with separate ballast (one lamp)
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD217EMT2RV-1
Feature: Recessed ceiling mounting. Impact: Reduces space usage and protects the luminaire in confined marine interiors, lowering damage risk. Application: Ideal for crew bunks, corridors, and galleys where ceiling clearance is a constraint. Feature: Two-lamp, 17W T8 configuration. Impact: Delivers bright, reliable light with significantly lower energy use than older fixtures, cutting operating costs. Application: General illumination in mid-size compartments such as engine rooms and control areas. Feature: 120-277 VAC, 50/60 Hz compatibility. Impact: Offers flexible power integration across vessels with mixed electrical systems, simplifying procurement. Application: Retrofit projects and new builds across diverse ships. Feature: Emergency battery-backup ballast with test switch. Impact: Maintains critical illumination during power loss, improving safety and compliance. Application: Escape routes, emergency signaling zones, and high-traffic spaces. Feature: Galvanized steel housing and acrylic lens. Impact: Resists salt spray and corrosion while providing clear illumination and long service life. Application: Marine interiors exposed to humid conditions, with durable enclosures.
Get a Quick Quote for a Eaton FRD217EMT2RV-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD217EMT2RV-1?
Enquire Now
FAQs
FRD217EMT2RV-1 is designed for recessed ceiling mounting with a 27 in length, 3.75 in height, and 10.81 in width. Install per Eaton FRD instructions, use the 2-lamp T8 configuration, and connect to a 120–277 VAC supply. It includes an emergency battery-backup ballast and a test switch to ensure reliable operation in marine interiors.
The luminaire operates on 120–277 VAC at 50/60 Hz with a total of 17W across two 2-foot lamps (2-lamp configuration). It is suited for mixed electrical systems on vessels, and its recessed design facilitates straightforward wiring and mounting in standard shipboard ceilings.
Yes. FRD217EMT2RV-1 is classified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it appropriate for general interior spaces on vessels, including crew areas and corridors, where typical maritime safety requirements apply.
The fixture adheres to NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. While it does not list SIL or IP certifications, its marine interior construction, back-up ballast, and recessed ceiling design meet common shipboard installation codes and safety expectations.
The 17W two-lamp configuration delivers energy savings compared with older fluorescent fixtures, reducing operating costs over the life of the asset. The emergency ballast ensures continued illumination during outages, lowering downtime. Durable galvanized steel housing and acrylic lens also reduce maintenance needs in salt-air environments, contributing to a favorable total cost of ownership.
