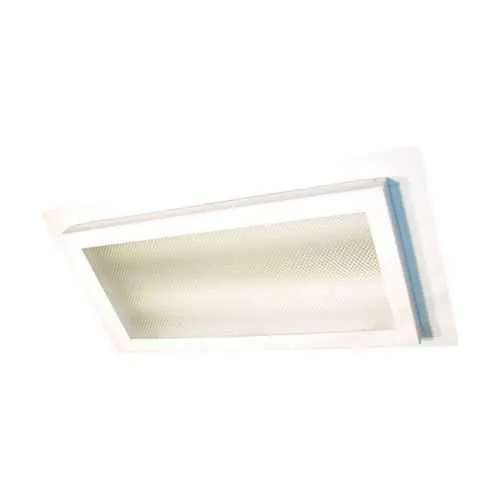

Eaton FRD217LFT Marine Interior Light - NEC/CEC
Part Number: FRD217LFT
Quick Summary
Eaton FRD217LFT marine interior light provides reliable fluorescent illumination for shipboard interiors. Maintaining brightness in damp, vibration-prone spaces can be costly and uncertain. This luminaire carries NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, supporting safe operation in crew areas, cargo holds, and engine spaces. By combining energy efficiency with rugged galvanized housing and an acrylic lens, it reduces maintenance intervals and provides consistent performance in harsh marine environments. Its recessed ceiling mount and pre-wired through-feed design simplify installation, while 120-277 VAC operation at 50/60 Hz ensures compatibility across global fleets. This makes FRD217LFT a practical choice for dependable, regulation-compliant marine interior lighting.
Product Information
Extended Description
FRD217LFT Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Galvanized steel, Recessed ceiling mount, 2-lamp, Lamps installed, pre-wired through feed, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD217LFT
UPC
662276445987
Product Length/Depth
27 in
Product Height
3.75 in
Product Width
10.81 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Special features
Lamps installed, pre-wired through feed
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD217LFT
Rugged marine-grade construction is designed with galvanized steel housing and an acrylic lens, delivering superior corrosion resistance and long service life in salt-air environments, reducing maintenance costs for shipboard lighting. The 17W dual-lamp configuration delivers energy-efficient illumination, cutting operating costs while maintaining bright, uniform light across crew spaces and cargo areas. Recessed ceiling mounting plus lamps installed and pre-wired through-feed streamlines installation and retrofit projects, minimizing field wiring time and labor for both new builds and refurbishments. The luminaire supports a broad 120-277 VAC input and 50/60 Hz frequency, enabling a single stock solution for international fleets and simplifying procurement. Compliance with NEC/CEC standards and Ordinary/Non-Hazardous Locations ratings provides regulatory assurance for interior marine applications, improving safety and audit readiness. Overall, the FRD217LFT offers dependable performance in confined spaces with a compact, 2-ft lamp footprint that fits standard FRD applications.
Get a Quick Quote for a Eaton FRD217LFT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD217LFT?
Enquire Now
FAQs
FRD217LFT is designed for recessed ceiling mounting with a 27 in length footprint and 3.75 in height. It features 2 lamps, a pre-wired through-feed design, and a 10.81 in width, enabling straightforward retrofits into standard FRD openings and shipboard interiors.
This fixture uses two 17W lamps (total ~34W when lit) with a 120-277 Vac input and 50/60 Hz frequency. The T8 lamp type and 2 ft lamp length are designed for efficient illumination while preserving battery and generator life on vessels.
Yes. FRD217LFT carries NEC/CEC standards compliance and is rated for Ordinary/Non-Hazardous Locations, making it appropriate for crew spaces, cabins, and other interior shipboard environments.
The fixture measures 27 in in length, 10.81 in in width, and 3.75 in in height, with an approximate weight of 14 lb, aiding exact cutouts and support structure planning for marine installations.
Lamps are installed and pre-wired through feed for easier replacement, and the galvanized steel housing plus acrylic lens are designed for durability in marine settings, reducing maintenance frequency and downtime during servicing.
