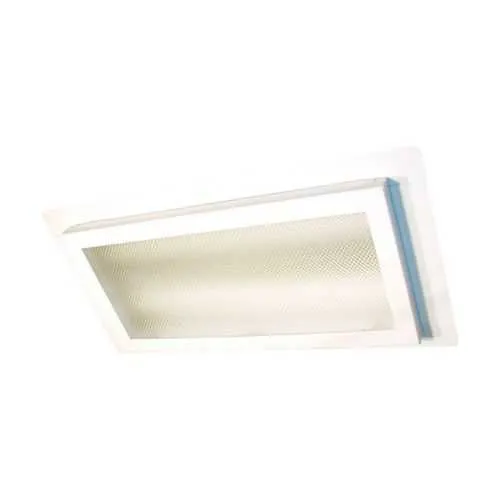

Eaton FRD217TL Lighting Fixture - 2-lamp, 17W, NEC/CEC
Part Number: FRD217TL
Quick Summary
Eaton FRD217TL lighting fixture delivers reliable two-lamp illumination for marine interior applications. In spaces where ceiling access is tight and corrosion risk is high, installation and long-term maintenance can challenge even experienced teams. This luminaire is designed for 50/60 Hz operation and NEC/CEC compliance, with an ordinary/non-hazardous location classification that aligns with common shipboard and offshore facilities. The recessed ceiling mount, galvanized steel housing, and acrylic lens minimize corrosion exposure while keeping a slim profile. With 120-277 Vac compatibility and 2-ft lamp length at 17W per lamp, it combines energy efficiency with robust performance. Businesses benefit from easier procurement, standardized fittings, and reduced downtime across fleets or facilities.
Product Information
Extended Description
FRD217TL Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Galvanized steel, Recessed ceiling mount, 2-lamp, Terminal block, lamps installed, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD217TL
UPC
662276634442
Product Length/Depth
27 in
Product Height
3.75 in
Product Width
10.81 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Special features
Terminal block, lamps installed
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD217TL
Two-lamp configuration at 17W per lamp delivers bright, reliable output without excessive energy draw. This translates to lower utility costs and cooler running temperatures in enclosed marine interiors. It’s ideal for shipboard corridors, cabins, and engine rooms where consistent illumination is essential for safety and efficiency.Wide electrical tolerance simplifies integration with existing power systems. The 120-277 Vac, 50/60 Hz rating reduces stocking variety and supports faster deployment across vessels and offshore facilities, enabling procurement teams to standardize luminaires and cut order complexities.Recessed ceiling mounting conserves headroom and minimizes snag hazards in tight spaces. The galvanized steel housing provides corrosion resistance against salt spray and humidity, while a compact form factor streamlines retrofits and new construction alike.Acrylic lens offers clear visibility with resistance to impact and yellowing in harsh environments. This combination supports long service life under vibration and rough handling typical of industrial marine settings, reducing maintenance frequency and downtime.Terminal block with lamps installed facilitates straightforward wiring and quick lamp replacement. Onboard technicians can perform routine checks rapidly, lowering time-to-light and improving uptime in remote or offshore locations.Compliance with NEC/CEC and Ordinary/Non-Hazardous Locations minimizes regulatory concerns during inspections and procurement. The 2-ft lamp length and T8 configuration align with common retrofit projects, helping you standardize parts across sites and fleets.
Get a Quick Quote for a Eaton FRD217TL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD217TL?
Enquire Now
FAQs
The FRD217TL is designed for recessed ceiling installation. It uses a terminal block for wiring and ships with the lamps installed, enabling quicker on-site setup. When wiring, follow the manufacturer’s installation instructions to ensure proper clearance, sealing against moisture, and secure mounting to maintain vibration resistance in marine environments.
FRD217TL operates on 120–277 Vac at 50/60 Hz, with a 17W per lamp rating. It is a 2-lamp, 2-ft T8 luminaire, and its acrylic lens and galvanized housing are chosen for reliability in challenging conditions. This broad voltage range simplifies integration with existing power systems on vessels and facilities.
Yes. FRD217TL is certified for Ordinary/Non-Hazardous Locations and meets NEC/CEC standards. This makes it appropriate for standard marine interior spaces such as cabins, passageways, and service areas where safety and regulatory compliance are required without specialized hazardous-location ratings.
The galvanized steel housing and acrylic lens are chosen for corrosion resistance and durable visibility in salt air and humidity. The recessed mount minimizes protrusions in tight spaces, reducing risk of impact, while the terminal block design streamlines wiring and lamp replacement, cutting downtime during routine maintenance.
Official resources include the FRD217TL specification sheet, Crouse-Hinds FRD catalog page, and installation instructions. You can download the Eaton FRD217TL spec sheet, FRD Marine Interior catalog page, and instruction sheets for comprehensive installation and performance details.
