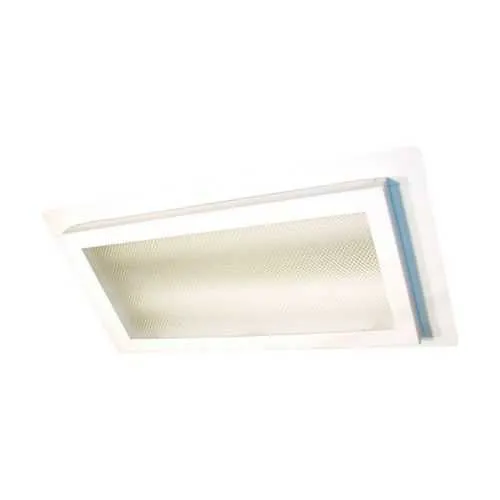

Eaton FRD240 Marine Interior Fluorescent Luminaire - NEC/CEC
Part Number: FRD240
Quick Summary
The Eaton FRD240 Marine Interior Fluorescent Luminaire delivers reliable 4 ft lighting for onboard interiors. Engineers often wrestle with corrosion resistance, cramped install spaces, and difficult-to-access maintenance aboard vessels. It meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, supporting regulatory compliance in shipboard electrical installations. Designed for recessed ceiling mounting with a galvanized steel housing and an acrylic lens, this luminaire supports easy installation and long service life. With 34W at 120 VAC and 60 Hz, it helps reduce energy consumption and maintenance costs in marine interiors. Its modular design also accommodates field upgrades and compatible control options. This combination helps procurement teams standardize stock and simplify maintenance programs.
Product Information
Extended Description
FRD240 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 60 Hz, 4 ft, Acrylic lens, T12ES, Galvanized steel, Recessed ceiling mount, 2-lamp, 120 Vac, 34W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD240
UPC
662276397101
Product Length/Depth
50.63 in
Product Height
3.75 in
Product Width
10.81 in
Product Weight
27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T12ES
Number of lamps
2-lamp
Wattage
34W
Voltage rating
120 Vac
Frequency rating
60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Eaton Crouse-Hinds FRD240 3D drawing
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD240
The FRD240 delivers a robust 4 ft, two-lamp profile (34W) with 120 VAC operation at 60 Hz, optimizing light levels across long corridors and cabin areas while minimizing energy use. Business Impact: steady illumination reduces maintenance cycles and improves crew productivity in demanding marine environments. Application: ideal for engine rooms, mess halls, and crew quarters where reliable, uniform light is critical. The recessed ceiling mount pairs with a galvanized steel housing and acrylic lens to resist corrosion, endure vibration, and simplify cleaning—lowering lifecycle costs and downtime in shipboard applications. The rugged construction supports ongoing serviceability and straightforward ballast or lamp upgrades as regulatory or efficiency standards evolve. Compatibility and installation benefits include standard mounting patterns and clearances, with access to installation sheets and 3D CAD resources for precise fitment, speeding commissioning on tight schedules. Addressing objections about modernization, FRD240 offers a proven balance of legacy T12ES compatibility and durable materials, ensuring a dependable upgrade path for aging marine lighting fleets. Industry context shows that long-life luminaires like FRD240 reduce inventory variety while maintaining compliance with NEC/CEC and Ordinary/Non-Hazardous classifications, delivering predictable maintenance budgets and improved asset management.
Get a Quick Quote for a Eaton FRD240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD240?
Enquire Now
FAQs
FRD240 is designed for recessed ceiling mounting with a 50.63 inch length and 3.75 inch height. Plan for compatible ballast and wiring to support 120 VAC at 60 Hz for two lamps. Refer to installation sheets for mounting hole patterns, clearances, and the acrylic lens access points to ensure a clean, vibration-resilient fit on marine ceilings.
FRD240 operates at 120 VAC, 60 Hz and consumes 34W across two lamps (2-lamp configuration). It uses a T12ES lamp type and provides a 4 ft light length with a 50.63 in housing. The acrylic lens and galvanized steel housing support reliable performance in demanding environments, with predictable lumen maintenance and straightforward serviceability.
Yes. FRD240 is rated for Ordinary/Non-Hazardous Locations and carries NEC/CEC standards compliance, making it appropriate for shipboard interiors where regulatory alignment and safety are priorities. This helps simplify approvals for crew areas, corridors, and non-hazardous cargo spaces without requiring exotic protection measures.
FRD240 is aligned with NEC/CEC standards and is classified for Ordinary/Non-Hazardous locations. This certification streamlines regulatory acceptance for marine electrical installations, reduces the risk of non-compliance penalties, and supports consistent procurement across fleets seeking standard, code-compliant interior lighting solutions.
With a galvanized steel housing and acrylic lens, FRD240 offers corrosion resistance and durable construction, contributing to longer service intervals and lower maintenance cost. The 4 ft, 2-lamp configuration provides ample lighting with a relatively low wattage, enabling energy savings. Availability of installation documentation and upgrade paths helps maintain a predictable lifecycle and favorable total cost of ownership for marine fleets.
