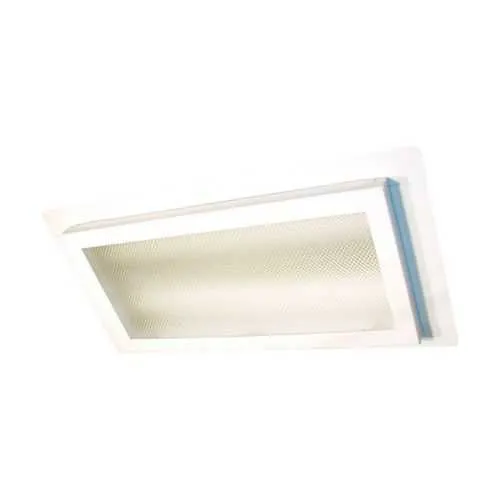

Eaton FRD317EMT2 Marine Interior Lighting - NEC/CEC
Part Number: FRD317EMT2
Quick Summary
Eaton FRD317EMT2 marine interior recessed lighting provides reliable emergency illumination for shipboard interiors. This 2 ft, 3-lamp T8 fixture combines compact form with robust performance to support critical visibility during outages. Maintenance teams often struggle with retrofit compatibility and space constraints in confined vessels; FRD317EMT2 addresses these by fitting recessed ceilings with a galvanized steel housing and acrylic lens. It is designed for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, supporting 50/60 Hz operation across 120–277V and 277V max. The integration of an emergency battery back-up ballast reduces downtime and enhances safety, while the test switch simplifies verification. Secondary benefits include modular ballast compatibility and streamlined procurement for marine electrical upgrades.
Product Information
Extended Description
FRD317EMT2 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Galvanized steel, Recessed ceiling mount, 3-lamp, Emergency battery back-up ballast, one lamp, 277V max., test switch, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD317EMT2
UPC
662276497030
Product Length/Depth
27 in
Product Height
4.63 in
Product Width
10.81 in
Product Weight
12.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
3-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD317EMT2
Feature: 2 ft, T8 fluorescent fixture with a 3-lamp arrangement and acrylic lens in a galvanized steel housing. Business Impact: Delivers efficient lighting with a compact form factor, reducing energy use and maintenance intervals on crowded vessels. Application: Ideal for crew cabins, corridors, and service areas where recessed ceiling luminaries are preferred in ships and offshore platforms. Paragraph 2: Feature: Recessed ceiling mounting for a clean, low-profile installation. Business Impact: Improves safety clearances and vessel aesthetics while minimizing protrusions in tight spaces. Application: Suitable for retrofit projects in existing marine interiors and new vessel builds requiring discreet lighting. Paragraph 3: Feature: Emergency battery back-up ballast with a built-in test switch. Business Impact: Maintains illumination during mains outages, supporting safe egress and compliance with life-safety requirements, reducing downtime during power loss. Application: Critical zones such as engine rooms, galleys, and escape routes onboard. Paragraph 4: Feature: Wide input voltage range 120–277 Vac and support for 50/60 Hz. Business Impact: Simplifies procurement across mixed electrical systems aboard vessels and reduces spares inventory. Application: Retrofit and new-build projects on ships with varying power architectures. Paragraph 5: Feature: Galvanized steel housing and acrylic lens combination. Business Impact: Delivers corrosion resistance, impact durability, and glare control for occupant comfort and longer fixture life. Application: Harsh humid interior spaces like crew quarters and maintenance areas. Paragraph 6: Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Locations rating. Business Impact: Enhances regulatory alignment, minimizes risk of non-compliance penalties, and streamlines procurement for marine buyers. Application: Marine interiors where compliant emergency lighting is essential.
Get a Quick Quote for a Eaton FRD317EMT2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD317EMT2?
Enquire Now
FAQs
FRD317EMT2 supports a wide input range of 120–277 Vac and operates at 50/60 Hz, aligning with common marine power architectures. Its recessed ceiling design fits standard shipboard cavities, and its NEC/CEC compliance streamlines regulatory validation for ordinary locations. This makes it suitable for retrofit projects and new builds where simplified integration and dependable emergency lighting are priorities.
Key specs include a 2 ft length, 10-inch wide footprint, 4.63 inch height, 12.5 lb weight, 3-lamp configuration with a 17W total wattage, T8 light type, acrylic lens, and galvanized steel housing. It features emergency battery back-up ballast and a test switch, with 120–277 Vac input and 50/60 Hz compatibility, designed for ordinary locations on vessels.
No. FRD317EMT2 is rated for Ordinary/Non-Hazardous Locations and is intended for safe, non-hazardous shipboard interiors. For hazardous locations, you would need a fixture specifically certified for those environments. Always verify area classification and applicable marine codes before deployment.
The emergency ballast ensures illumination during mains outages, reducing downtime and improving occupant safety in critical zones such as engine spaces and escape routes. The built-in test switch simplifies regular verification during maintenance windows, helping ensure continued compliance with life-safety requirements and faster fault detection.
The fixture combines energy-efficient 17W operation with a reliable emergency ballast, which reduces energy consumption and repair costs over time. Its recessed, corrosion-resistant housing lowers maintenance frequency in humid interiors, while NEC/CEC compliance minimizes regulatory risk. Overall, fleets benefit from safer egress, longer service life, and streamlined procurement for marine lighting upgrades.
