Eaton FRD317LFTRV-1 Marine Interior Light - NEC/CEC
Part Number: FRD317LFTRV-1
Quick Summary

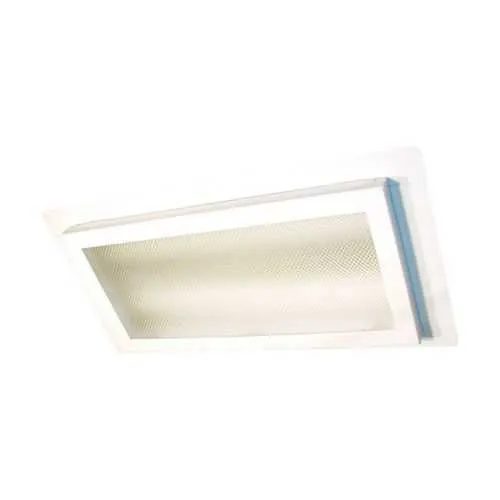

Eaton FRD317LFTRV-1 is a marine interior fluorescent luminaire designed for recessed ceiling installations. Engineers often face retrofit timing challenges, wiring complexity, and strict NEC/CEC compliance when outfitting vessels. This unit meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, providing dependable illumination in tight marine spaces. Its pre-wired through feed, lamps installed configuration, and 2 ft lamp length streamline installation while reducing downtime. Built with galvanized steel housing and an acrylic lens, it withstands the rigors of harsh marine environments, delivering consistent performance across 50/60 Hz systems and 120–277 VAC supply paths. For engineers seeking reliable, code-compliant marine interior lighting, FRD317LFTRV-1 offers strong business value.
Product Information
Extended Description
FRD317LFTRV-1 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Galvanized steel, Recessed ceil mt, 3-lamp, Lamps installed, pre-wired through feed, red filter tube sep ballast (1 lamp), 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD317LFTRV-1
UPC
662276445994
Product Length/Depth
27 in
Product Height
4.63 in
Product Width
10.81 in
Product Weight
20.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
3-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Special features
Lamps installed, pre-wired through feed, red filter tube with separate ballast (one lamp)
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD317LFTRV-1
Feature: 2 ft T8 lighting with three lamps, pre-wired through feed. Benefit: Reduces field wiring time and labor costs while ensuring reliable, uniform illumination across the work area. Application: Marine interior spaces where tight ceilings and frequent vibration demand durable, easy-to-install luminaires. Feature: Galvanized steel housing with acrylic lens. Benefit: Superior durability in harsh marine environments and improved impact resistance, lowering replacement frequency. Application: Engine rooms, passenger compartments, and cargo holds requiring robust construction. Feature: Recessed ceiling mounting and 120–277 VAC, 50/60 Hz operation. Benefit: Flexible electrical sourcing and simplified retrofits across vessels with varying power systems. Application: Refit projects on ships, barges, and offshore platforms needing compliant interior lighting. Feature: 3-lamp configuration with 17 W per lamp. Benefit: Balanced light output with energy efficiency and lower total power consumption. Application: General illumination for medium- to large-area marine interiors. Feature: Red filter tube with separate ballast per lamp (one lamp). Benefit: Enhanced maintenance access and fault isolation, reducing downtime during ballast servicing. Application: Redundancy planning in critical navigation or crew areas.
Get a Quick Quote for a Eaton FRD317LFTRV-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD317LFTRV-1?
Enquire Now
FAQs
FRD317LFTRV-1 is a recessed ceiling luminaire with a 2 ft lamp length and pre-wired through feed. It uses a galvanized steel housing and acrylic lens, designed for easy installation in marine interiors. Ensure the mounting location provides appropriate clearance for the 4.63 in height, and verify the space is within Ordinary/Non-Hazardous Locations per NEC/CEC guidance.
The luminaire operates at 120–277 VAC and 50/60 Hz, with three lamps at 17 W each. Total nominal wattage is approximately 51 W. It is compatible with common vessel power systems and supports flexible wiring configurations due to its through-feed design, reducing field wiring complexity.
Yes, FRD317LFTRV-1 is designed for marine interior use. It complies with NEC/CEC standards and is intended for Ordinary/Non-Hazardous Locations. This combination provides appropriate regulatory alignment for vessel interiors while delivering reliable performance in demanding conditions.
A 3-lamp setup provides balanced illumination with redundancy; if one lamp fails, serviceability remains straightforward, minimizing downtime. The through-feed pre-wired design and readily accessible ballast/components reduce installation and maintenance time, lowering lifecycle costs and improving on-time vessel commissioning.
The recessed ceiling mounting, 2 ft lamp length, and 120–277 VAC compatibility support flexible retrofits across diverse vessel electrical systems. Galvanized steel housing and acrylic lens offer rugged durability, while NEC/CEC compliance ensures alignment with regulatory requirements for non-hazardous marine locations, making it a dependable retrofit choice.
