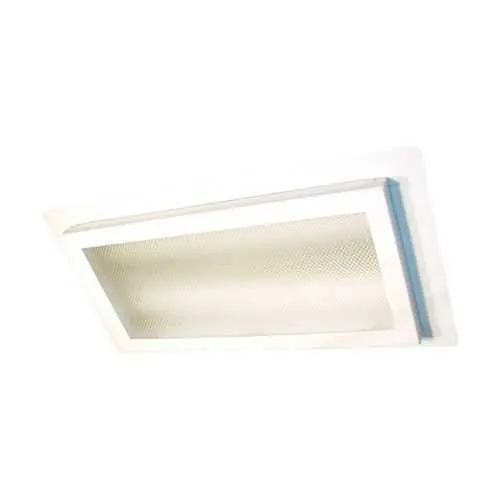

Eaton FRD332RV-1 FRD Marine Interior Light - NEC/CEC
Part Number: FRD332RV-1
Quick Summary
The Eaton FRD332RV-1 FRD Marine Interior Light is a recessed fluorescent luminaire designed for demanding marine interiors. In shipboard environments, engineers contend with corrosion, cramped spaces, and downtime during routine maintenance. It meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with a galvanized steel body and acrylic lens that resist corrosion in moist environments. Designed for 50/60 Hz operation and a wide 120–277 Vac range, it offers reliable performance across global fleets. For project teams and procurement managers, this fixture combines rugged durability with installation ease, delivering predictable life-cycle costs and compliance while supporting flexible ballast configurations and standard marine power architectures.
Product Information
Extended Description
FRD332RV-1 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior, 50/60 Hz, 4 ft, Acrylic lens, T8, Galvanized steel, Recessed ceiling mount, 3-lamp, Red filter tube with separate ballast (one lamp), 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRD marine interior
Catalog Number
FRD332RV-1
UPC
662276397217
Product Length/Depth
50.97 in
Product Height
4.63 in
Product Width
10.81 in
Product Weight
23.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T8
Number of lamps
3-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Galvanized steel
Lens material
Acrylic
Special features
Red filter tube with separate ballast (one lamp)
Crouse-Hinds series FRD Marine Interior Continuous Plank Recessed Lights catalog page
IF LBL1342 - FRD Fluorescent Luminaires
Eaton Specification Sheet - FRD332RV-1
Feature: Recessed ceiling mounting in a 4 ft, 3-lamp configuration enables a clean installation footprint and helps protect lamps from incidental impact. Business Impact: Reduces maintenance downtime and extends service life in tight crew quarters and passageways. Application: Ideal for cabin interiors, corridors, and galleys on vessels seeking cohesive aesthetics with reliable illumination. Feature: Universal voltage from 120 to 277 Vac and operation across 50/60 Hz. Business Impact: Simplifies electrical design and spare-part inventories, lowering installation complexity and logistics costs. Application: Suitable for multi-region fleets where power systems vary. Feature: Galvanized steel housing with an acrylic lens. Business Impact: Delivers corrosion resistance in humid marine environments, reducing enclosure degradation and replacement cycles. Application: Engine rooms, exposed cargo holds, and crew spaces subject to moisture exposure. Feature: Red filter tube with separate ballast for one lamp. Business Impact: Supports targeted lighting effects and flexible ballast configurations for selective operation or signaling. Application: Control rooms, signaling zones, and areas needing adjustable illumination. Feature: Recessed ceiling mounting and compatibility with common marine electrical standards. Business Impact: Speeds installation, minimizes interference with navigation and safety systems, and aligns with standard fabrication practices. Application: New-builds or retrofits where streamlined integration is desired. Overall, FRD332RV-1 delivers durable, compliant lighting tailored for marine interiors, with measurable gains in uptime, energy management, and lifecycle cost containment. Industry-specific context includes its compatibility with NEC/CEC requirements and ordinary/non-hazardous location ratings, making it a robust choice for freight and cruise vessel projects while supporting maintenance-friendly ballast configurations and broad voltage flexibility.
Get a Quick Quote for a Eaton FRD332RV-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRD332RV-1?
Enquire Now
FAQs
FRD332RV-1 supports a universal voltage range of 120–277 Vac and operates at 50/60 Hz, enabling compatibility with diverse naval and commercial power systems. This reduces the need for multiple part numbers and simplifies integration with existing vessel electrical architectures, lowering installation time and risk during retrofits or new builds.
Yes. The fixture is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it appropriate for general interior spaces such as cabins and corridors where harsh explosive atmospheres are not present. This supports safe, code-compliant illumination across typical shipboard environments.
The recessed ceiling mounting design streamlines installation by integrating into standard ceiling coffers, reducing protrusions and interference with ductwork or navigation equipment. This yields faster commissioning, easier future maintenance, and a neater interior finish, which is particularly valuable in retrofit projects or limited-access engine rooms.
FRD332RV-1 features a 4 ft, 3-lamp configuration with T8 lamps and an acrylic lens housed in galvanized steel for superior corrosion resistance. The red filter tube with separate ballast per lamp adds flexible lighting control, while a broad voltage range and NEC/CEC compliance address multiple regulatory and design requirements common in diverse maritime applications.
Maintenance benefits stem from the galvanized steel housing and acrylic lens, which resist corrosion in humid maritime conditions. The 3-lamp setup allows partial lamp replacement without total luminaire downtime, and the separate ballast per lamp simplifies ballast maintenance. Official installation instructions and datasheets provide guidance to ensure seals and mounting retain integrity over time.
