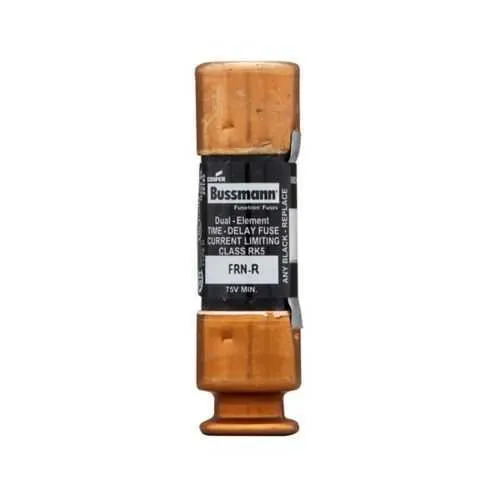

Eaton FRN-R-17-1/2ID Fuse - Class RK5, 200 kAIC
Part Number: FRN-R-17-1/2ID
Quick Summary
Eaton FRN-R-17-1/2ID fuse delivers reliable time-delay protection for industrial control panels and motor circuits. This design addresses nuisance trips during startup by using a dual-element, time-delay profile that preserves short-circuit protection. The device belongs to the Class RK5 family and is CE marked for compliance with European electrical standards, delivering predictable performance across typical plant environments. By combining robust interrupt capability with straightforward installation in standard fuse blocks, this fuse offers a balance of protection and uptime. Ready compatibility with Eaton Bussmann components supports streamlined procurement, stocking, and maintenance in a busy electrical room. For engineers seeking dependable, scalable protection, FRN-R-17-1/2ID helps minimize downtime and maximize panel reliability.
Product Information
Extended Description
FRN-R-17-1/2ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 17.5 A, indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-17-1/2ID
UPC
051712204385
Product Length/Depth
3 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.8 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
17.5 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Fuse indicator
Non-indicating With Indicator
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
Feature → Business Impact → Application: Time-delay dual-element design provides improved reliability in the face of startup inrush and short-duration overloads, reducing nuisance trips and associated downtime in motor circuits. This translates to higher machine availability and lower maintenance overhead in manufacturing lines and process equipment. Feature → Business Impact → Application: 17.5 A amperage rating backed by a high interrupt rating (200 kAIC at 250 Vac, 20 kAIC at 125 Vdc) delivers robust fault protection for power distribution panels without compromising normal operation; ideal for medium-sized branch circuits. Feature → Business Impact → Application: Class RK5 construction and CE marking ensure standardization across control panels and industrial installations, supporting compliant, repeatable protection schemes in plant-wide modernization projects. Feature → Business Impact → Application: Time-delay, dual-element protection reduces wear on contact points by handling inrush currents gracefully, extending fuse life and reducing total cost of ownership in motor starters and conveyors. Feature → Business Impact → Application: Compact 3 in length and 0.81 in width/height with standard packaging makes retrofit and field changes straightforward, accelerating project timelines and minimizing downtime during upgrades. Feature → Business Impact → Application: Non-indicating with indicator option enables straightforward fault diagnosis and quicker maintenance decisions, improving mean time to repair (MTTR) in control cabinets while preserving protection integrity.
Get a Quick Quote for a Eaton FRN-R-17-1/2ID
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRN-R-17-1/2ID?
Enquire Now
FAQs
To install the FRN-R-17-1/2ID, locate a compatible RK5 fuse holder in the control panel, align the fuse with the bus bars, and press firmly until seated. Verify the amperage rating (17.5 A) matches the circuit requirements, and ensure voltage rating compatibility (250 Vac / 125 Vdc). Consider using the standard 3 in length and 0.81 in width to fit the designated slot and maintain proper clearance for safe operation.
Its time-delay, dual-element design minimizes nuisance trips during motor startup while providing reliable short-circuit interruption. The 17.5 A rating suits mid-sized control circuits, and the high interrupt rating (200 kAIC at 250 Vac) ensures robust protection under fault conditions. This combination reduces downtime and extends panel life in motor-driven processes.
Yes. The FRN-R-17-1/2ID fuse is part of Eaton’s RK5 family and is CE marked, ensuring compliance with European standards. Its classifier and construction align with RK5 fuse requirements, enabling consistent performance across many industrial applications while simplifying procurement and documentation for regulatory reviews.
This fuse is CE marked, indicating conformity with applicable European directives for electrical protection devices. It belongs to the Class RK5 family, which defines the fuse’s form factor and performance characteristics. While not every region may require RK5, CE marking provides a recognized compliance baseline for many international projects.
The dual-element, time-delay design reduces nuisance trips during startup, lowering unplanned downtime and maintenance costs. The fuse’s high interrupt rating improves fault protection, potentially reducing panel damage and replacement costs. Combined with easy installation and long service life, this can translate into lower total cost of ownership in manufacturing environments.
