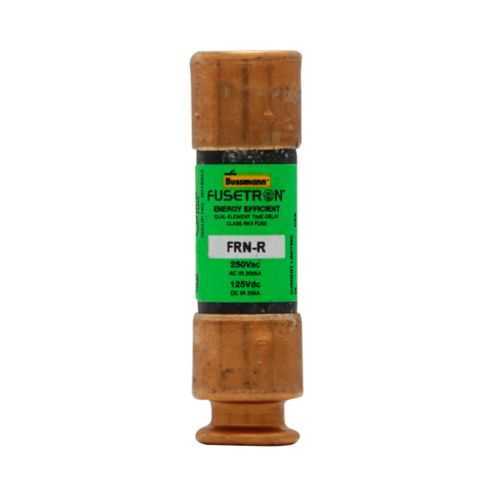

Eaton FRN-R-20 Fuse - RK5 Class, 20 A, CE Marked
Part Number: FRN-R-20
Quick Summary
Eaton FRN-R-20 fuse provides time-delay protection for motors and feeders in industrial control panels. Engineers often contend with nuisance trips and short-cycling that disrupt production and complicate maintenance. This FRN-R-20 is designed to meet CE safety requirements, supports RoHS compliance, and uses RK5 construction for reliable time-delay protection. With a 20 A rating at 250 Vac and rugged ferrule-end connections, it integrates smoothly into standard panels, delivering uptime and protection. By combining dual-element design with a high interrupt rating, the FRN-R-20 provides dependable coordination with upstream breakers. Manufacturers benefit from reduced spare parts costs and simpler maintenance planning when using standardized RK5 fuse family.
Product Information
Extended Description
FRN-R-20 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 20 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-20
UPC
051712101752
Product Length/Depth
1.56 in
Product Height
1.56 in
Product Width
1.56 in
Product Weight
0.9 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
20 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
Feature: Time-delay, dual-element design. Benefit: Allows temporary inrush currents without nuisance trips, increasing equipment uptime and reducing unplanned downtime in motor circuits. Application: Ideal for motor starters and feeders in HVAC, pumps, and conveyors where load surges occur. Feature: 20 A current rating at 250 Vac. Benefit: Clear, predictable protection for standard industrial loads, enabling consistent protection while avoiding nuisance outages. Application: Panelboards and disconnects in process lines where steady performance is required. Feature: High interrupt rating (200 kAIC at 250 Vac, 20 kAIC at 125 Vdc). Benefit: Superior fault withstand capability, safeguarding downstream equipment and wiring in catastrophic fault conditions. Application: Heavy-duty control panels and motor drives with demanding short-circuit scenarios. Feature: Class RK5, ferrule end connections, non-indicating. Benefit: Simplified wiring, reliable solder-free connections, and straightforward replacement during maintenance. Application: Retrofit projects and new builds using Bussmann RK5 family across industrial automation lines. Feature: Standard packaging and compact form factor (1.56 in length/width/height). Benefit: Easy enclosure fit and faster installation in crowded control cabinets. Application: Enclosed panels, compact distribution boards, and OEM equipment. Feature: Compliance and safety alignment (CE marked, RoHS support). Benefit: Streamlined regulatory readiness and sustainability alignment for European deployments. Application: Certified equipment for global installations where compliance documentation matters. Industry context: The FRN-R fuse family is widely adopted in automation and electrical protection schemes, supporting lifecycle cost reduction and predictable protection curves across installations.
