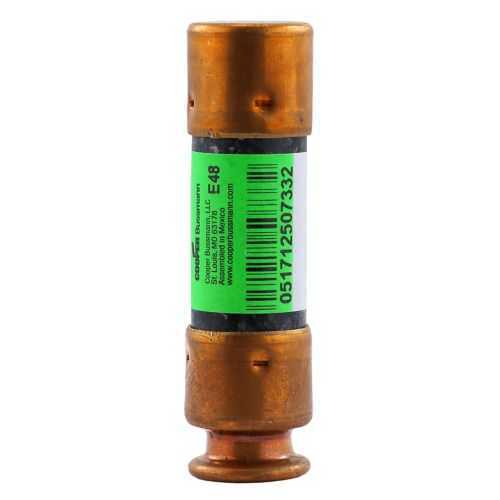

Eaton FRN-R-25 fuse – Class RK5, 200 kAIC @250V
Part Number: FRN-R-25
Quick Summary
FRN-R-25 fuse is a time-delay, dual-element protection device designed for industrial control circuits. Engineers often wrestle with nuisance trips and mismatched interrupt ratings when protecting motors, drives, and control panels in harsh environments. Part of the Eaton Bussmann RK5 family, it carries CE marking and a rugged interrupt rating of 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc, with a 25 A current rating. The combination of a compact 2 in length, ferrule-end terminals, and a non-indicating design supports straightforward installation and robust field service. This setup helps reduce downtime, improves uptime availability, and simplifies spare-part logistics for panel builders and machine OEMs.
Product Information
Extended Description
FRN-R-25 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 25 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-25
UPC
051712507332
Product Length/Depth
2 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.05 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
25 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
Feature → Time-delay, dual-element design enables current-limiting protection that tolerates temporary inrush while shielding circuits from sustained faults, reducing nuisance trips and safeguarding motor control. Business impact: fewer unplanned outages and smoother startup sequences in drives and panels; Application: installation in industrial control panels and motor circuits for reliable protection. Feature → Class RK5, current-limiting 25 A with high interrupt ratings, and CE compliance provide robust coordination with upstream devices. Business impact: improved selective coordination and regulatory conformity; Application: machine safety enclosures and power distribution blocks where certifiable protection is required. Feature → Ferrule-end x ferrule-end connections, 2 in length, and non-indicating operation simplify installation and maintenance. Business impact: faster replacements, standardized parts, and reduced assembly time; Application: panel assemblies in compact enclosures. Feature → 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc delivers strong fault protection. Business impact: enhanced safety margins and reduced downstream damage; Application: high-energy circuits in industrial equipment. Feature → 25 A rating with RK5 family compatibility ensures consistent performance across Bussmann RK5 fuses. Business impact: streamlined spare parts and predictable protection schemes; Application: modular protection schemes in control cabinets and process lines.
