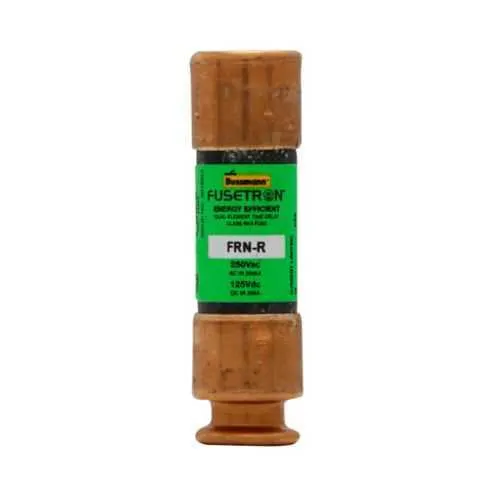

Eaton FRN-R-5 Fuse - RK5 Class, 250 Vac, CE Marked
Part Number: FRN-R-5
Quick Summary
Introducing the Eaton FRN-R fuse, a time-delay RK5 dual-element device that protects motor circuits and control panels. Inrush surges and startup transients often cause nuisance trips, risking unplanned downtime. CE marked and Class RK5 compliant, FRN-R delivers up to 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc. Designed for low-voltage branch circuits and motor protection, it helps reduce downtime and extend equipment life. With standard ferrule-end connections and detailed technical data, procurement and installation are straightforward. This alignment with IEC/UL guidelines supports RoHS compliance, while offering a balanced protection strategy for today’s automated systems. For engineers evaluating protection schemes, its 5 A rating and high interrupt ratings provide a robust, easy-to-specify solution.
Product Information
Extended Description
FRN-R-5 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 5 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-5
UPC
051712507226
Product Length/Depth
3 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
5 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
Feature: Time-delay operation with dual-element construction. Business Impact: Tolerates inrush and short overloads without nuisance tripping, maintaining production line continuity and reducing downtime. Application: Motor starters, conveyors, and power feeds where startup surges are common. The result is improved equipment uptime and lower maintenance overhead. Feature: High interrupt ratings (200 kAIC at 250 Vac, 20 kAIC at 125 Vdc). Business Impact: Enhanced protection against catastrophic faults, enabling safer shutdowns and reduced risk of cascading failures. Application: Industrial control panels and branch circuits in harsh environments where fault duty is variable. Feature: 5 A amperage rating with RK5 Class. Business Impact: Precise protection for modest-load circuits while preserving service continuity in mixed-load panels. Application: Control circuits, signaling, and instrumentation ports that require reliable discrimination. Feature: Ferrule-end to ferrule-end connection with non-indicating indication. Business Impact: Simplifies replacement and inventory management, lowering maintenance time and error rates. Application: Standard field assemblies using Bussmann ferrule terminals. Feature: CE marking and RoHS compliance. Business Impact: Meets regulatory requirements and supports global supply chains, reducing compliance risk. Application: Global installations where regulatory conformity is mandated. Industry context: The FRN-R fuse is part of Eaton Bussmann’s RK5 family, well-regarded in electrical protection for its predictable response and data-sheet-backed performance. This makes it a trusted choice for engineers seeking a single, documented component across multiple machines and lines, from assembly cells to packaging lines.
