Eaton FRN-R-5-6/10 Fuse - RK5 Time-delay, 200 kAIC
Part Number: FRN-R-5-6/10
Quick Summary
FRN-R-5-6/10 fuse is a time-delay, dual-element protector that delivers precise overcurrent protection for industrial control panels and power distribution systems. Engineers often wrestle with nuisance trips or selecting an interrupt rating that matches mixed loads and motor starts. It carries CE marking, is part of Eaton’s RK5 family, and RoHS compliance can be verified via Eaton’s RoHS search tool. For panel builders and procurement teams, this translates to reduced downtime and clearer lifecycle cost planning. By aligning with Bussmann series standards, this device supports consistent protection across automation architectures while remaining straightforward to install and maintain.
Product Information
Extended Description

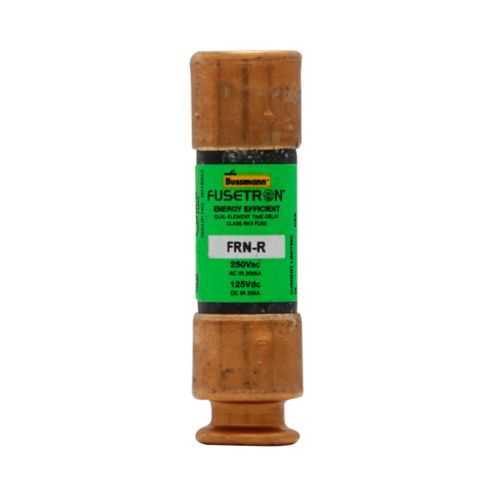

FRN-R-5-6/10 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 5.60 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-5-6/10
UPC
051712507233
EAN
5027590426312
Product Length/Depth
0.56 in
Product Height
2 in
Product Width
0.56 in
Product Weight
0.5 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
5.60A
Interrupt rating
200 kAIC at 250 Vac 20 kAIC at 125 Vdc
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
Time-delay, dual-element design provides selective protection by allowing brief inrush while interrupting sustained faults. Business impact: reduces nuisance trips during motor start and peak loads, improving line uptime. Application: control panels, conveyors, and machine power rails. The 5.60 A amperage rating and 250 Vac / 125 Vdc voltage rating ensure proper coordination with low-to-medium current circuits, preventing overcurrent without oversizing fuses. This supports energy efficiency and safer enclosure design. The fuse offers a high interrupt rating of 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc, enabling reliable fault current handling in high-energy environments and reducing arc-flash risk in equipment. It is suitable for industrial machines, presses, and automation cabinets. The Class RK5 construction with ferrule-end connections provides robust, plug-and-play installation in standard RK5 fuse holders, streamlining maintenance and replacements. Non-indicating operation minimizes mounting distractions, while compatibility with Bussmann series accessories enables scalable protection across equipment fleets. Overall, these features translate to lower maintenance costs, easier spec compliance, and improved equipment uptime for plant-wide protection programs.
