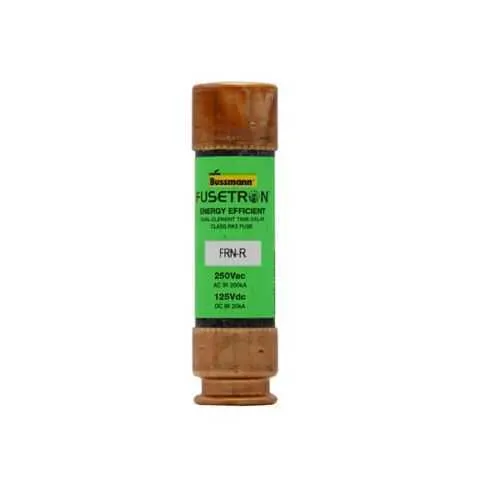

Eaton FRN-R-60 fuse - Class RK5 time-delay, dual-element
Part Number: FRN-R-60
Quick Summary
FRN-R-60 is an Eaton Bussmann Class RK5 fuse delivering time-delay protection for 60 A branch circuits. Engineers frequently face nuisance trips from brief inrush and startup surges when energizing motors or drives, reducing productivity. It carries CE marking and belongs to the RK5 class family, with RoHS guidance available through Eaton's RoHS search tool to support regulatory planning. Its compact 3 in length, ferrule-end construction, and a high interrupt rating support reliable protection in modern control panels while simplifying stocking and installation.
Product Information
Extended Description
FRN-R-60 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 60 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-60
UPC
051712101813
Product Length/Depth
3 in
Product Height
0.8 in
Product Width
0.8 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
60 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
10 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
FRN-R-60 employs a time-delay, dual-element design that tolerates short startup surges and momentary overloads, reducing nuisance tripping and improving equipment uptime in motor drives, solenoid circuits, and power supplies. In practice, this means fewer production interruptions and more predictable control system performance in factory automation panels. The fuse’s 60 A rating with a 3 in length and 0.8 in footprint enables easy integration into standard RK5 holders and compact enclosures, lowering panel depth requirements and simplifying maintenance.
Get a Quick Quote for a Eaton FRN-R-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRN-R-60?
Enquire Now
FAQs
FRN-R-60 is a Class RK5 Bussmann fuse with ferrule-end connections, designed for standard RK5 fuse blocks and control panels. It fits common branch-circuit protection layouts, offers a 60 A rating, and uses a 3 in length with a 0.8 in square footprint. No special adapters are required for compatible holders.
FRN-R-60 provides an interrupting rating of 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc, supporting safe disconnection during high-energy faults. This current-limiting, dual-element device protects downstream equipment while limiting arc energy; it is suitable for motors, drives, and controls in industrial panels.
Yes. FRN-R-60 is a time-delay, dual-element, current-limiting fuse (Class RK5) that tolerates temporary inrush surges while still interrupting a sustained fault quickly. Its response time features 10 seconds at 500% overload, making it well-suited for equipment with brief startup transients.
FRN-R-60 measures 3 inches in length with a 0.8 inch width and height, and uses ferrule-end connections with standard packaging. It weighs about 0.1 lb, enabling easy replacement in typical fuse blocks and minimizing cabinet intrusion during maintenance.
FRN-R-60 carries CE marking and belongs to the RK5 class fuse family, ensuring regulatory alignment for European applications. For compliance planning, Eaton provides RoHS guidance via its RoHS search tool; always verify local regulatory requirements and site-specific standards when deploying in global facilities.
