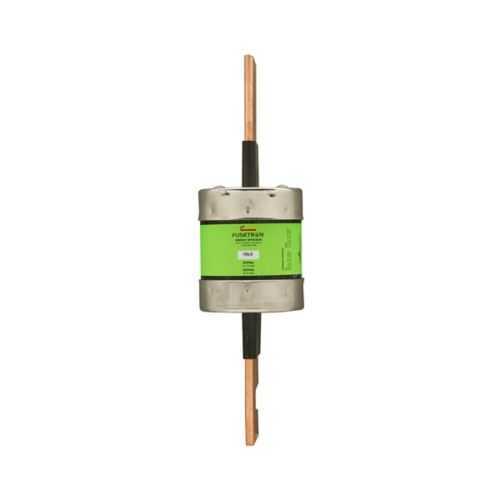

Eaton FRN-R-600 Fuse - Class RK5, 200 kAIC Rating
Part Number: FRN-R-600
Quick Summary
Eaton FRN-R-600 fuse provides reliable overcurrent protection for industrial control panels and machine circuits. When replacing aging protection devices, you need fast interruption, high current rating, and clear documentation. This Class RK5 time-delay, dual-element fuse delivers 600 A protection with a 200 kAIC interrupt rating at 250 Vac and 20 kAIC at 125 Vdc, helping minimize downtime and arc-flash risk. With a standard 10.38 in length, blade-end connections, and CE Mark, the FRN-R-600 supports straightforward integration into existing panels while meeting European and global compliance needs. Use it to improve uptime, reduce nuisance trips, and simplify procurement for power distribution and motor-control applications.
Product Information
Extended Description
FRN-R-600 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 600 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 250 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-600
UPC
051712507561
Product Length/Depth
10.38 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
3.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
600 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
10 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for fuses 70 to 600 amps No. 1020
Feature: Time-delay, dual-element design offers sustained protection during motor inrush and temporary overloads. Benefit: Reduces nuisance trips and protects windings, drives, and control electronics, improving uptime in automation lines. Application: Motor starters, drives, HVAC equipment, and CNC machines where controlled inrush is common. Feature: Current-limiting protection limits fault energy during a short circuit. Benefit: Minimizes arc flash potential and downstream component damage, preserving transformers, contactors, and wiring harnesses. Application: Main feeders and power distribution panels in industrial facilities.Feature: High interrupt rating of 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc. Benefit: Safe disconnection of large fault currents, reducing catastrophic failures and enabling fast service restoration. Application: Panelboards and branch-circuit protection in high-energy environments.Feature: Class RK5 with blade-end connections. Benefit: Standardized form factor enables quick retrofit and compatibility with existing Bussmann RK5 blocks, lowering installation time and stock complexity. Application: Retrofit projects and new panel builds where RK5 protection is specified.Feature: 600 A amperage rating with precise dimensions (10.38 in L, 0.81 in W/H) and 3.1 lb weight. Benefit: Predictable mechanical fit and straightforward handling for high-current applications. Application: Large-capacity DC and AC circuits in machine control and power distribution. Feature: CE Marked and standard packaging. Benefit: Compliance for European markets and easy sourcing through Bussmann catalogs, with reliable supply and documentation. Application: Global manufacturing lines needing certified, traceable protection devices.
Get a Quick Quote for a Eaton FRN-R-600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRN-R-600?
Enquire Now
FAQs
FRN-R-600 uses blade-end connections, a common RK5 fuse form factor compatible with Bussmann RK5 holders and standard control panels. It installs like-for-like in panels designed for 600 A class RK5 fuses, reducing retrofit complexity. Verify blade spacing and mounting clearance in your enclosure to ensure a secure, compliant fit during maintenance or replacement.
FRN-R-600 provides an interrupt rating of 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc. This high fault-current capability allows safe disconnection of large short-circuit currents, protecting downstream components like contactors, transformers, and wiring insulation. Use this rating to design for reliable protection in high-energy power distribution and motor-control environments.
Yes. The FRN-R-600 is a time-delay, dual-element fuse designed to tolerate motor inrush while still limiting fault current. This reduces nuisance tripping on startup and preserves motor windings, drives, and control electronics. It's well-suited for motor starters, drives, and CNC machinery where controlled inrush is expected.
The FRN-R-600 is CE Marked, aligning with European safety requirements and enabling use in global electrical panels. It is part of the Eaton Bussmann RK5 family, offering a documented, standards-aligned protection solution for panelboards, motor control centers, and power distribution blocks across diverse markets.
The FRN-R-600 improves uptime by reducing nuisance trips through time-delay operation, while its high interrupt rating minimizes downstream damage in fault events. Combined with standardized RK5 compatibility and documented performance, these factors lower maintenance costs, shorten downtime, and simplify spare-part inventories for large-scale automation projects.
