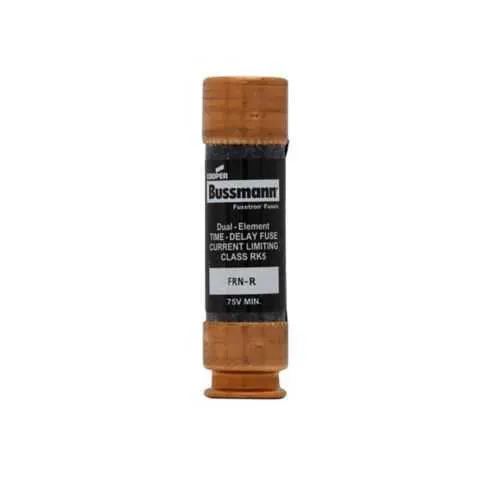

Eaton FRN-R-60ID Fuse - CE Marked
Part Number: FRN-R-60ID
Quick Summary
Eaton FRN-R-60ID fuse is a time-delay RK5 device designed to protect motor and branch circuits in industrial control panels. Engineers face nuisance trips and mismatched protection when selecting fuses for start-up loads, which drives unplanned downtime. This model delivers a dual-element, current-limiting solution with a 60 A rating and high interrupt ratings, helping you fit safe, reliable protections into standard assemblies. It’s CE marked and built to Class RK5 standards, ensuring compatibility with common panel architectures while meeting European safety expectations. By choosing this fuse, you gain predictable performance, reduced maintenance, and simplified procurement across your electrical protection strategy, while supporting regulatory compliance and efficient asset management.
Product Information
Extended Description
FRN-R-60ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 60 A, indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-60ID
UPC
051712204477
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.5 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
60 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
10 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
Feature: Time-delay, dual-element design. Business Impact: Reduces nuisance trips during motor start-up and heavy inrush, while providing dependable fault protection. Application: Ideal for motor control centers and branch circuits in industrial panels. Feature: 60 A rating with high interrupt capability. Business Impact: Protects wiring and components in high-current faults with minimal damage, enabling quicker recovery. Application: Large equipment feeders and machine control circuits up to 60 A. Feature: Current-limiting with RK5 class protection. Business Impact: Limits arc energy and short-circuit damage, improving safety and downstream reliability. Application: Standardized protection in control panels using Bussmann RK5 fuses. Feature: Ferrule end connections and compact form factor. Business Impact: Easy installation in existing RK5 fuse blocks with minimal hardware changes, reducing commissioning time. Application: Retrofit projects and new builds seeking straightforward replacement. Feature: CE Marked and RoHS-linked support. Business Impact: Ensures regulatory compliance for European markets and aligns with sustainable manufacturing practices. Application: Global deployments with expected safety and environmental standards.
Get a Quick Quote for a Eaton FRN-R-60ID
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRN-R-60ID?
Enquire Now
FAQs
The FRN-R-60ID uses ferrule end connections and a standard RK5 form factor. Mount the fuse into a compatible Bussmann RK5 holder, ensuring the ferrule terminals are clean and fully seated. Verify the circuit is de-energized, then replace any existing fuse with the new 60 A FRN-R-60ID to maintain proper protection and prompt fault indication if used with an indicator option.
FRN-R-60ID is a 60 A fuse with voltages of 250 Vac and 125 Vdc. It offers an interrupt rating of 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc, a response time of about 10 seconds at 500% overload, and a dual-element time-delay design for controlled fault energy.
Yes. The time-delay, dual-element RK5 fuse is well-suited for motors and motor-start loads, providing inrush tolerance while protecting downstream wiring. Its current-limiting features and high interrupt ratings help minimize arc energy and equipment damage during faults, supporting smoother startup sequences and reduced downtime.
The FRN-R-60ID carries CE Marking, indicating conformity with European safety standards. Its RK5 class designation aligns with common industry protection schemes for branch circuits, and its RoHS-inspection support is accessible through Eaton’s RoHS resources to help verify material compliance in your European and global builds.
Using FRN-R-60ID improves uptime by reducing nuisance trips during start-up, while delivering robust protection against short-circuit events. Its standardized RK5 form factor simplifies part sourcing and replacement, lowers maintenance costs, and supports regulatory compliance across cross-functional teams involved in panel fabrication and asset management.
