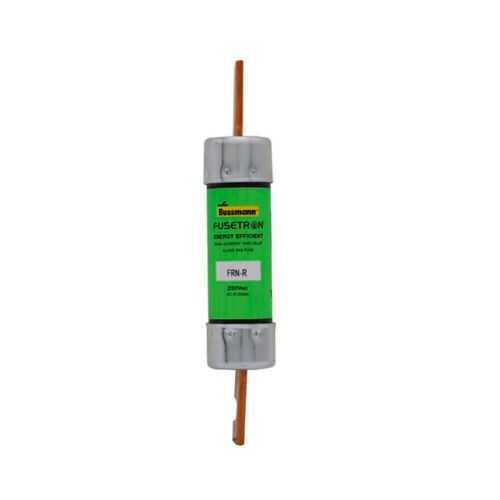

Eaton FRN-R-70 Fuse - Class RK5, 70 A, 200 kAIC
Part Number: FRN-R-70
Quick Summary
The Eaton FRN-R-70 fuse provides reliable time-delay protection for motor circuits and panel feeders. Engineers frequently battle nuisance trips during startup or surge conditions, which disrupt production and drive up costs. This device is CE marked and part of the RK5 family, offering a robust current-limiting rating up to 200 kAIC and a 70 A amperage rating. Designed for panel builders and machine integrators, it wires quickly via blade-end connections, and its non-indicating design supports compact, service-friendly installations. This combination reduces downtime and supports compliant, reliable electrical protection in industrial environments.
Product Information
Extended Description
FRN-R-70 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 70 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-70
UPC
051712507400
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.5 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
70 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
10 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for fuses 70 to 600 amps No. 1020
Feature: Time-delay, dual-element design. Benefit: Handles motor inrush and startup surges without nuisance trips, improving production uptime in conveyors, pumps, and CNC systems. Application: Motor control circuits in industrial panels. Feature: High interrupt rating of 200 kAIC at 250 Vac. Benefit: Safely clears high-energy faults, protecting downstream equipment and reducing repair costs after faults. Application: Heavy startup loads and fault-prone feeders. Feature: Non-indicating fuse. Benefit: Simplifies maintenance in compact enclosures while requiring remote status monitoring to verify health, reducing panel space while ensuring protection remains visible to operators. Application: Control panels with limited space. Feature: Blade-end x blade-end connection. Benefit: Quick, reliable installation with standard Bussmann RK5 fuses, minimizing assembly time and training needs. Application: Retrofit projects and new equipment in machine control panels. Feature: Class RK5 and CE Mark compliance. Benefit: Industry-standard protection you can trust in global markets, supporting conformity and safe operation. Application: OEM panels, machine builders, and electrical contractors seeking proven protection for high-demand environments.
