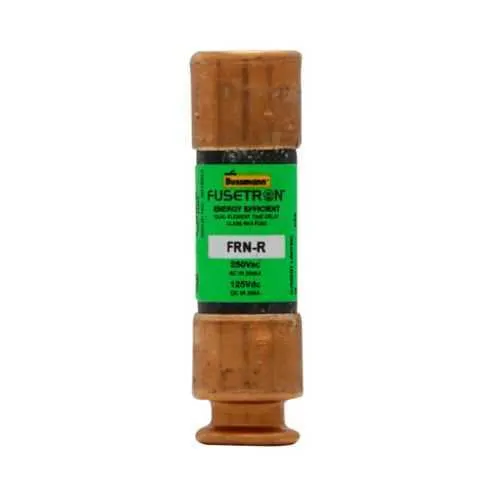

Eaton FRN-R-9 fuse - RK5 Class Time-Delay CE Marked
Part Number: FRN-R-9
Quick Summary
Eaton FRN-R-9 fuse protects control panels and motor circuits with time-delay, dual-element protection. This design helps prevent nuisance trips during motor start-up and inrush events common in industrial environments. CE marking and RoHS considerations ensure compliance with EU safety standards, while the Bussmann RK5 family delivers reliable coordination with other protective devices. Dual-element current-limiting action balances fast response to faults with tolerance for startup surges, helping extend equipment life and reduce downtime. By selecting this fuse, engineers gain predictable protection, easier field replacement in standard RK5 assemblies, and a path toward more consistent maintenance planning and lifecycle cost control. This combination is well-suited for OEMs, integrators, and maintenance teams seeking dependable protection with straightforward sourcing.
Product Information
Extended Description
FRN-R-9 Eaton: Eaton Bussmann Series Class RK5 fuse, FRN-R, time-delay, dual-element, current limiting fuse, 9 A, non-indicating fuse, interrupting rating of 200 kA at 250 Vac and 20 kA at 125 Vdc
Product Name
Eaton Bussmann series FRN-R fuse
Catalog Number
FRN-R-9
UPC
051712507271
EAN
5027590427579
Product Length/Depth
2 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.055 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
9 A
Interrupt rating
20 kAIC at 125 Vdc 200 kAIC at 250 Vac
Response time
8 sec at 500%
Voltage rating
250 Vac, 125 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series Fusetron FRN-R RK5 fuse data sheet for up to 60 amps No. 1019
Feature: Time-delay, dual-element design; Business Impact: minimizes nuisance trips from motor inrush and switching surges; Application: motor control centers, pumps, conveyors. The time-delay characteristic allows controlled response to startup currents, reducing unnecessary outages while still delivering robust fault protection. Feature: High interrupt rating; Business Impact: protects upstream equipment in high-current faults; Application: power distribution and motor feeders in manufacturing environments. With 200 kAIC at 250 Vac and 20 kAIC at 125 Vdc, this fuse maintains system integrity during fault events and supports downstream protection schemes. Feature: Class RK5, current-limiting, and dual-element engineering; Business Impact: enables selective coordination and faster clearing of faults; Application: complex protection schemes in control panels. Feature: Compact footprint and ferrule end connections; Business Impact: simplifies retrofits and drop-in replacements in standard RK5 blocks; Application: OEM panel builds and serviceable equipment. Feature: CE marking and RoHS-aligned compliance; Business Impact: ensures regulatory readiness and risk mitigation; Application: procurement across EU and global sites, with straightforward sourcing and compliance.
