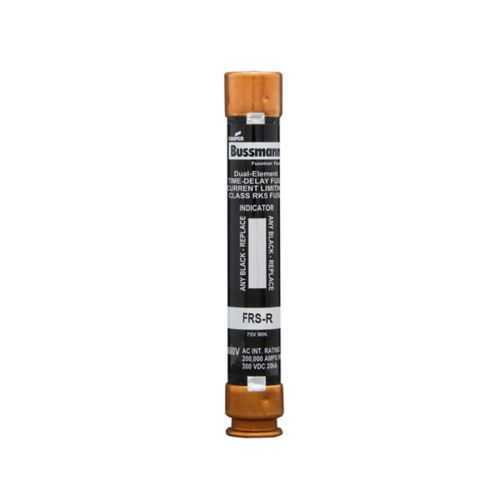

Eaton FRS-R-10ID Fuse - RK5 Time-Delay 200 kAIC at 600 Vac
Part Number: FRS-R-10ID
Quick Summary
The Eaton FRS-R-10ID fuse is a time-delay, dual-element protection device designed for industrial control panels. It minimizes nuisance trips during motor startups while guarding downstream circuits from short circuits and overloads. With CE marking and Class RK5 topology, it supports European compliance and standardized protection across the control gear, and it is available as an indicating fuse. This 10 A unit offers a robust interruption rating of 200 kAIC at 600 Vac, helping facilities standardize protection while reducing downtime and maintenance costs. This product line is part of Eaton Bussmann’s versatile RK5 family, offering compatibility with common fuse blocks and fast procurement for project timelines.
Product Information
Extended Description
FRS-R-10ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 10 A, indicating fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-10ID
UPC
051712204545
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
10 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
