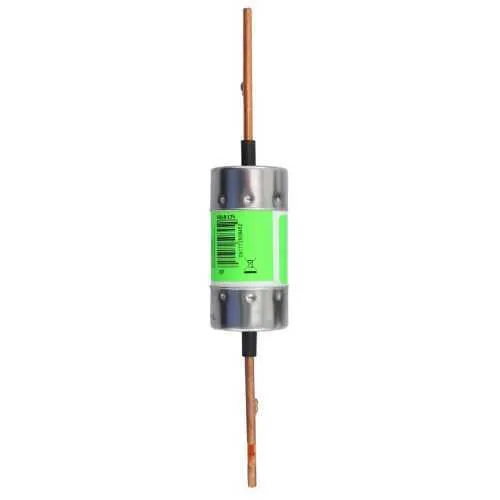

Eaton FRS-R-125 Fuse - Class RK5, 200 kAIC, 600 Vac
Part Number: FRS-R-125
Quick Summary
The Eaton FRS-R-125 fuse provides time-delay, dual-element overcurrent protection for industrial controls. In compact control panels, nuisance trips and insufficient interrupt ratings can stall production and complicate safety compliance. This CE-marked Class RK5 fuse delivers reliable protection with a 200 kAIC interrupt rating at 600 Vac and 20 kAIC at 300 Vdc, supporting selective coordination in demanding power circuits. Designed for blade-end connections and non-indicating operation, it enables straightforward installation and maintenance in limited spaces. Its time-delay behavior helps prevent nuisance trips from brief surges, reducing downtime while maintaining critical circuit protection.
Product Information
Extended Description
FRS-R-125 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 125 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-125
UPC
051712508452
Product Length/Depth
9.63 in
Product Height
1.6 in
Product Width
1.6 in
Product Weight
1.05 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
125 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R 65-600 A fuse data sheet no. 1018
Feature: Time-delay, dual-element, current-limiting fuse. Business impact: Reduces nuisance tripping and improves protection coordination in evolving automation lines. Application: Motor controllers and branch circuits in process automation. The durable delay allows momentary overloads to pass without sacrificing protection for sustained faults, improving machine uptime. Feature: 125 A amperage rating and 200 kAIC interrupt capability at 600 Vac. Business impact: Supports high-energy fault interruption while minimizing equipment damage. Application: Heavy machinery, conveyors, and power distribution in manufacturing cells. Feature: Class RK5 and Blade end x blade end connection. Business impact: Standardized form factor simplifies replacement in retrofit projects and reduces spare part variance. Application: Panelboards and control cabinets with Bussmann RK5 fuses. Feature: Time-to-protect specs—10 seconds at 500% overload. Business impact: Clear fault response expectations improve safety checks and maintenance planning. Application: Routine testing and routine protection assessments in control architectures. Feature: Non-indicating fuse for clean panel presentation. Business impact: Easier visual inspection and reduced false alarms in diagnostic workflows. Application: Industrial automation cabinets with strict space and visibility considerations. Feature: CE Marked compliance with industry safety expectations. Business impact: Facilitates regulatory alignment and faster procurement cycles for international projects. Application: Global machinery deployments and multi-site installations.
