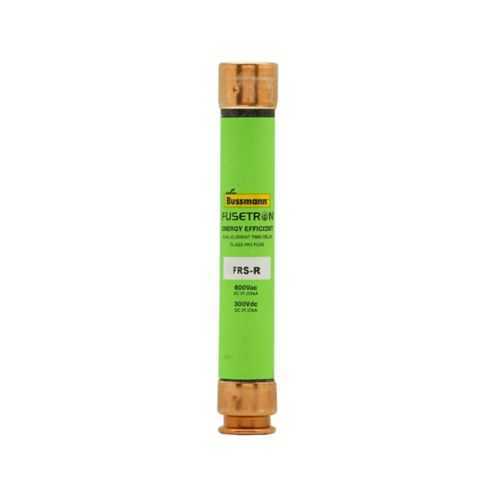

Eaton FRS-R-15 Fuse - Class RK5, 200 kAIC @ 600 Vac
Part Number: FRS-R-15
Quick Summary
FRS-R-15 fuse provides time-delay, current-limiting protection for motor, power, and control circuits in industrial equipment. Plants often struggle with nuisance trips and compatibility gaps with legacy protection, causing unscheduled downtime; this dual-element design mitigates surge events and improves selective coordination. It is CE marked, supporting EU safety compliance, and Eaton provides RoHS verification through its online tool for material compliance. As part of the Bussmann Series, the FRS-R-15 mounts quickly with ferrule-end connections and fits standard RK5 configurations, delivering reliable protection with minimal maintenance for production lines and control panels. It is also designed for production lines and equipment control panels.
Product Information
Extended Description
FRS-R-15 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 15 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-15
UPC
051712508308
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.165 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
15 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature: Time-delay, dual-element construction delivers current-limiting protection that tolerates short surges without tripping during normal operation. Business Impact: reduces nuisance trips, extends equipment life, and improves system uptime. Application: motor drives, conveyors, and power distribution circuits in manufacturing environments. Feature: Very high interrupt rating of 200 kAIC at 600 Vac (20 kAIC at 300 Vdc) provides robust fault-current withstand. Business Impact: safer startups, minimized wiring and component damage, and enhanced protection for high-demand machinery. Application: machine controls, gearmotors, and industrial automation panels. Feature: Ferrule-end x ferrule-end connections and a 5 in body simplify mounting in standard RK5 panels. Business Impact: faster installs, easy field replacement, and better serviceability. Application: control panels, switchgear, and equipment enclosures in industrial facilities. Feature: 15 A amperage with a non-indicating fuse indicator reduces unnecessary signaling in dense panel layouts. Business Impact: cleaner panel aesthetics and straightforward circuit protection selection. Application: assigned protection for critical loads where visual indication is unnecessary. Feature: CE marking supports EU regulatory compliance; RoHS verification tooling helps confirm material compliance where required. Business Impact: smoother audits, improved supplier transparency, and broader market access. Application: European projects and regulated manufacturing environments. Feature: Class RK5 compatibility within Eaton Bussmann Series ensures consistent protection strategy. Business Impact: streamlined spare parts management and coordinated protection schemes across facilities. Application: industrial automation networks, motor control centers, and distributed power systems.
